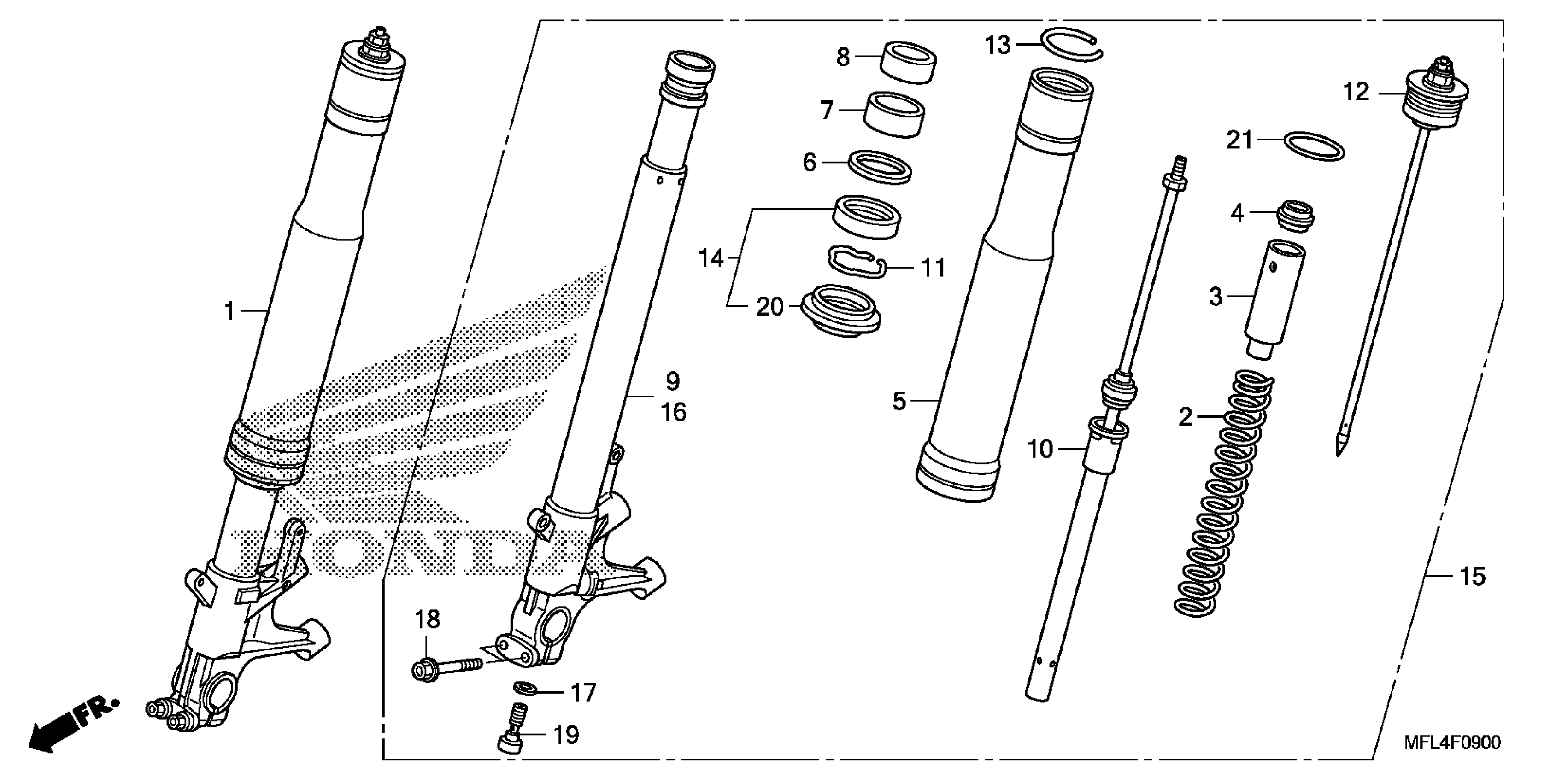

Honda CBR1000RR4A (11) MOTORCYCLE, JPN, VIN# JH2SC59J-BK300001 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (COO)

51400-MFL-307

$1,118.90

2

SPRING, FR. FORK

51401-MFL-003

$78.66

3

COLLAR, SPRING

51403-MFJ-D01

$11.45

4

STOPPER, SPRING SEAT

51406-MW4-003

$7.90

5

TUBE (OUTER)

51410-MFL-831

Unavailable

6

RING, BACK-UP

51412-MEL-003

$5.58

7

BUSH, GUIDE

51414-MFL-D21

$7.56

8

BUSH, SLIDER

51415-MFN-D01

$31.52

9

PIPE, R. SLIDE

51425-MFL-003

$365.90

10

DAMPER, FR.

51430-MFL-D21

Unavailable

11

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

12

BOLT, FR. FORK

51450-MFL-T31

$92.11

13

RING, STOPPER

51455-MW4-003

$12.19

14

SEAL SET, FR. FORK

51490-MFL-003

$19.85

15

FORK ASSY., L. FR. (COO)

51500-MFL-307

$1,118.90

16

PIPE, L. SLIDE

51525-MFL-003

Unavailable

17

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

18

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

19

BOLT, SOCKET (10X35)

90126-MR7-003

$16.38

20

DUST SEAL This part replaces 91254-MEJ-003.

91254-MEJ-013

$12.93

20

DUST SEAL

91254-MEJ-013

$12.93

21

O-RING (42.2X2.4)

91258-GF4-003

$5.90
