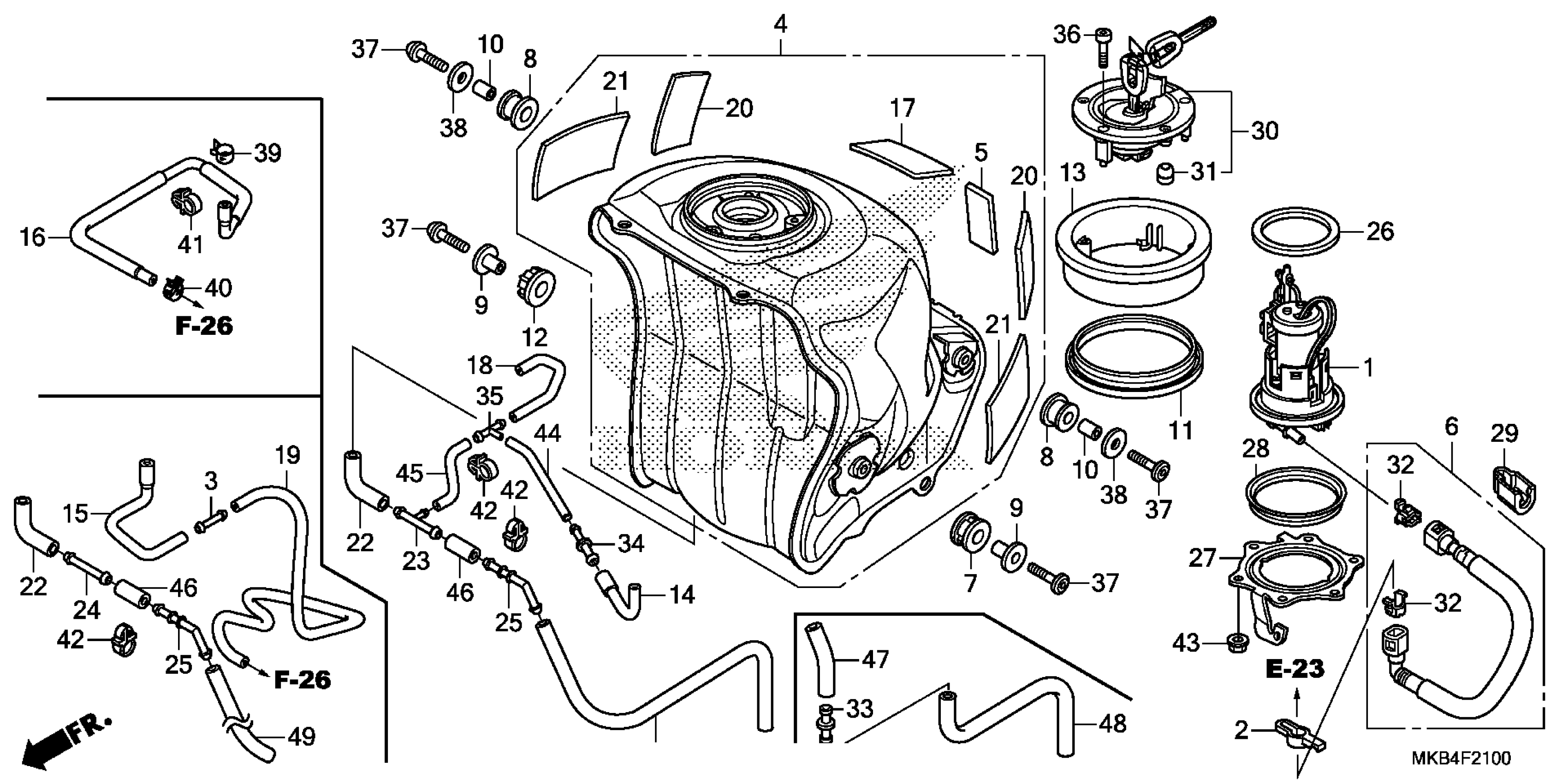

Honda CBR1000RR3AC (15) MOTORCYCLE, JPN, VIN# JH2SC59J-FK400001 TO JH2SC59J-FK499999 FUEL TANK@FUEL PUMP Diagram

PUMP UNIT, FUEL This part replaces 16700-MFL-013.

16700-MFL-023

$742.87

DAMPER, CONNECTOR

16719-MFJ-D00

$2.92

JOINT, FUEL TUBE

16958-GJ6-000

$4.53

TANK SET, FUEL

17500-MGP-D61

$1,101.25

TAPE, TANK GUARD

17506-GCS-300

$3.31

HOSE B, FUEL FEED

17526-MFL-003

$54.85

RUBBER, L. FR. TANK MOUNTING

17533-MFL-000

$5.16

RUBBER, RR. TANK MOUNTING

17534-MFL-000

$4.72

COLLAR, FR. TANK SETTING

17535-MFL-000

$3.47

COLLAR, RR. TANK SETTING

17537-MFL-000

$2.33

SEAL, FUEL TANK

17543-MEE-000

$7.32

RUBBER, R. FR. TANK MOUNTING

17545-MFL-000

$3.12

SPACER, FUEL FILLER

17545-MGP-D60

$9.36

TUBE A, BREATHER

17555-MFL-860

$10.25

FILM A, PROTECTOR

17556-MEE-300

$22.38

TUBE B, BREATHER

17556-MFL-860

$13.38

CUSHION, FUEL TANK

17558-MEE-940

$16.25

CUSHION, FUEL TANK

17558-MGP-D00

$19.82

TUBE, DRAIN

17559-MFL-000

$5.79

JOINT (2WAY)

17560-MFL-770

$3.30

JOINT (TWO-WAY)

17561-MFL-000

$3.38

GASKET, FUEL PUMP

17574-MFJ-D00

$25.58

PLATE, FUEL PUMP SETTING

17575-MFL-000

$8.33

SEAL (OUTER)

17576-MFJ-D00

$5.89

COVER, FUEL CONNECTOR

17580-MFJ-D00

$5.16

CAP, FUEL FILLER

17620-MGP-D63

Unavailable

CAP COMP This part replaces 17620-MJS-J31.

17620-MJS-J33

$243.95

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$5.14

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.40

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.26

BOLT, SPECIAL (6X25)

90115-MAS-E00

$3.65

WASHER (6.5X25X1.5)

90404-680-000

$4.07

CLIP B, CABLE (9MM BLACK)

90682-959-661

$3.04

NUT, FLANGE (6MM)

94050-06080

$1.49

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91
