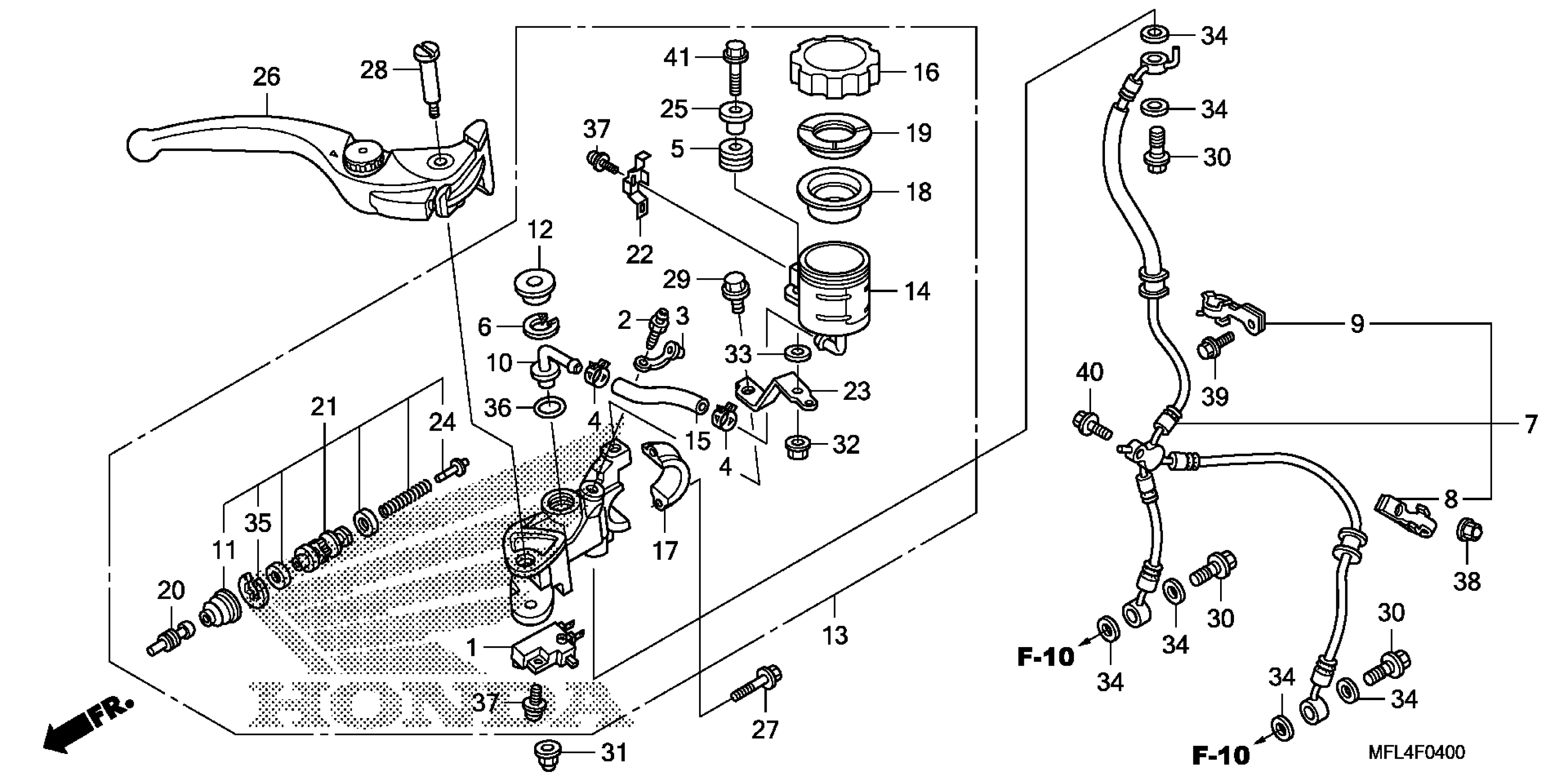

Honda CBR1000RR3AC (08) HURRICANE 1000, JPN, VIN# JH2SC595-8M000001 TO JH2SC595-8M019999 FRONT BRAKE MASTER CYLINDER (CBR1000RR) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MEL-003

$13.97

2

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

3

CAP, BLEEDER

43353-461-771

Unavailable

4

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

5

RUBBER, OIL CUP

43516-MCJ-006

$4.29

6

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.65

7

HOSE, FR. BRAKE

45125-MFL-013

$102.16

8

CLAMP A, FR. BRAKE HOSE

45158-MFL-D00

$3.37

8

CLAMP A, FR. BRAKE HOSE This part replaces 45158-MFL-000.

45158-MFL-D00

$3.37

9

CLAMP B, FR. BRAKE HOSE

45159-MFL-000

$3.44

10

CONNECTOR, MASTER CYLINDER (NISSIN)

45503-KV3-006

$8.65

11

BOOT

45504-MCF-006

$10.31

12

COVER, DUST (NISSIN)

45505-KV3-006

$3.97

13

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MFL-006

$248.68

14

CUP, OIL

45511-MEL-D21

$9.05

15

HOSE, MASTER CYLINDER OIL

45512-MEL-006

$5.14

16

CAP, OIL CUP

45513-MEL-D21

$16.92

17

HOLDER, MASTER CYLINDER

45517-MFL-006

$11.63

18

DIAPHRAGM

45520-300-000

$8.34

19

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

20

ROD, PUSH

45525-MEL-016

$13.09

21

MASTER CYLINDER SET

45530-MEL-006

$49.34

22

PLATE, STOP

45535-MR8-901

$5.20

23

STAY, FR. MASTER CYLINDER

45550-MEL-006

$6.35

24

GUIDE, SPRING

46140-MEL-006

$4.10

25

COLLAR (6.3X13)

50324-425-010

$4.51

26

LEVER ASSY., R. HANDLE

53170-MFL-006

$41.02

27

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

28

BOLT, HANDLE LEVER

90114-MCF-006

$5.56

29

BOLT, FLANGE (6X12)

90117-MR7-000

$2.75

30

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

31

NUT, CAP (6MM)

90201-415-000

Unavailable

32

NUT, U (6MM)

90301-MG3-000

$6.60

33

WASHER (6X16)

90473-147-000

$1.28

34

WASHER, OIL BOLT

90545-300-000

$5.79

35

CIRCLIP

90651-MCF-006

$2.09

36

O-RING (14.8X2.4)

91212-422-006

$2.37

37

SCREW-WASHER (4X12)

93893-04012-07

$1.32

37

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32

38

NUT, CAP (6MM)

94021-06070-0S

$1.60

39

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.79

40

BOLT, FLANGE (6X18)

96001-06018-07

$1.16

41

BOLT, FLANGE (6X28)

96300-06028-07

$1.66
