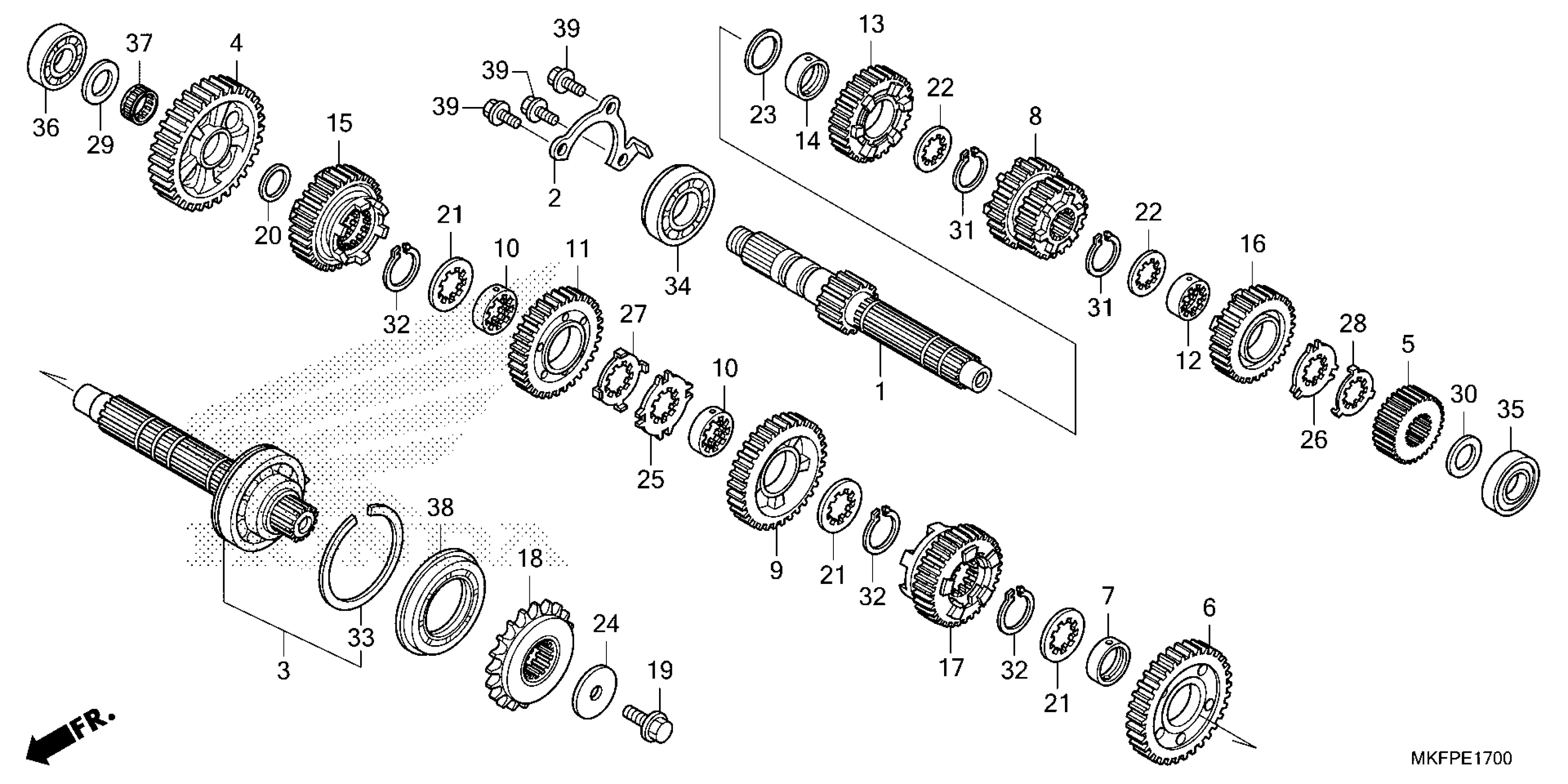

Honda CBR1000RR2AC (23) MOTORCYCLE, JPN, VIN# JH2SC771-PK600001 TO JH2SC771-PK699999 TRANSMISSION Diagram

MAINSHAFT (14T)

23211-MKF-D70

$172.26

PLATE, BEARING SETTING

23212-MFL-000

$7.89

COUNTERSHAFT

23220-MKF-D70

$200.69

GEAR, COUNTERSHAFT FIRST (32T)

23421-MKF-D40

$124.15

GEAR, MAINSHAFT SECOND (18T)

23431-MKF-D70

$61.54

GEAR, COUNTERSHAFT SECOND (32T)

23441-MKF-D40

$124.15

COLLAR (30X9.5)

23442-MCJ-000

$12.84

GEAR, MAINSHAFT THIRD & FOURTH (22T/24T)

23451-MKF-D70

$150.16

GEAR, COUNTERSHAFT THIRD (33T)

23461-MKF-D70

$124.15

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

GEAR, COUNTERSHAFT FOURTH (32T)

23481-MKF-D70

$121.93

COLLAR, SPLINE (28X13.5)

23482-MR7-000

$30.92

GEAR, MAINSHAFT FIFTH (28T)

23491-MKF-D40

$115.89

COLLAR (28X13)

23495-MM5-000

$23.00

GEAR, COUNTERSHAFT FIFTH (34T)

23501-MKF-D40

$133.13

GEAR, MAINSHAFT SIXTH (29T)

23511-MKF-D40

$115.89

GEAR, COUNTERSHAFT SIXTH (33T)

23521-MKF-D40

$139.15

SPROCKET, DRIVE (16T)

23801-MEE-D00

$57.74

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

WASHER, THRUST (24MM)

90402-HA5-000

$3.67

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

WASHER, THRUST (28MM)

90458-729-920

$5.34

WASHER (10.2MM)

90459-438-000

$5.83

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

WASHER, SPLINE (28MM)

90463-MCJ-000

$5.56

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

WASHER, LOCK (28MM)

90464-MCJ-000

$5.56

SHIM J, FINAL REDUCTION THIRD GEAR (2.0MM)

90469-759-000

$6.77

WASHER, THRUST (20MM)

90554-MEL-000

$1.92

CIRCLIP (28MM)

90603-MN4-000

$4.11

CIRCLIP (30MM)

90604-MM5-000

$4.48

RING, SNAP (72MM)

90605-MM5-000

$9.05

BEARING, RADIAL BALL (28X62X16)

91001-MFL-003

$19.84

BEARING, SPECIAL (20X47X15.5)

91002-MFL-003

$21.70

BEARING, SPECIAL (20X52X15)

91003-MFL-003

$18.70

BEARING, NEEDLE (24X28X10)

91026-MEL-003

$10.87

OIL SEAL (45X72X8)

91207-MAT-003

$17.77

BOLT, FLANGE (6X14) (10.9)

90037-RYX-010

$2.90
