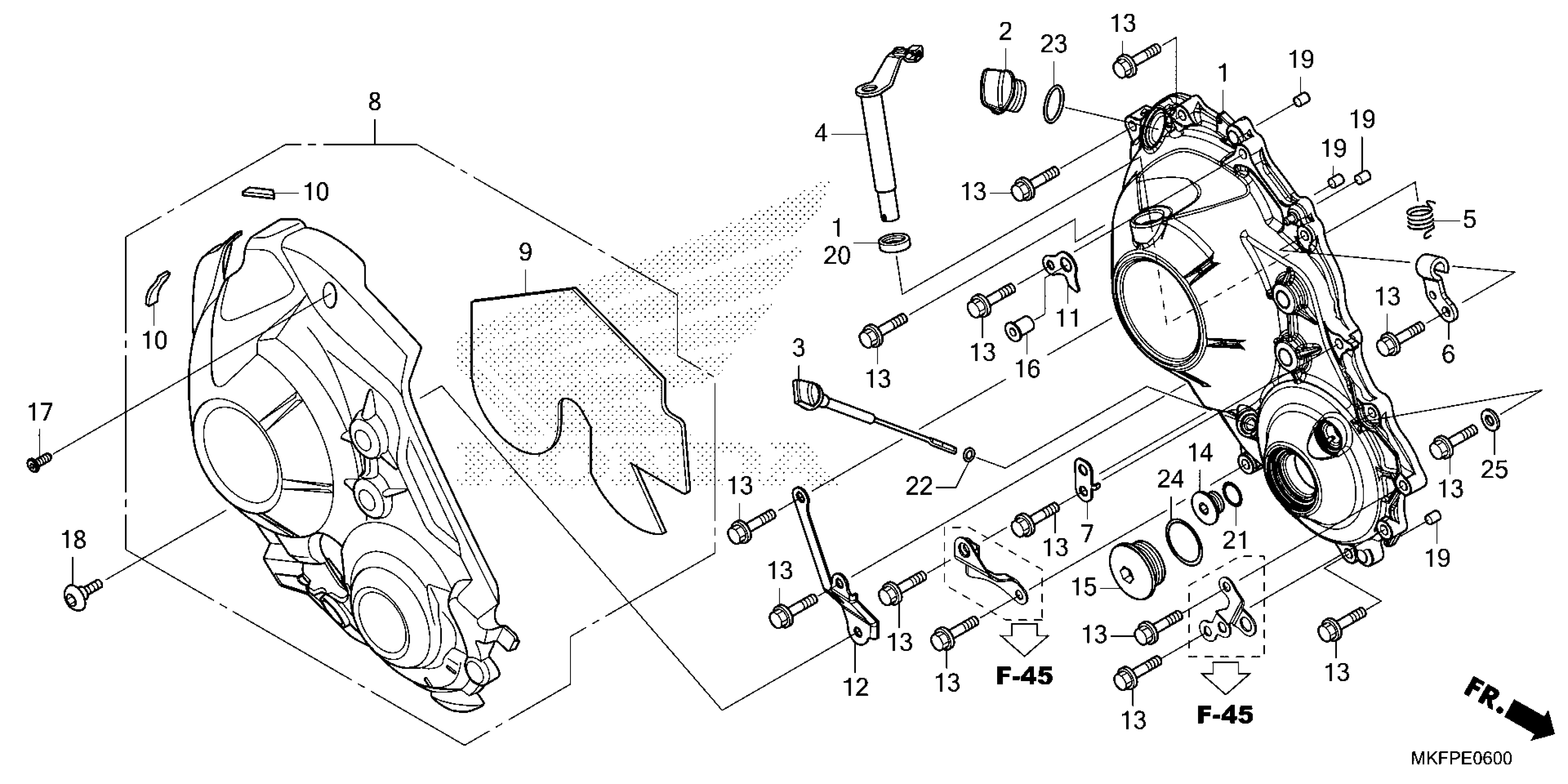

Honda CBR1000RR2AC (23) MOTORCYCLE, JPN, VIN# JH2SC771-PK600001 TO JH2SC771-PK699999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MKF-A00

$319.44

CAP, OIL FILLER

15611-KA4-710

$14.40

DIPSTICK, OIL

15650-MKF-D40

$17.98

LEVER, CLUTCH

22810-MKF-D40

$59.00

SPRING, CLUTCH LEVER

22815-MFL-000

$2.92

RECEIVER, CLUTCH CABLE

22821-MKF-D40

$5.66

STAY, HARNESS CLIP

32157-MFJ-D00

$3.31

COVER, R. RR. (LOWER)

64700-MKF-A20

$48.76

MAT, R. RR. COVER (LOWER)

64702-MKF-A20

$13.28

RUBBER A, R. RR. COVER (LOWER)

64703-MFL-700

$1.49

STAY, R. RR. COVER (LOWER)

64711-MKF-A20

$3.98

STAY C, R. RR. COVER (LOWER)

64713-MFL-700

$12.13

BOLT, FLANGE (6X28)

90006-MFN-D00

$2.38

CAP (14MM)

90084-MKF-D40

$12.10

CAP (30MM)

90087-MKF-D40

$13.96

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

BOLT, SPECIAL (5X14)

90117-MKF-D40

$2.54

SCREW, SPECIAL (6X14)

90118-MJK-N20

$2.70

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (13.8X2.5)

91303-377-000

$3.42

O-RING (6.5X2.2) (ARAI)

91303-MJ0-003

$4.06

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.92

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92
