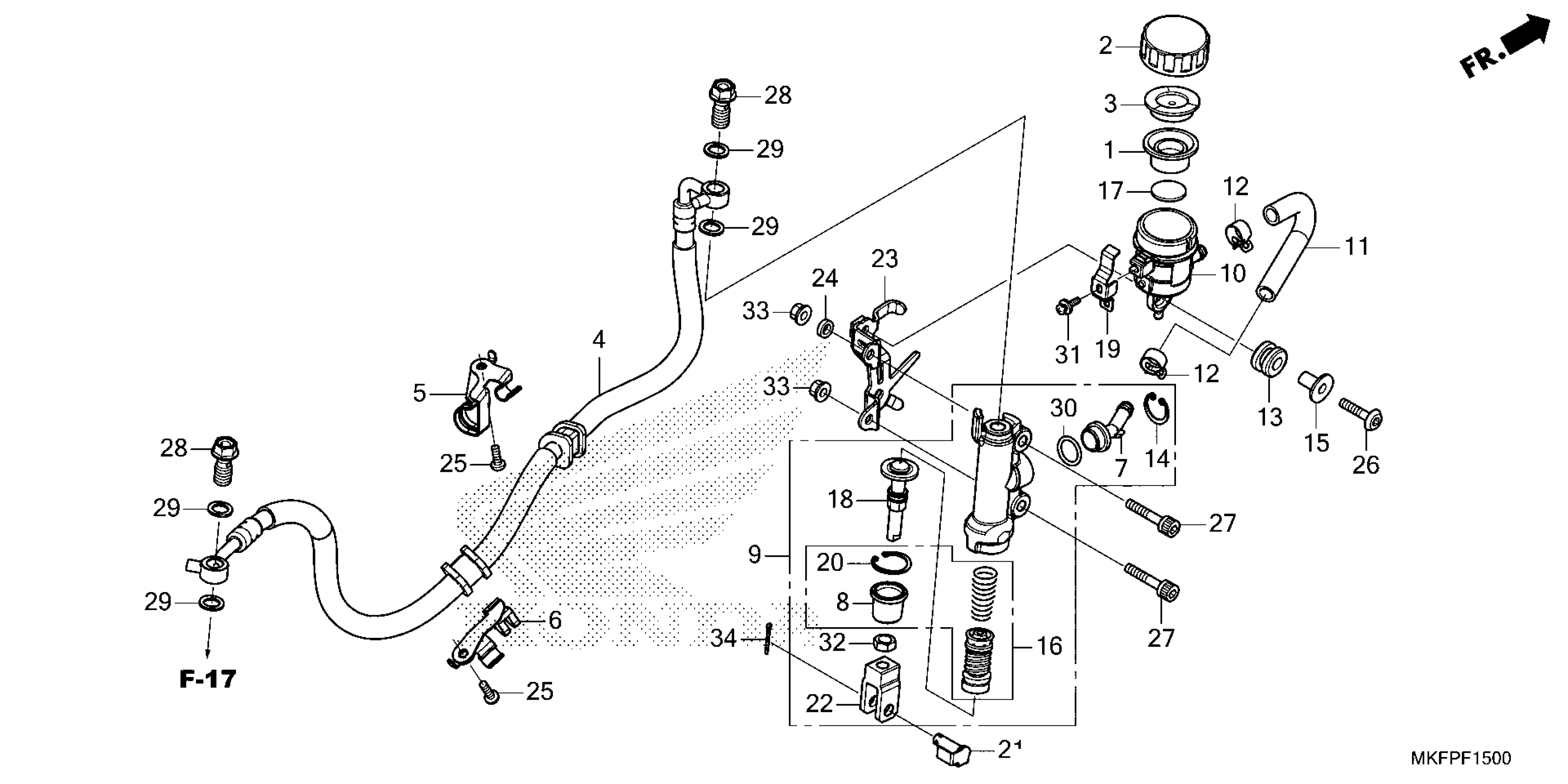

Honda CBR1000RR2AC (23) MOTORCYCLE, JPN, VIN# JH2SC771-PK600001 TO JH2SC771-PK699999 REAR BRAKE MASTER CYLINDER (1) Diagram

DIAPHRAGM (NISSIN)

22888-MR7-006

$15.17

CAP, OIL CUP

43513-MFL-671

$39.79

PLATE, DIAPHRAGM (NISSIN)

22890-MR7-006

$11.64

HOSE, RR. BRAKE

43310-MKF-A21

$66.67

CLAMP A, RR. BRAKE HOSE

43317-MKF-D40

$7.61

CLAMP B, RR. BRAKE HOSE

43318-MKF-D40

$7.61

CONNECTOR, MASTER CYLINDER

43503-MFL-006

$6.23

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MKF-D41

$192.41

CUP, OIL

43511-MFL-006

$21.05

HOSE, RR. MASTER CYLINDER

43512-MFL-006

$11.08

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.48

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.81

COLLAR (6.3X14)

43517-MFL-880

$3.67

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

FLOAT

43523-MFL-006

$3.13

ROD, PUSH

43530-MM5-006

$27.69

PLATE, STOP

45535-MR8-901

$5.44

CIRCLIP

46182-MEL-D21

$1.93

PIN, BRAKE ROD

46503-MFL-000

$13.26

JOINT, BRAKE ROD

46504-MFL-000

$13.13

STAY, RR. MASTER CUP

50608-MKF-D40

$12.00

COLLAR (6.5X11X3)

50618-KE8-000

$2.75

SCREW, PAN (5X15)

90113-K40-F00

$2.70

BOLT, SPECIAL (6X25)

90115-KTB-000

$2.23

BOLT, SOCKET (6X32)

90128-MFL-000

$2.11

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49
