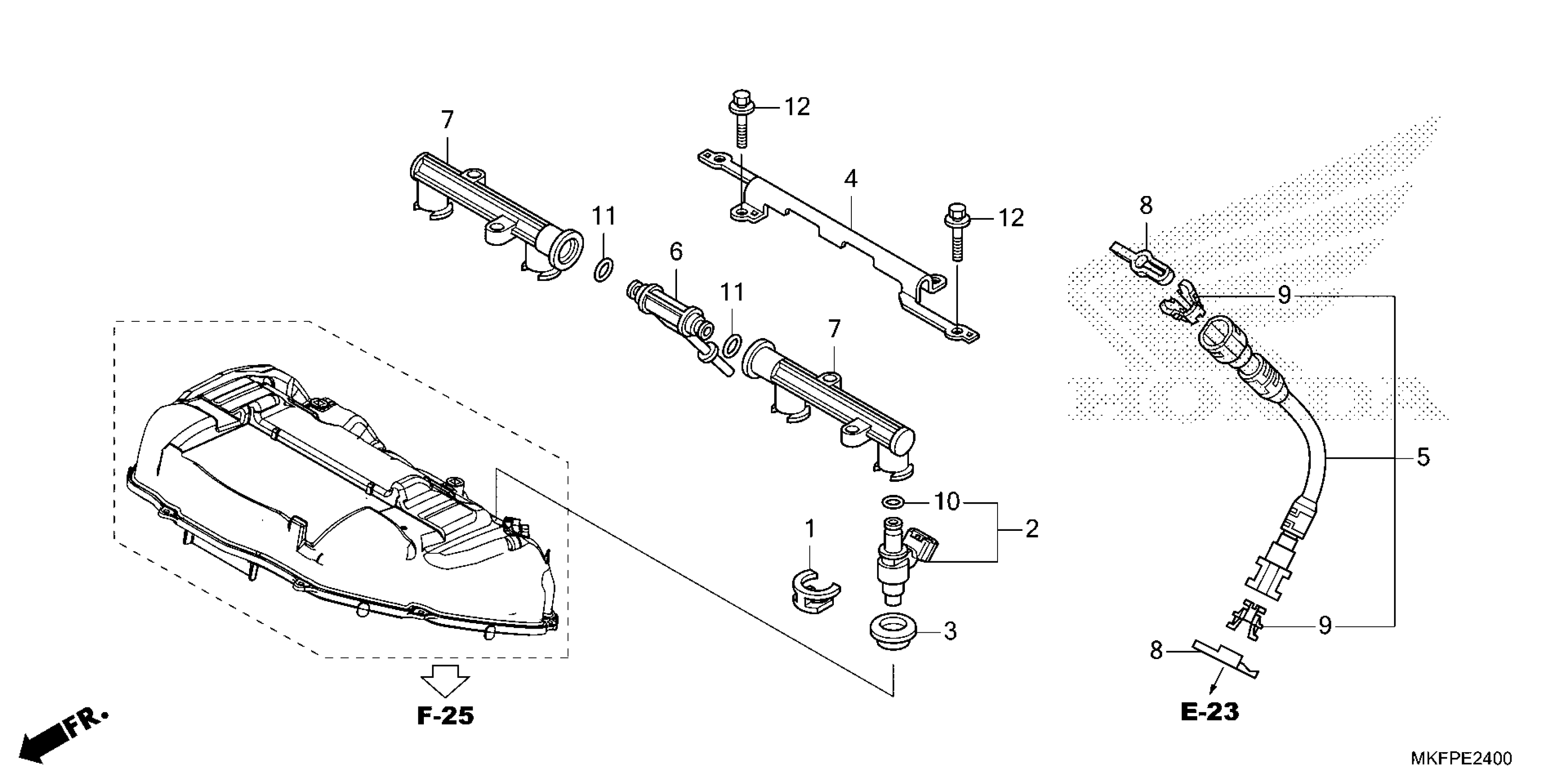

Honda CBR1000RR2AC (23) MOTORCYCLE, JPN, VIN# JH2SC771-PK600001 TO JH2SC771-PK699999 FUEL INJECTOR Diagram

#

Description
Price

1

CLIP, INJECTOR

16451-MFL-000

$2.97

2

INJECTOR ASSY., FUEL

16460-MFL-003

$126.87

3

SEAL RING, INJECTOR

16472-MFJ-D00

$3.06

4

PLATE, INJECTOR

16501-MFL-000

$11.90

5

HOSE A, FUEL FEED

16527-MFL-003

$72.16

6

T-JOINT, FUEL

16630-MFJ-D00

$22.13

7

PIPE, FUEL

16640-MFL-000

$42.31

8

DAMPER, CONNECTOR

16719-MFJ-D00

$2.92

9

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.40

10

O-RING (7.8X1.9)

91301-P7A-004

$3.35

11

O-RING (7.47X3.6)

91301-PLC-000

$3.11

12

BOLT-WASHER (5X20)

93401-05020-00

$1.49
