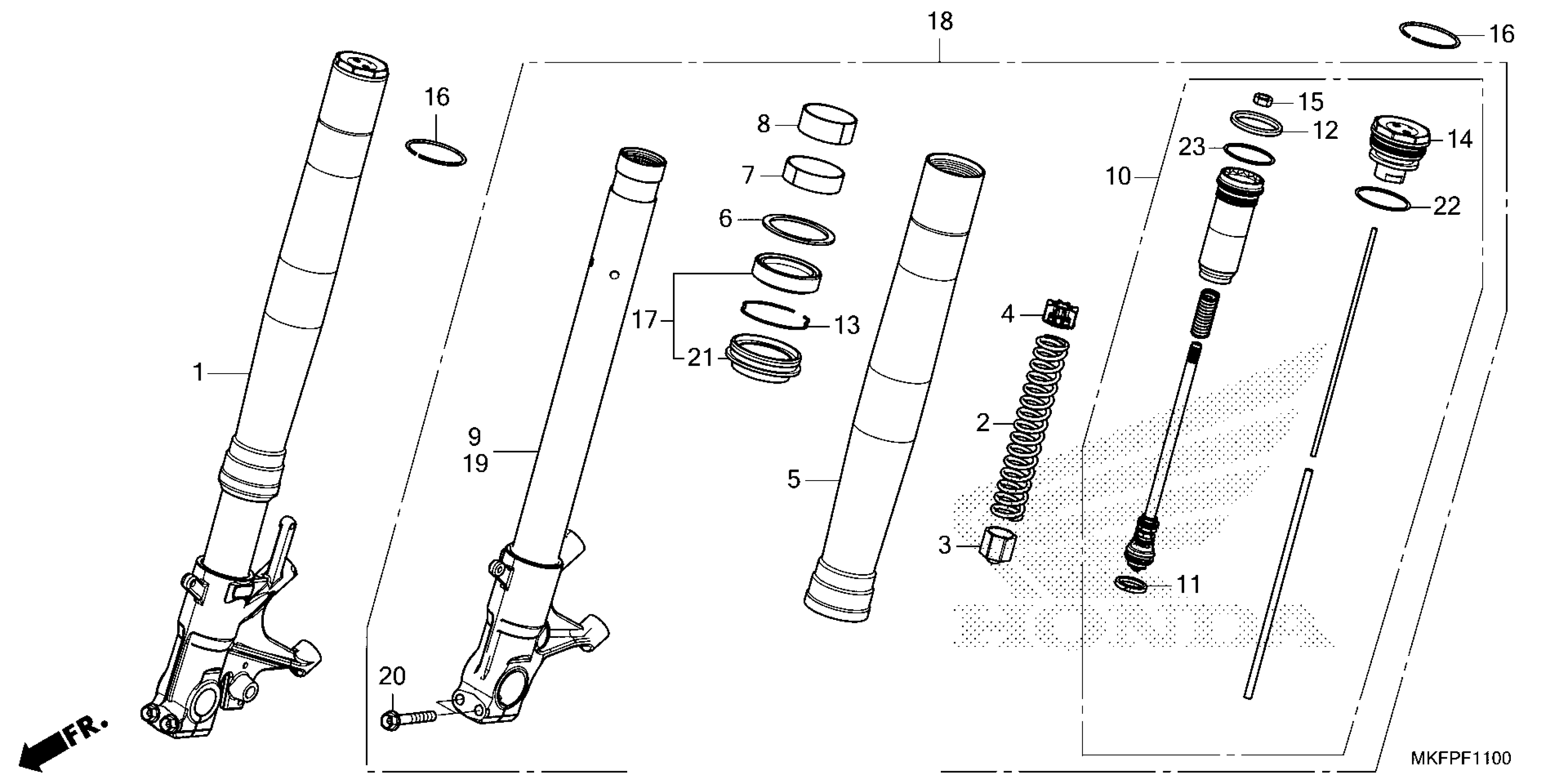

Honda CBR1000RR2AC (23) MOTORCYCLE, JPN, VIN# JH2SC771-PK600001 TO JH2SC771-PK699999 FRONT FORK Diagram

FORK ASSY., R. FR. (SHOWA) This part replaces 51400-MKF-D41.

51400-MKF-305

$1,088.56

FORK ASSY., R. FR. (SHOWA)

51400-MKF-305

$1,088.56

SPRING, FR. FORK

51401-MKF-D41

$72.46

COLLAR, SPRING

51403-MGP-D01

$11.09

COLLAR B, SPRING

51404-MGP-D01

$8.49

TUBE (OUTER)

51410-MGP-M31

$502.43

RING, BACK-UP

51412-MEL-003

$5.34

BUSH, GUIDE

51414-MFN-D01

$6.75

BUSH, SLIDER

51415-MGP-D01

$13.62

PIPE, R. SLIDE

51425-MGP-D71

$369.50

ROD, PISTON

51430-MKF-D41

$572.24

RING, PISTON

51437-MGP-D01

$7.12

RING B, PISTON

51438-MGP-D01

$5.83

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

BOLT, FR. FORK

51450-MGP-D61

$91.22

NUT, HEX.

51451-MGP-D01

$1.76

RING, STOPPER

51455-MW4-003

$11.20

SEAL SET, FR. FORK

51490-MFL-003

$18.22

FORK ASSY., L. FR. (SHOWA) This part replaces 51500-MKF-D41.

51500-MKF-305

$1,088.56

FORK ASSY., L. FR. (SHOWA)

51500-MKF-305

$1,088.56

PIPE, L. SLIDE

51525-MGP-D61

$369.50

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

DUST SEAL

91254-MEJ-013

$11.51

O-RING (42.2X2.4)

91258-GF4-003

$5.64

O-RING (39.5X1.8)

91258-MGP-D01

$3.83
