Description

Price

1

PIPE, EX.

18150-MKF-D40

$1,373.03

2

STAY, EX. PIPE

18155-MGP-D60

$49.07

3

GASKET, EX. PIPE

18291-MM5-860

$4.93

4

RUBBER, PROTECTOR

18293-MN0-000

$1.97

5

MUFFLER, EX. This part replaces 18310-MKF-D40.

18310-MKF-D41

$2,706.18

8

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

9

COVER, MUFFLER

18350-MKF-D40

$112.54

11

BAND, MUFFLER

18371-MGP-D60

$32.16

12

GASKET, MUFFLER

18391-MGP-D60

$27.40

13

RUBBER, MUFFLER MOUNTING

18421-MFL-000

$6.65

14

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$17.07

15

COLLAR, MUFFLER MOUNTING

18422-MKF-D40

$11.54

16

COLLAR, EX. PIPE MOUNTING

18423-MFJ-D00

$6.40

17

SENSOR, OXYGEN

36531-MKF-D41

$225.00

18

COLLAR, MUFFLER COVER

84706-MKF-D40

$4.29

19

BOLT, FLANGE (8X35)

90103-KCM-620

$1.46

21

BOLT, SPECIAL (6X14) (SUS)

90119-MGH-640

$4.69

22

BOLT, FLANGE GUIDE (8X26)

90120-MGP-D60

$2.80

23

BOLT, SOCKET (8X43)

90172-MFL-000

$3.56

25

NUT, FLANGE CAP (8MM)

90208-438-000

$3.41

26

NUT, FLANGE (7MM)

90304-MM5-000

Unavailable

27

WASHER (8.5X38)

90501-MFJ-D00

$1.99

28

WASHER, PLAIN (8MM)

90502-MKF-D40

$3.10

29

BOLT, FLANGE (8X38)

95701-08038-00

$1.40

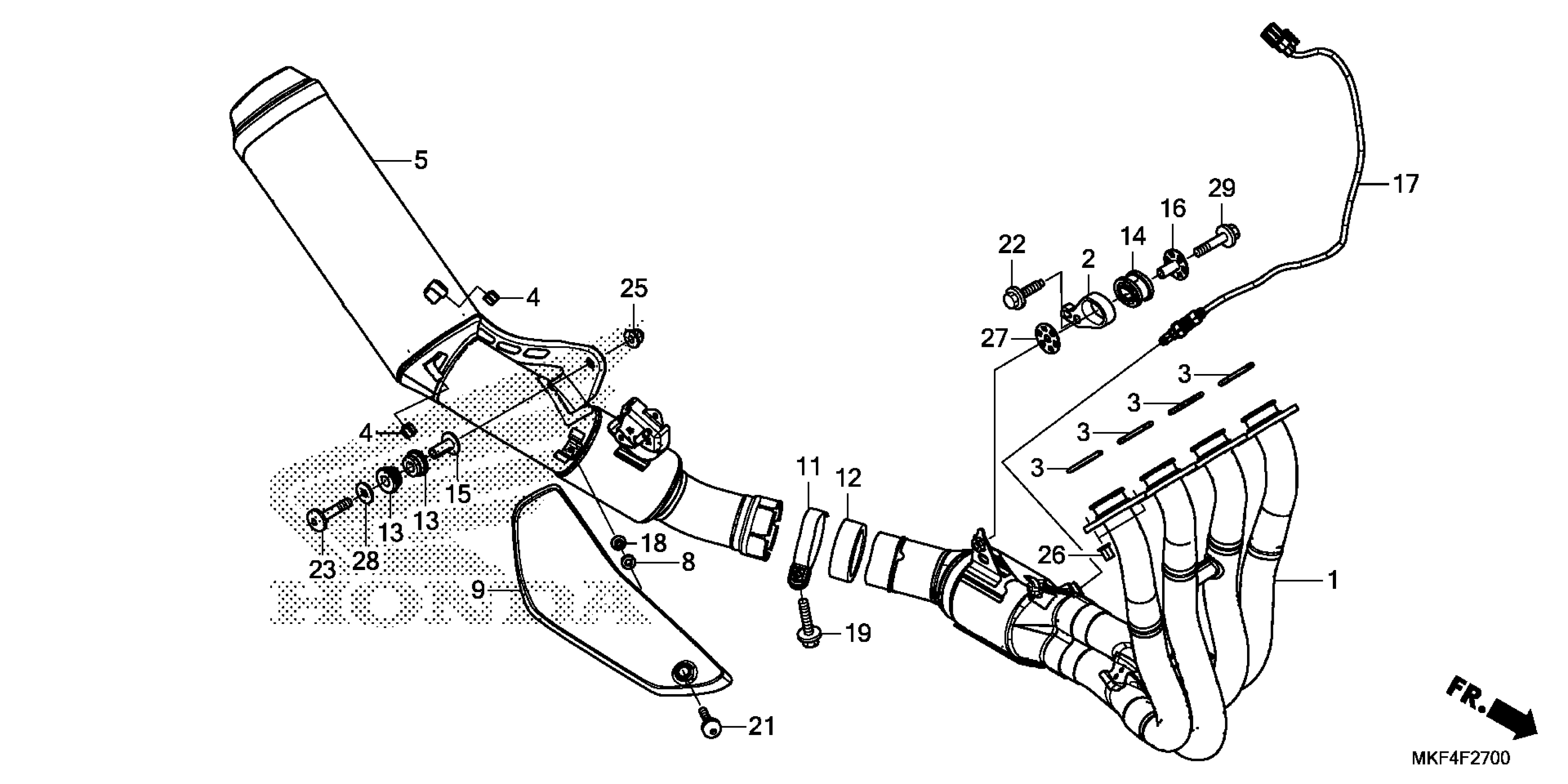

Honda CBR1000RR2AC (18) MOTORCYCLE, JPM, VIN# JH2SC771-JK100001 MUFFLER Diagram
