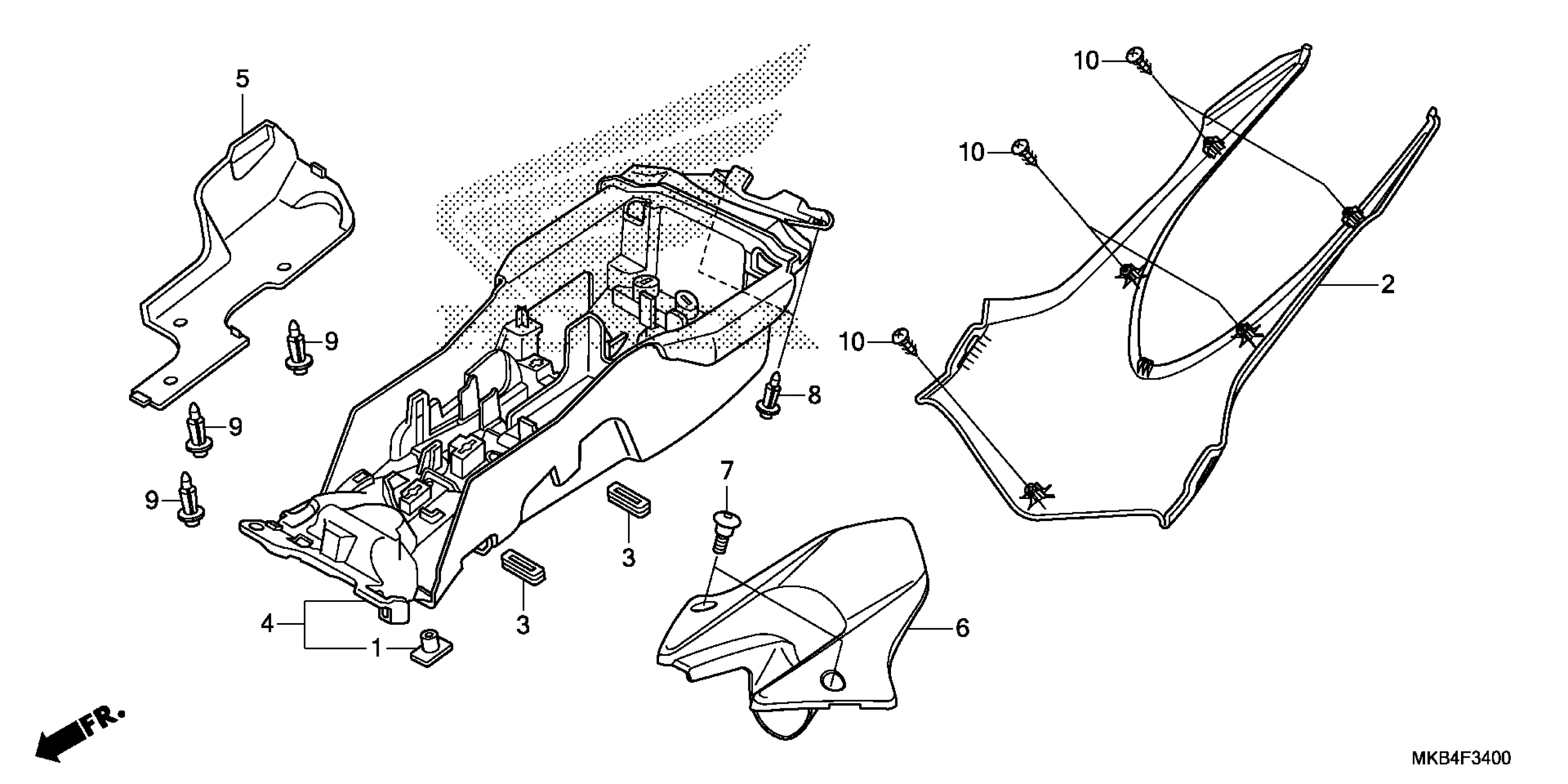

Honda CBR1000RR2A (15) MOTORCYCLE, JPN, VIN# JH2SC590-FK700001 TO JH2SC590-FK799999 REAR FENDER (1) Diagram

#

Description

Price

1

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

2

COWL, SEAT (LOWER) NH436M (MAT GUNPOWDER BLACK METALLIC) | Ross white NH196

77230-MGP-D00ZE

$155.07

3

GROMMET, TOOL TRAY

77309-KK6-000

$2.70

4

FENDER B, RR.

80105-MFL-000

$110.81

5

COVER, SERVO MOTOR

80106-MFL-000

$8.82

6

FENDER C, RR. This part replaces 80120-MGP-D00.

80120-MGP-D01

$19.03

6

FENDER C, RR.

80120-MGP-D01

$19.03

7

SCREW, PAN (5X19)

90106-KCR-000

$2.97

8

RIVET, PUSH

90116-MCS-G00

$1.49

9

CLIP, BODY COVER

90683-GR1-003

$2.92

10

SCREW, TAPPING (4X10)

93903-24280

$1.49
