Description

Price

1

DAMPER SET, WHEEL

06410-MEL-D20

$55.16

6

SPROCKET, FINAL DRIVEN (42T)

41201-MEL-D20

$110.72

7

AXLE, RR. WHEEL

42301-MFL-000

$71.77

8

COLLAR, RR. WHEEL SIDE

42311-MFL-700

$22.51

9

COLLAR, RR. BRAKE SIDE

42312-MFL-000

$11.98

11

FLANGE SUB-ASSY., RR. DRIVEN

42615-MFL-000

$191.69

12

COLLAR, RR. AXLE DISTANCE

42620-MEL-000

$39.30

13

COLLAR B, RR. WHEEL DISTANCE

42625-MFL-000

$27.72

14

WHEEL SUB, RR. NH1

42650-MGP-D00ZA

$1,212.18

14

WHEEL SUB, RR. NH1 This part replaces 42650-MGP-305ZA.

42650-MGP-D00ZA

$1,212.18

15

TIRE, RR. (190/50ZR17) (M/C 73W) (BS) This part replaces 42711-MGP-003.

42711-MGP-013

$228.30

15

TIRE, RR. (190/50ZR17) (M/C 73W) (DUNLOP)

42711-MGP-004

Unavailable

15

TIRE, RR. (190/50ZR17) (M/C 73W) (BS)

42711-MGP-013

$228.30

16

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$12.74

16

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

17

DISK, RR. BRAKE

43251-MEE-000

$229.93

18

WEIGHT, BALANCE (10G)

44721-MGC-003

$4.41

18

WEIGHT, BALANCE (15G)

44722-MGC-003

$5.25

18

WEIGHT, BALANCE (20G)

44723-MGC-003

$5.25

19

BOLT, BRAKE DISK (8X24)

90105-MFL-D20

$4.01

20

BOLT (10X30)

90121-MCF-D30

$2.92

22

NUT, U (10MM)

90304-KAE-871

$4.33

23

NUT, U (22MM)

90305-MCF-D01

$7.70

24

WASHER (23X37X2.5)

90401-MCJ-000

$5.05

25

WASHER (10MM)

90502-MCF-000

$2.80

26

BEARING, ANGULAR BALL (28X56X15)

91051-MFL-003

$36.16

27

BEARING, RADIAL BALL (6005)

91052-MCF-003

$15.55

28

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$17.90

29

DUST SEAL (35X56X7.5)

91251-MFL-003

$7.46

30

DUST SEAL (35X57X7.5)

91252-MFL-003

$7.20

31

O-RING (51X2)

91352-MCF-003

$3.77

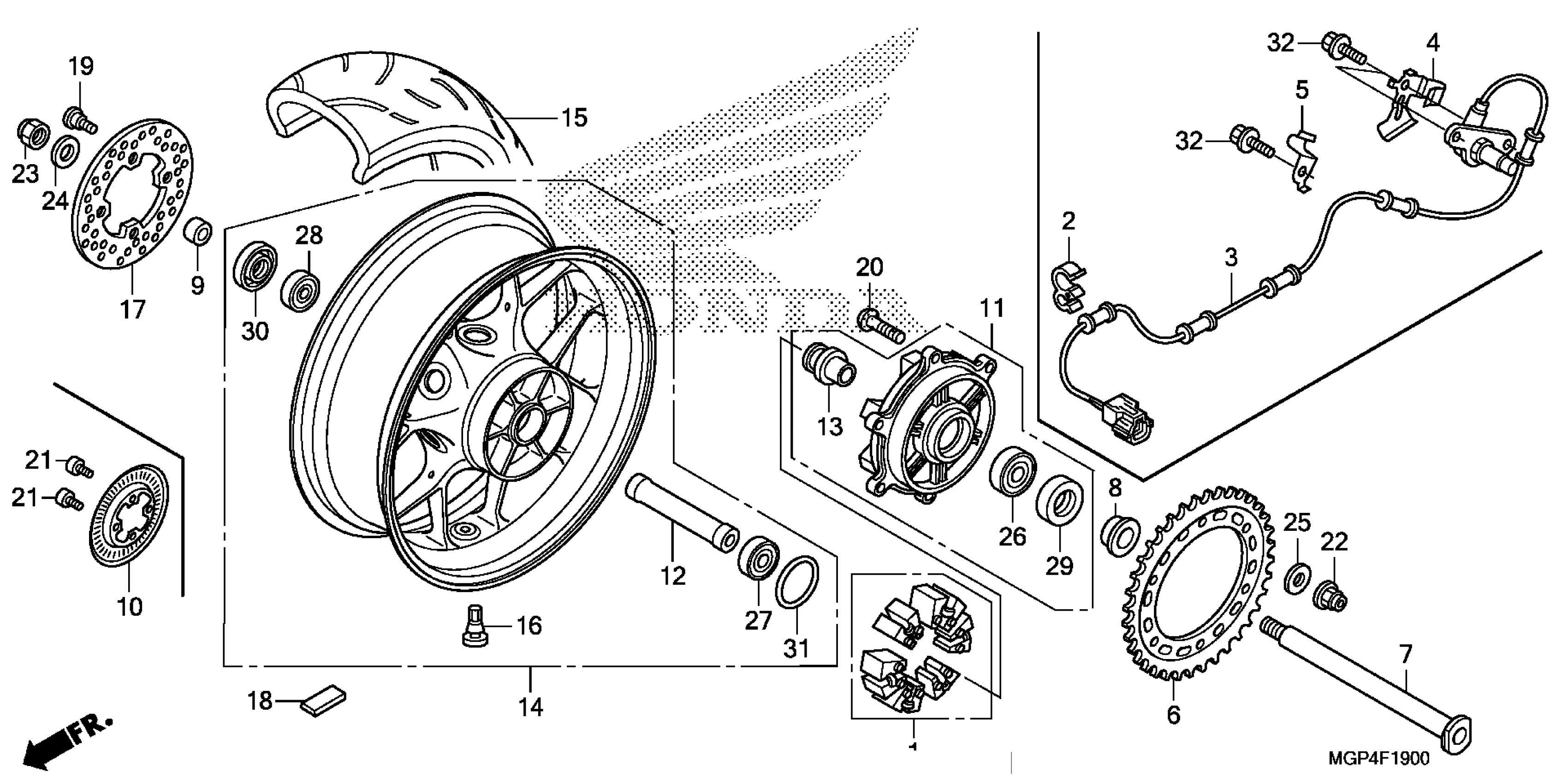

Honda CBR1000RR2A (13) CBR1000RR, JPN, VIN# JH2SC594-DK500001 TO JH2SC594-DK599999 REAR WHEEL Diagram
