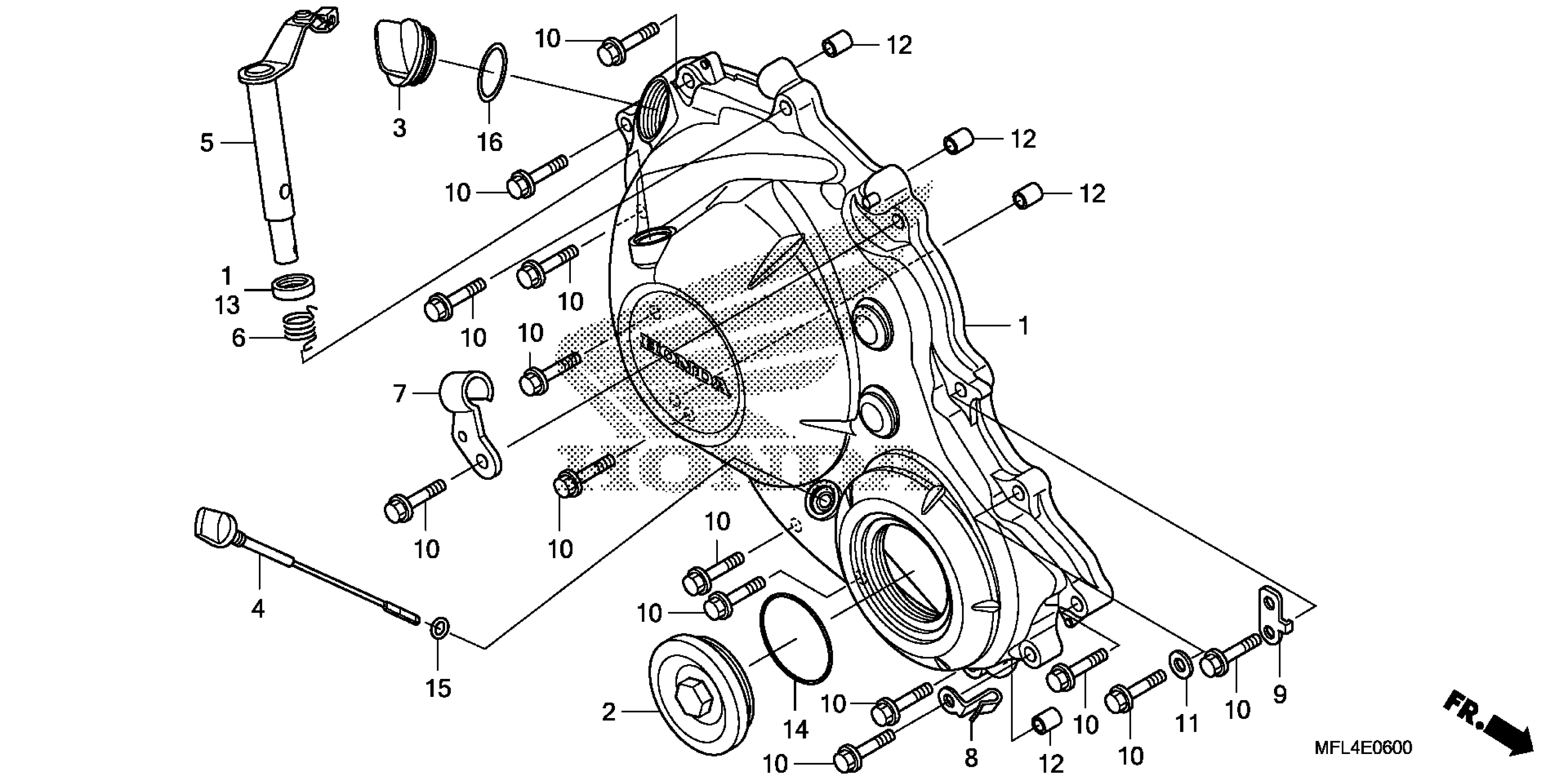

Honda CBR1000RR2A (11) MOTORCYCLE, JPN, VIN# JH2SC594-BK300001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MFL-670

$227.62

CAP (45MM)

11332-MFL-670

$22.95

CAP, OIL FILLER

15611-KA4-710

$14.40

DIPSTICK, OIL

15650-MFL-000

$16.85

LEVER, CLUTCH | Use up to Engine SN 2305822.

22810-MFL-000

$55.43

LEVER, CLUTCH | Use from Engine SN 2305823.

22810-MFL-950

$58.07

SPRING, CLUTCH LEVER

22815-MFL-000

$2.92

RECEIVER, CLUTCH CABLE | Use up to Engine SN 2305822.

22821-MFL-000

$4.85

RECEIVER, CLUTCH CABLE | Use from Engine SN 2305823.

22821-MFL-950

$5.23

GUIDE, OIL PRESSURE SWITCH WIRE

32114-MFG-D00

$6.56

STAY, HARNESS CLIP

32157-MFJ-D00

$3.31

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

WASHER, SEALING (6MM)

90442-035-000

$2.21

PIN, DOWEL (10X16) (Honda Code 3906971)

90701-MV9-670

$4.30

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (6.5X2.2) (ARAI)

91303-MJ0-003

$4.06

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92
