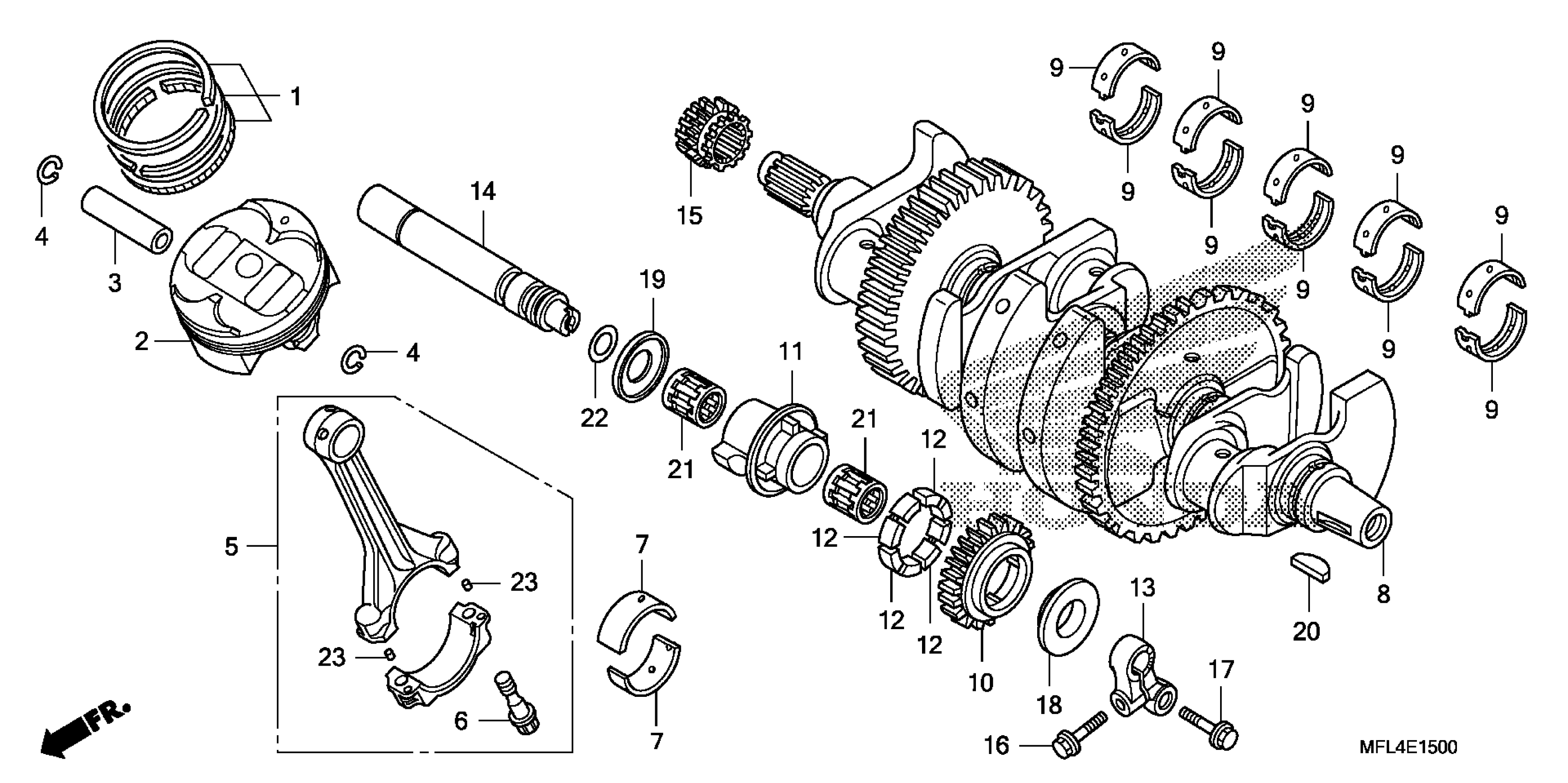

Honda CBR1000RR2A (11) MOTORCYCLE, JPN, VIN# JH2SC594-BK300001 CRANKSHAFT@PISTON Diagram

#

Description
Price

1

RING SET, PISTON (CONTRLD PART:CONTACT TEHCLINE OR USE TL CONNECT TO ORDER)

13031-MFL-010

$48.80

2

PISTON

13101-MFL-010

$216.90

3

PIN, PISTON

13111-MFL-010

$72.89

4

CLIP, PISTON PIN (17MM)

13112-MEL-000

$2.57

5

ROD ASSY., CONNECTING

13210-MFL-000

$204.93

6

BOLT, CONNECTING ROD

13213-MFL-003

$5.80

7

BEARING A, CONNECTING ROD (BLUE)

13214-MFL-003

$11.72

7

BEARING B, CONNECTING ROD (BLACK)

13215-MFL-003

$11.72

7

BEARING C, CONNECTING ROD (BROWN)

13216-MFL-003

$11.72

7

BEARING D, CONNECTING ROD (GREEN)

13217-MFL-003

$11.72

7

BEARING E, CONNECTING ROD (YELLOW)

13218-MFL-003

$11.72

8

CRANKSHAFT | Use up to Engine SN 2305822. This part replaces 13310-MFL-D20.

13310-MKF-D40

$1,324.87

8

CRANKSHAFT | Use up to Engine SN 2301070. This part replaces 13310-MFL-D21.

13310-MKF-D40

$1,324.87

8

CRANKSHAFT This part replaces 13310-MFL-D22.

13310-MKF-D40

$1,324.87

8

CRANKSHAFT

13310-MKF-D40

$1,324.87

9

BEARING B, CRANKSHAFT (BROWN)

13314-MFL-003

$9.65

9

BEARING C, CRANKSHAFT (GREEN)

13315-MFL-003

$9.65

9

BEARING D, CRANKSHAFT (YELLOW)

13316-MFL-003

$9.65

9

BEARING E, CRANKSHAFT (PINK)

13317-MFL-003

$9.65

9

BEARING F, CRANKSHAFT (RED)

13318-MFL-003

$9.65

10

GEAR, BALANCER (26T)

13421-MFL-000

$96.56

11

WEIGHT, BALANCER

13430-MFL-000

$105.66

12

RUBBER, DAMPER

13435-MFL-000

$2.59

13

HOLDER, BALANCER SHAFT

13436-MM5-000

$55.44

14

SHAFT, BALANCER This part replaces 13440-MFL-000.

13440-MKF-D40

$124.34

14

SHAFT, BALANCER

13440-MKF-D40

$124.34

15

SPROCKET, TIMING This part replaces 14312-MFL-000.

14312-MFL-010

$30.90

16

BOLT, FLANGE (6X18)

90002-MCZ-000

$1.49

17

BOLT, FLANGE (8X25)

90022-MFA-D00

$1.89

18

WASHER A, BALANCER SIDE

90457-MAT-000

$5.69

19

WASHER B, BALANCER SIDE

90458-MAT-000

$5.26

20

KEY, WOODRUFF (25X14X4)

90701-HB6-010

$3.78

21

BEARING B, NEEDLE (18X27X23.8) (BLUE)

91015-MEL-003

$20.93

21

BEARING C, NEEDLE (18X27X23.8) (WHITE)

91016-MEL-003

$20.93

21

BEARING D, NEEDLE (18X27X23.8) (GREEN)

91017-MEL-003

$20.02

22

O-RING (15X2.5) (Honda Code 0386995)

91302-377-000

$5.31

23

PIN C, DOWEL (4X6.5)

94303-04065

$2.14
