Description

Price

1

SPROCKET, OIL PUMP DRIVE (26T)

15131-MEL-003

$56.85

2

CLUTCH OUTER A (BLUE)

22100-MFL-880

$300.01

2

CLUTCH OUTER B (YELLOW)

22110-MFL-880

$300.01

2

CLUTCH OUTER C (GREEN)

22115-MFL-880

$318.26

3

COLLAR, OIL PUMP SPROCKET

22116-MEL-000

Unavailable

4

GUIDE A, CLUTCH (OUTER) (2MM HOLE X2)

22117-MFL-880

$17.25

4

GUIDE B, CLUTCH (OUTER) (2MM HOLE X3)

22118-MFL-880

$18.03

4

GUIDE C, CLUTCH (OUTER) (2MM HOLE X4)

22119-MFL-880

$17.25

5

CENTER, CLUTCH

22120-MFL-880

$208.19

6

DISK SET, CLUTCH

22210-MFL-880

$177.84

9

PLATE, CLUTCH PRESSURE

22350-MFL-880

$228.46

10

LIFTER, CLUTCH

22354-MFL-000

$50.90

11

SEAT, CLUTCH LIFTER

22356-MFL-000

$12.21

12

HOLDER, CLUTCH SPRING

22365-MFL-000

$36.56

13

SEAT, CLUTCH SPRING

22366-MFL-000

$12.64

14

SEAT B, CLUTCH SPRING

22368-MFL-000

$9.16

15

SPRING, CLUTCH | Use up to Engine SN 2305822.

22401-MFL-000

$9.16

15

SPRING, CLUTCH | Use from Engine SN 2305823.

22401-MFL-950

$9.40

16

PIN, CLUTCH LIFTER

22847-MFL-000

$24.55

17

NUT, LOCK (25MM)

90231-MS2-610

$17.24

18

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$14.66

19

WASHER (25.1X37X3.2)

90407-MFL-000

$3.95

20

CIRCLIP (INNER) (102)

90601-MFL-000

$5.24

21

BEARING A, NEEDLE (35X41X27.8) (RED)

91101-MFL-881

$8.38

21

BEARING B, NEEDLE (35X41X27.8) (WHITE)

91102-MFL-881

$7.88

21

BEARING C, NEEDLE (35X41X27.8) (GREEN)

91103-MFL-881

$8.01

22

SPRING, CLUTCH PLATE | Use from Engine SN 2305823.

22325-MFL-950

$10.37

23

SEAT, JUDDER SPRING | Use from Engine SN 2305823.

22326-MFL-950

$10.32

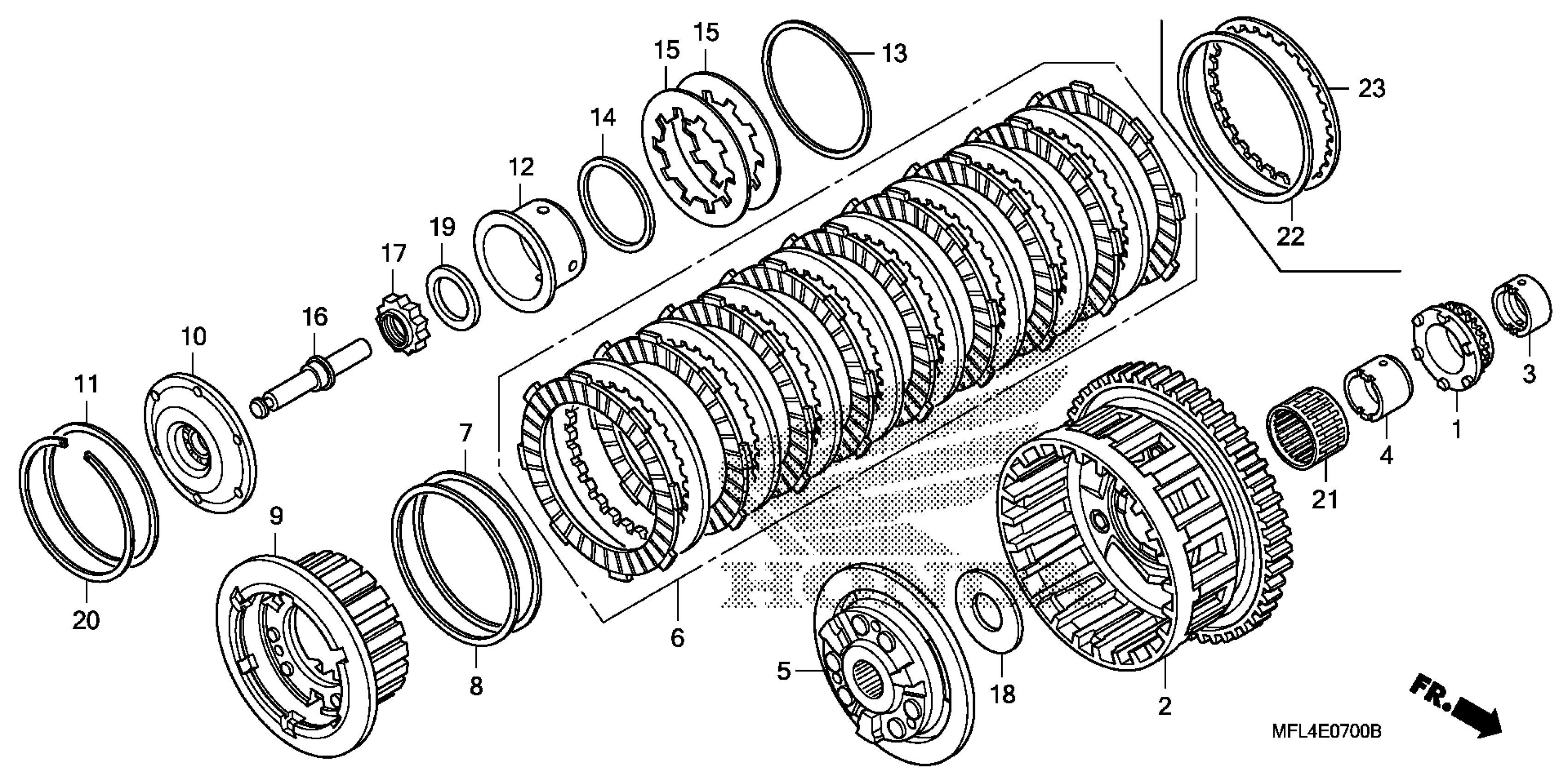

Honda CBR1000RR2A (11) MOTORCYCLE, JPN, VIN# JH2SC594-BK300001 CLUTCH Diagram
