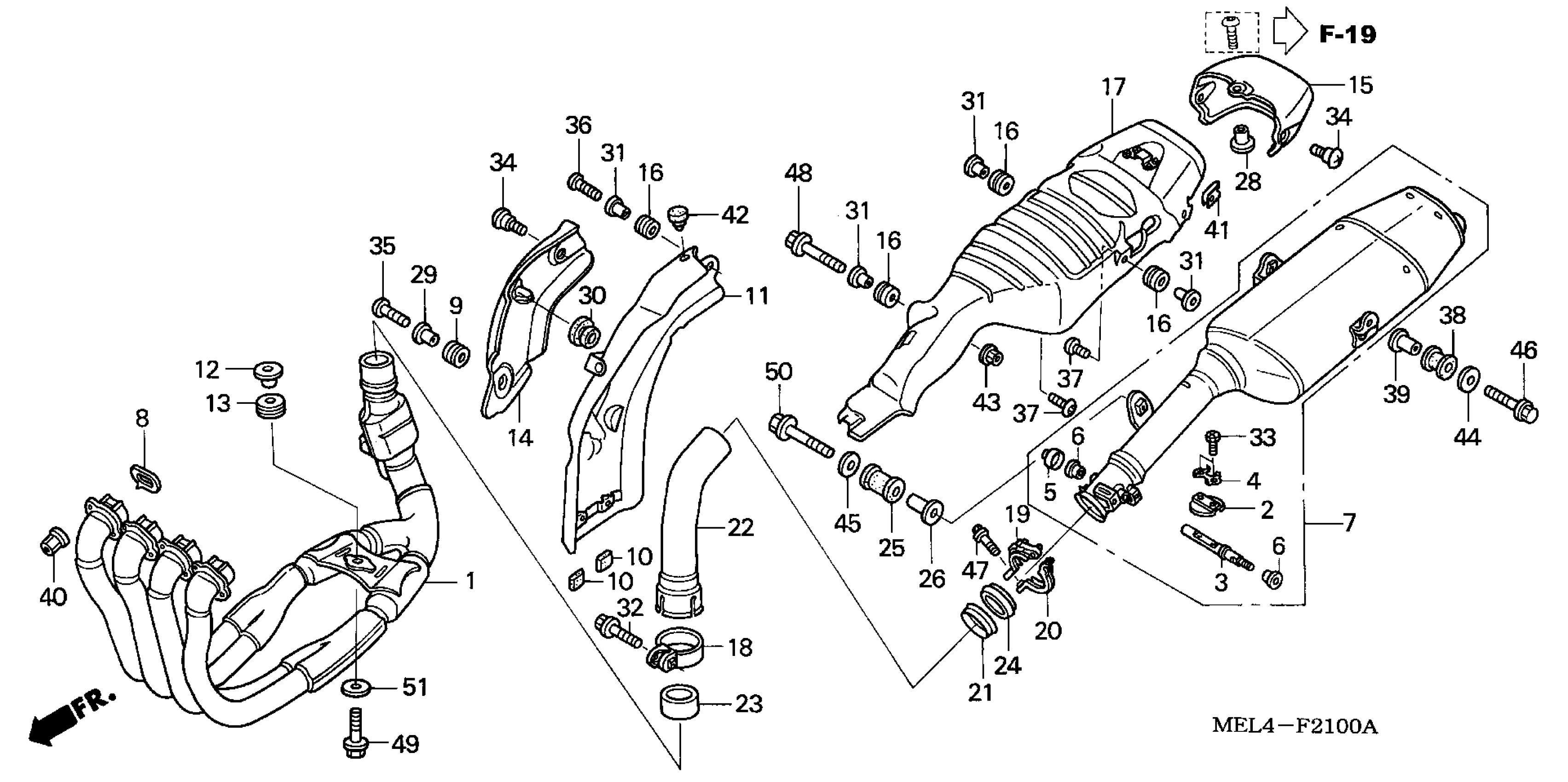

Honda CBR1000RR/R3AC (05) REPSOL EDITION, JPN, VIN# JH2SC575-5M100001 TO JH2SC575-5M199999 MUFFLER (1) Diagram

#

Description
Price

1

PIPE, EX.

18150-MEL-771

Unavailable

2

VALVE, BUTTERFLY

18176-MEL-000

$9.56

3

SHAFT, BUTTERFLY VALVE

18177-MEL-000

$88.57

4

WASHER, LOCK

18178-MEL-000

$3.98

5

CAP, EX. VALVE

18196-MEL-310

$7.00

6

BEARING, EX. VALVE

18197-MEL-000

$16.13

7

MUFFLER ASSY., EX. VALVE AND

18200-MEL-A01

$1,159.38

8

GASKET, EX. PIPE

18291-MEL-000

$9.04

9

RUBBER, PROTECTOR GASKET

18293-GN2-000

$2.90

10

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

11

PROTECTOR, EX. PIPE (INNER)

18325-MEL-D00

Unavailable

12

COLLAR, RR. CHAMBER (8.5X15)

18327-KAE-000

$2.70

13

RUBBER, MUFFLER MOUNTING

18328-MEL-000

Unavailable

14

PROTECTOR, EX. PIPE (OUTER)

18330-MEL-D00

$17.81

15

COVER, RR. MUFFLER

18340-MEL-010

Unavailable

16

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

17

PROTECTOR, MUFFLER

18345-MEL-D00

$145.20

18

BAND, MUFFLER

18371-MEL-003

$20.55

19

BAND, R. MUFFLER (50.8)

18372-MEL-000

Unavailable

20

BAND, L. MUFFLER (50.8)

18373-MEL-000

$37.20

21

PLATE, JOINT (48.6)

18375-MEL-010

$6.80

22

JOINT, EX. PIPE

18380-MEL-671

Unavailable

23

GASKET, MUFFLER

18391-MEL-000

$22.12

24

GASKET, MUFFLER (50.8)

18392-MEL-000

$24.25

25

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.34

26

COLLAR, CHAMBER MOUNTING

18424-MN5-000

$8.53

28

COLLAR (6.3X13)

50324-425-010

$5.05

29

COLLAR, FENDER SETTING

80103-MCJ-750

$2.57

30

GROMMET, SIDE COVER

83601-MN5-000

$2.92

31

COLLAR

84706-415-000

$2.23

32

BOLT, FLANGE (8X35)

90103-MCF-D60

$1.85

33

BOLT, SPECIAL (4X8)

90106-MEL-000

$2.03

34

SCREW, SPECIAL (5X11)

90114-MEL-000

$2.41

35

SCREW, PAN (5X15)

90115-MEL-000

$1.90

36

SCREW, PAN (6X14)

90118-MBV-000

$1.90

37

SCREW, PAN (6X14)

90118-MR1-000

$3.10

38

CUSHION, EX. PIPE MOUNTING

90201-MBB-000

$3.08

39

COLLAR (8X18)

90202-MBB-000

$5.07

40

NUT, FLANGE (7MM)

90304-MM5-000

$4.94

41

NUT, CLIP (5MM)

90307-MEL-000

$2.46

42

RUBBER, PROTECTOR

90572-MEL-000

$2.54

43

NUT, FLANGE (6MM)

94050-06000

$1.49

44

WASHER, PLAIN (8MM)

94103-08000

$1.49

45

WASHER, PLAIN (8MM)

94103-08700

$1.49

46

BOLT, FLANGE (8X30)

95801-08030-00

$1.57

47

BOLT, FLANGE (6X20)

96001-06020-02

$1.49

48

BOLT, FLANGE (6X35)

96300-06035-00

Unavailable

49

BOLT, FLANGE (8X32)

96400-08032-00

$2.17

50

BOLT, FLANGE (8X45)

96400-08045-07

$1.87

51

WASHER (8.5X28)

90534-MV4-000

$2.89
