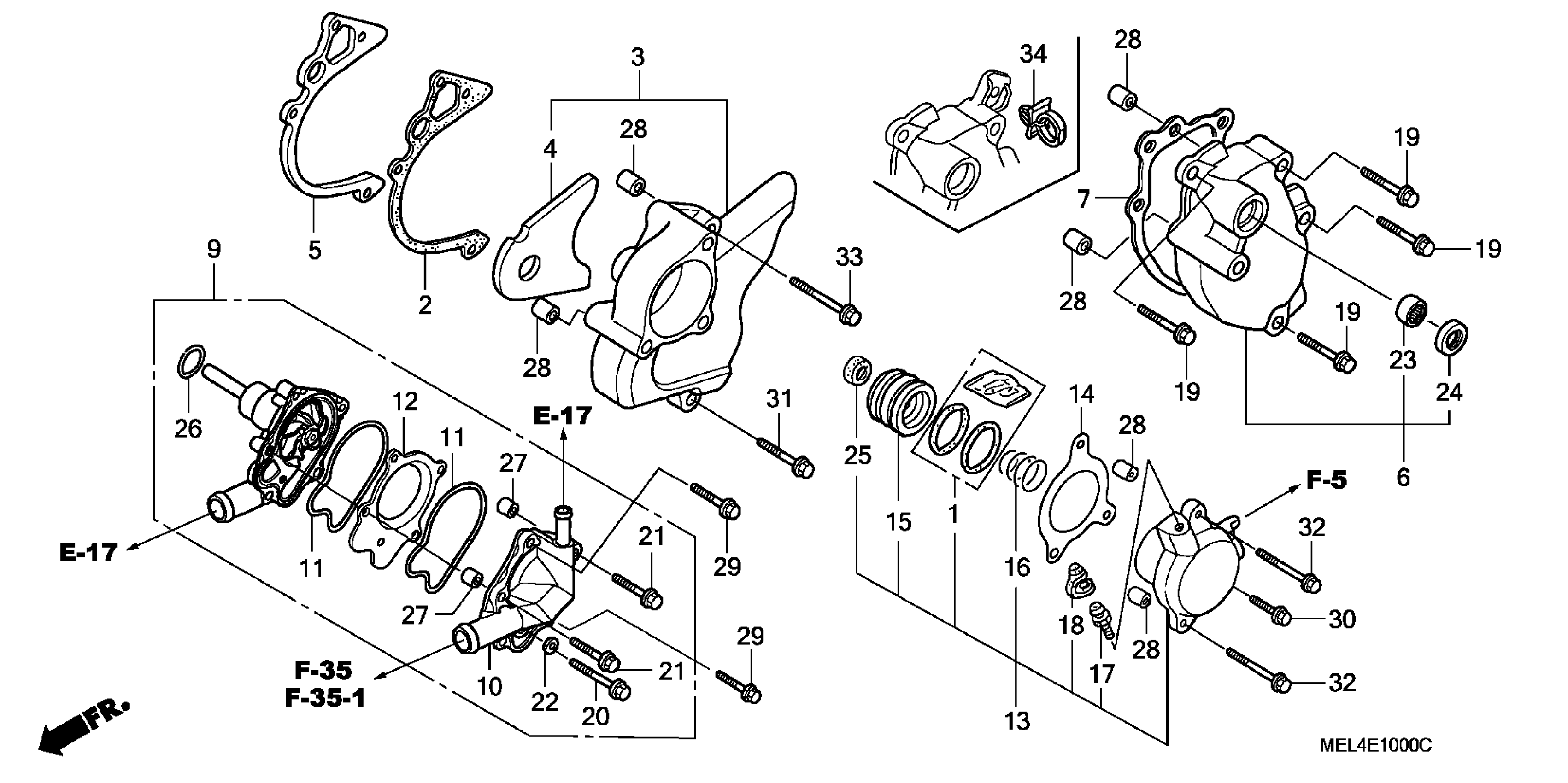

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 WATER PUMP Diagram

#

Description
Price

1

O-RING SET This part replaces 04121-MEJ-305.

04121-MEJ-315

$4.98

2

GASKET, L. RR. COVER

11343-MEL-000

$8.34

3

COVER, L. RR.

11350-MEL-D20

Unavailable

4

RUBBER, L. COVER

11352-MEL-300

Unavailable

5

PLATE, DRIVE CHAIN GUIDE | Use up to Engine SN 2316397 This part replaces 11355-MEL-000.

11355-MEL-010

Unavailable

5

PLATE, DRIVE CHAIN GUIDE

11355-MEL-010

Unavailable

6

COVER, CHANGE

11370-MEL-D20

$51.88

7

GASKET, CHANGE COVER This part replaces 11372-MEL-000.

11372-MKJ-E50

$6.35

9

WATER PUMP

19200-MEL-D20

$208.91

10

COVER, WATER PUMP

19221-MEL-D20

$86.34

11

GASKET, WATER PUMP

19226-MEL-300

$6.12

12

PLATE, WATER PUMP

19231-MEL-300

$7.08

13

CYLINDER ASSY., CLUTCH SLAVE

22860-MEJ-003

$124.09

14

GASKET, SLAVE CYLINDER This part replaces 22862-MW7-650.

22862-MGJ-D00

$4.75

15

PISTON, SLAVE CYLINDER

22863-MEJ-003

$27.49

16

SPRING, SLAVE CYLINDER

22864-MEJ-003

$6.85

17

SCREW, BLEEDER

22866-MF2-711

$4.88

18

CAP, BLEEDER

43353-461-771

$4.83

19

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.88

20

BOLT, FLANGE (6X32)

90017-883-000

$2.47

21

BOLT, FLANGE (6X25)

90121-MV9-670

$2.75

22

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

23

BEARING, NEEDLE (14MM) (TOYO)

91101-121-691

$24.95

24

OIL SEAL (14X22X5)

91203-KK3-830

$3.65

25

OIL SEAL (8X18X5)

91209-MB0-003

$3.87

26

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

Unavailable

27

PIN, DOWEL (8X10)

94301-08100

$2.62

28

PIN, DOWEL (8X14)

94301-08140

$2.62

29

BOLT, FLANGE (6X45)

90021-MFA-D00

$2.31

30

BOLT, FLANGE (6X20)

90010-GHB-650

$1.43

31

BOLT, FLANGE (6X40)

96001-06040-00

$2.59

31

BOLT, FLANGE (6X40) This part replaces 90010-GHB-710.

96001-06040-00

$2.59

32

BOLT, FLANGE (6X65)

90010-GHB-760

$2.66

33

BOLT, FLANGE (6X75)

90010-GHB-780

$1.99
