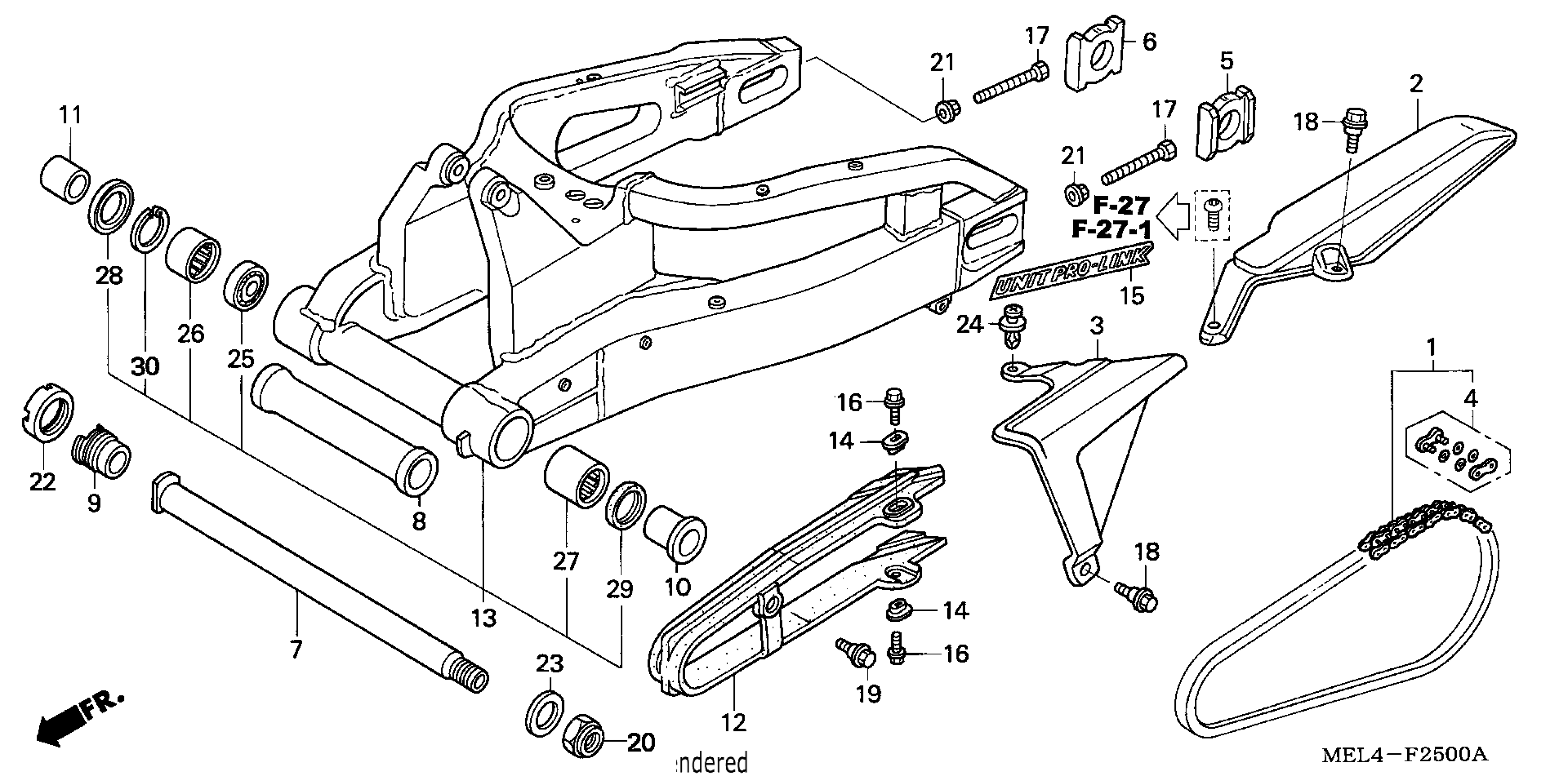

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 SWINGARM Diagram

CHAIN SET, DRIVE (DID50VM2-120L) (DAIDO) (STANDARD LINK 114L)

06405-MEL-P00

Unavailable

CHAIN SET, DRIVE This part replaces 06405-MEL-P10.

40540-MEL-D42

Unavailable

CASE A, DRIVE CHAIN

40510-MEL-000

$61.34

CASE B, DRIVE CHAIN

40520-MEL-000

Unavailable

MASTER LINK (DAIDO)

40541-MEL-D41

Unavailable

MASTER LINK (RK EXCEL)

40541-MEL-D42

$11.74

COLLAR, L. RR. AXLE

42305-MEL-D20

$32.87

COLLAR, R. RR. AXLE

42306-MEE-D00

$25.90

BOLT, SWINGARM PIVOT

52101-MEL-670

Unavailable

COLLAR, RR. SWINGARM PIVOT DISTANCE

52102-MEL-000

Unavailable

BOLT, R. PIVOT ADJUSTING

52108-MEL-000

$26.94

COLLAR, L. PIVOT DISTANCE

52143-MEL-000

$38.89

COLLAR, R. PIVOT DISTANCE

52144-MEL-000

$12.02

SLIDER, CHAIN

52170-MEL-000

$45.90

SWINGARM SUB-ASSY. This part replaces 52200-MEL-D40.

52200-MEL-507

Unavailable

COLLAR

81312-GJ5-000

$3.31

MARK (UNIT PROLINK)

87121-MEE-000

$3.74

BOLT, FLANGE (6X18)

90105-MY9-000

$2.92

BOLT, HEX. (8X50)

90106-MEL-D20

$2.48

BOLT, FLANGE (6MM)

90113-MAS-E00

$2.48

BOLT, CHAIN SLIDER

90130-MCJ-750

$3.06

NUT, U (22MM) This part replaces 90305-MCF-D00.

90305-MCF-D01

$7.70

NUT, HEX. (8MM)

90309-357-000

$3.40

NUT, LOCK (36MM)

90354-MCF-D00

$13.59

WASHER (23X37X2.5)

90401-MCJ-000

$5.05

CLIP, BODY COVER

90683-GR1-003

$2.92

BEARING, RADIAL BALL (6905)

91053-MCJ-003

$16.79

BEARING, NEEDLE (32X42X20)

91053-MCJ-751

$32.10

BEARING, NEEDLE (32X42X37)

91071-MCJ-003

$21.06

DUST SEAL (32X45X5)

91252-MCF-003

$6.91

DUST SEAL (32X42X6)

91253-MCF-003

$6.41

CIRCLIP, INNER (45MM)

94520-45000

$2.19
