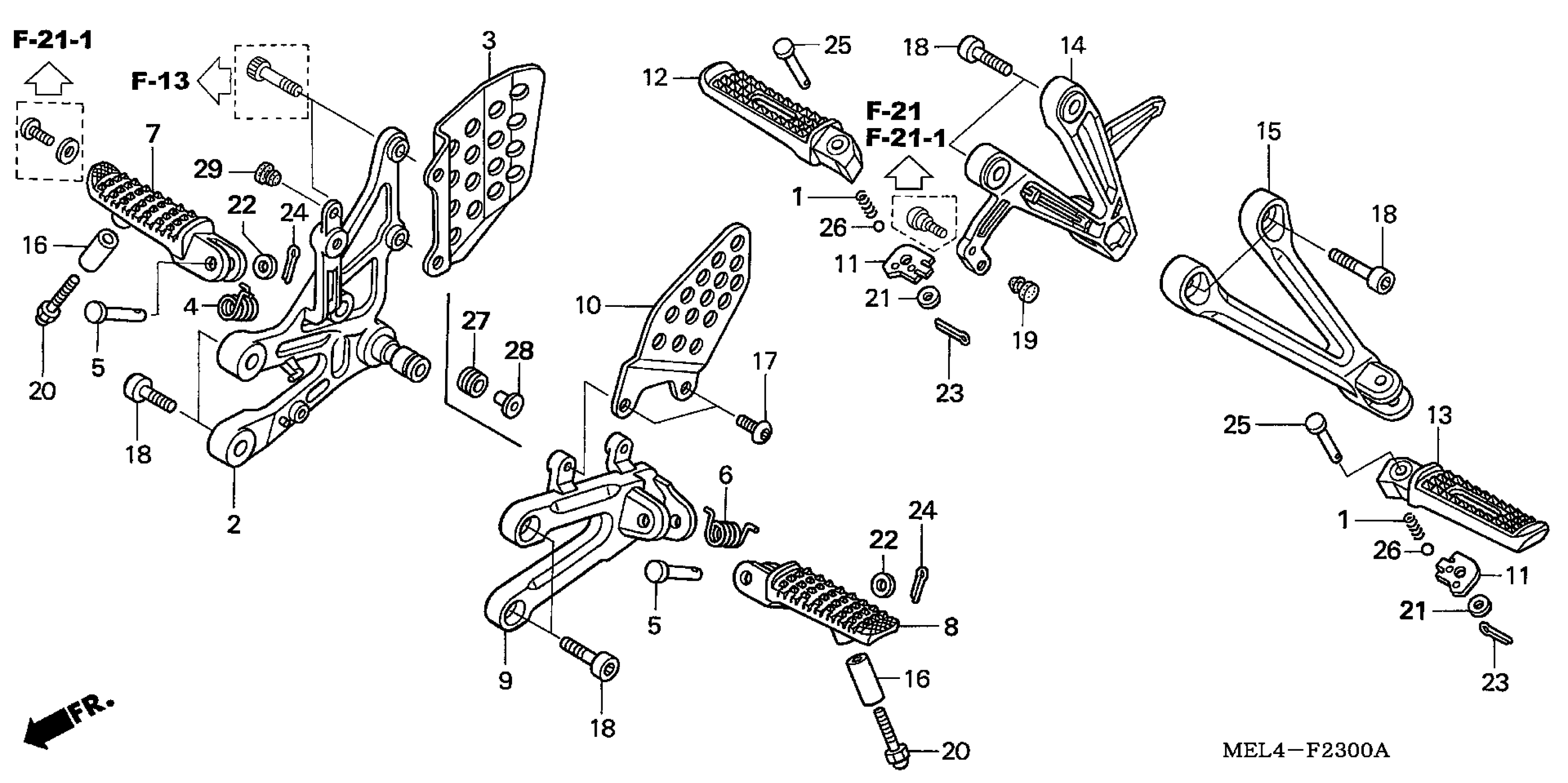

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

HOLDER, R. MAIN STEP

50600-MEL-D20

Unavailable

3

GUARD, R. STEP

50607-MEL-000

Unavailable

4

SPRING, R. STEP RETURN

50617-MCJ-750

$3.95

5

PIN, STEP BAR

50639-ML0-010

Unavailable

6

SPRING, L. STEP RETURN

50644-MCJ-750

$3.95

7

ARM, R. MAIN STEP (COO) This part replaces 50660-MEL-000.

50660-MEL-305

$48.00

8

ARM, L. MAIN STEP (COO) This part replaces 50665-MEL-000.

50665-MEL-305

$44.62

9

HOLDER, L. MAIN STEP

50700-MEL-000

$70.45

10

GUARD, L. STEP

50707-MCJ-000

$33.33

11

PLATE, PILLION STEP CLICK

50718-MEE-D00

$2.41

12

ARM, R. PILLION STEP (COO) This part replaces 50720-MEL-D00.

50720-MEL-305

$46.24

13

ARM, L. PILLION STEP (COO) This part replaces 50730-MEL-D00.

50730-MEL-305

$52.18

14

HOLDER, R. PILLION STEP

50750-MEL-000

$96.09

15

HOLDER, L. PILLION STEP

50760-MEL-000

Unavailable

16

COLLAR, STEP (LOWER)

51486-MEL-000

$3.75

17

SCREW, PAN (6X14)

90118-MR1-000

$2.88

18

BOLT, SOCKET (8X22)

90157-ME9-000

$5.32

19

RUBBER, PROTECTOR

90572-MEL-000

$2.32

20

BOLT, CAP (6X50)

92501-06050-0A

$2.80

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

21

WASHER, PLAIN (6MM)

94101-06800

Unavailable

22

WASHER, PLAIN (8MM)

94102-08000

$0.86

23

PIN, SPLIT (1.6X12)

94201-16120

$0.94

24

PIN, SPLIT (2.0X15)

94201-20150

$0.94

25

PIN C, PILLION STEP

95015-83000

$2.19

26

BALL, STEEL (#8) (1/4)

96211-08000

$1.13

27

RUBBER, MOUNTING

19639-GBL-000

$0.97

28

COLLAR, TAILLIGHT

33712-GC6-000

$2.80

29

RUBBER, STEP HOLDER

50631-MEL-D20

Unavailable
