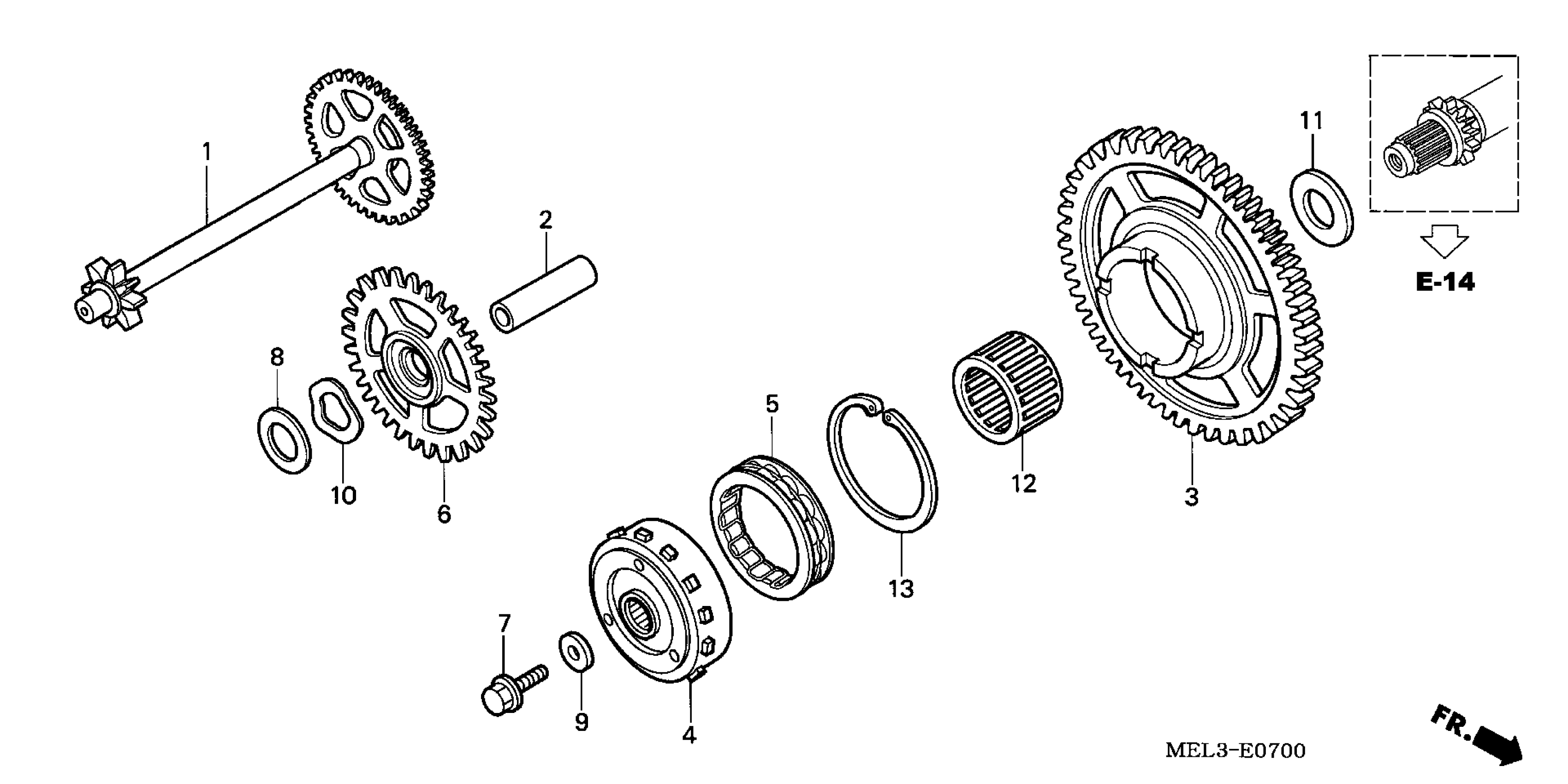

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 STARTING CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER REDUCTION (9T/59T)

28100-MEL-D20

$96.02

2

PIN (10X36.5)

28102-ML7-000

$8.66

3

GEAR, STARTING DRIVEN (40T)

28110-MEL-000

$127.48

4

CLUTCH OUTER, STARTING | Use up to Engine SN 2318910 This part replaces 28115-MEL-D20.

28115-MEL-D21

Unavailable

4

CLUTCH OUTER, STARTING

28115-MEL-D21

Unavailable

5

CLUTCH, ONE-WAY

28126-MEL-000

$90.82

6

GEAR, STARTER IDLE (25T)

28141-MEL-000

$45.98

7

BOLT, SPECIAL (10X25)

90013-430-000

$6.46

8

WASHER (10X28X1)

90401-MEE-000

$1.87

9

WASHER (10.5X31.8)

90405-MFA-D00

$4.13

10

WASHER, WAVE

90435-MEE-000

$1.87

11

WASHER, THRUST (22.1X42X3)

90456-MFA-D00

$3.67

12

BEARING, NEEDLE (30X35X20)

91025-KT7-003

$22.11

13

CIRCLIP (INNER) (63MM)

94520-63150

$3.67
