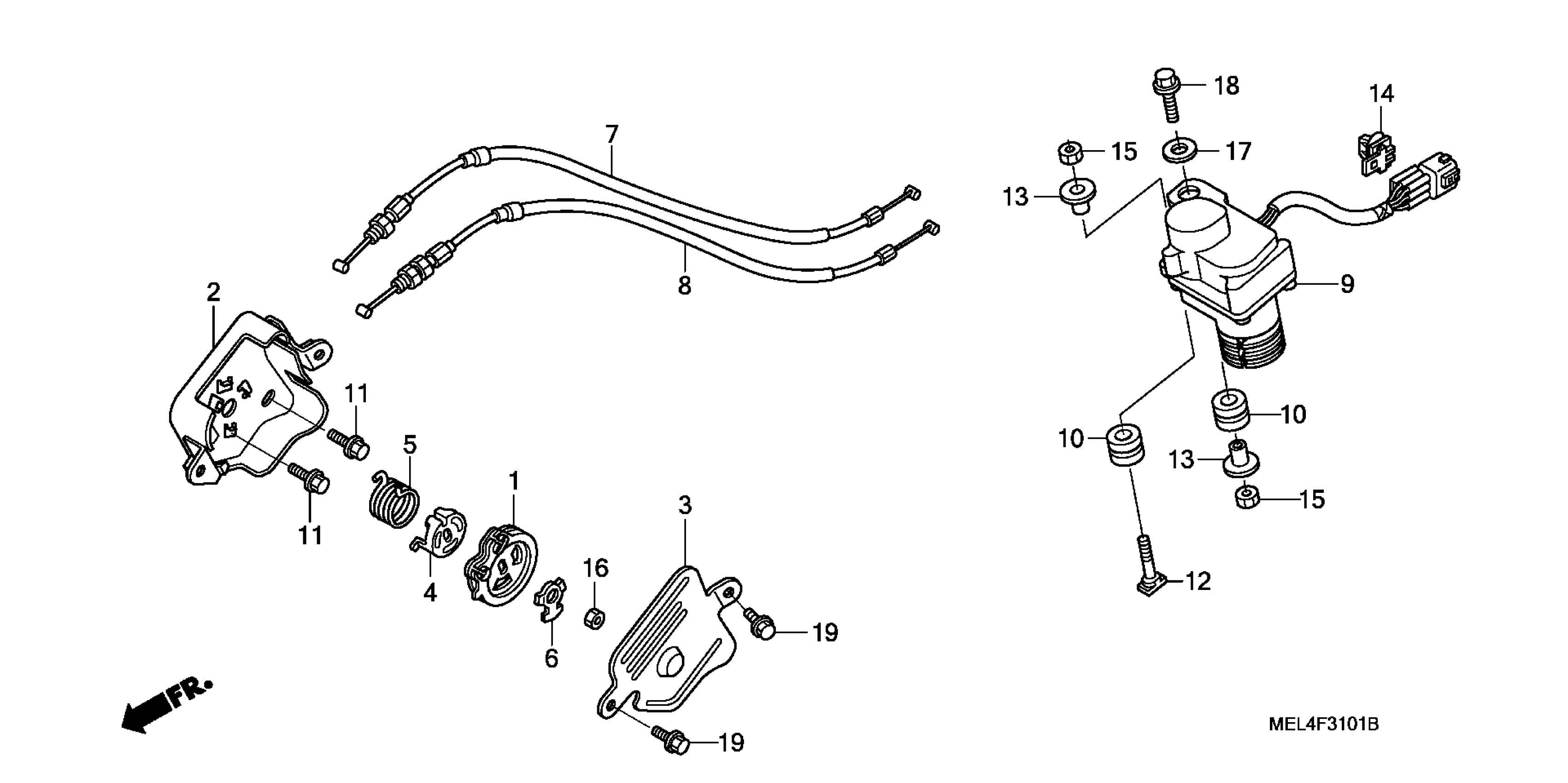

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 SERVO MOTOR (2) Diagram

GUIDE, VALVE CABLE

18180-MEL-D20

Unavailable

BODY, VALVE GUIDE

18183-MEL-D20

$28.55

COVER, VALVE GUIDE

18184-MEL-D20

$6.22

STOPPER, EX. VALVE

18185-MEL-D20

Unavailable

SPRING, RETURN

18186-MEL-D20

$2.99

WASHER B, LOCK

18195-MEL-D20

$2.62

CABLE A, EX. VALVE

18910-MEL-D20

Unavailable

CABLE B, EX. VALVE

18920-MEL-D20

Unavailable

MOTOR ASSY., SERVO

31420-MEL-D21

$379.45

GROMMET, SEAT SETTING

77205-KM4-000

$1.96

BOLT, FLANGE (5X8)

90002-ZG3-000

$1.48

BOLT, SERVO MOTOR CASE (6X28)

90015-MEL-D20

$4.13

COLLAR (6.3X14.5)

90503-KAE-000

$4.16

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.42

NUT, FLANGE (6MM)

94050-06000

$0.59

NUT, HEX. (6MM)

94001-06020-0S

$1.25

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable

BOLT, FLANGE (6X25)

96001-06025-00

$1.91

SCREW-WASHER (5X12)

16546-HW4-680

$1.45
