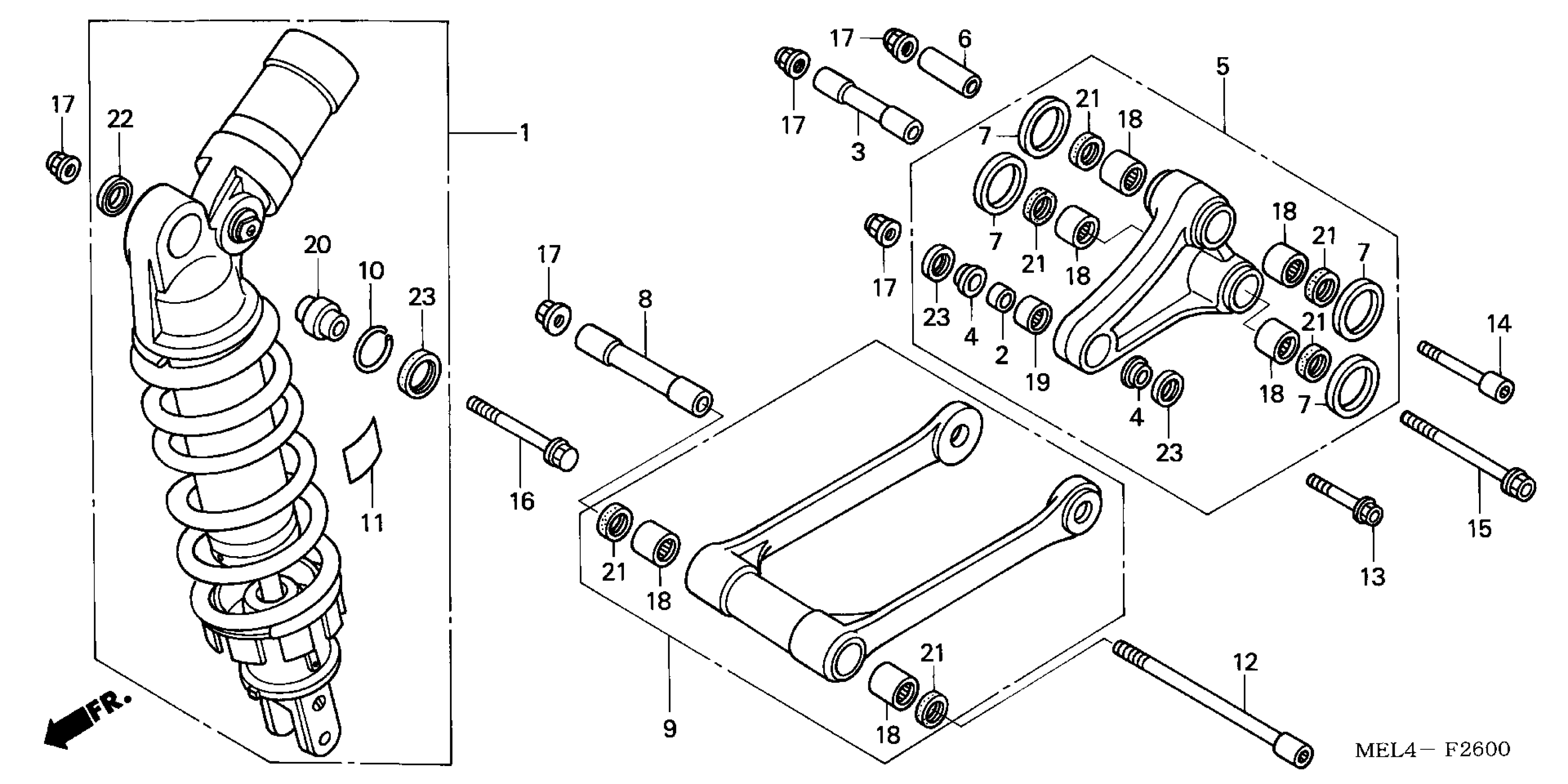

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR.

52400-MEL-A21

Unavailable

COLLAR D, CUSHION

52463-KZ4-B00

$3.27

COLLAR, CUSHION ARM

52463-MEE-000

Unavailable

COLLAR, BEARING SIDE

52464-MEE-000

Unavailable

ARM SUB-ASSY., CUSHION

52465-MEL-D20

$314.20

COLLAR A, CUSHION ARM

52466-MEE-000

Unavailable

WASHER, THRUST

52467-MEE-000

$2.33

COLLAR, CONNECTING ROD PIVOT

52472-MEL-000

Unavailable

ROD SUB-ASSY., CUSHION CONNECTING

52475-MEL-D20

Unavailable

RING, STOPPER

52487-KA4-831

$3.92

LABEL, RR. DAMPER

87516-MBL-610

$4.31

BOLT, SOCKET (10X136)

90107-MEE-000

$5.57

BOLT, FLANGE (10X57)

90107-MR8-000

$6.49

BOLT, SOCKET (10X80)

90111-KV3-700

$4.93

BOLT, FLANGE (10X113)

90115-MR7-003

Unavailable

BOLT, FLANGE (10X75)

90132-MEL-000

$6.96

NUT, U (10MM)

90304-GE8-003

$3.67

BEARING, NEEDLE (17X24X17) (KOYO)

91071-MY1-005

$19.69

BEARING, NEEDLE (19X26X15)

91074-KZ4-B01

$21.68

BEARING, SPHERICAL (10)

91074-MBR-722

$21.61

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87

DUST SEAL (16X26X3)

91351-MAC-671

$5.78
