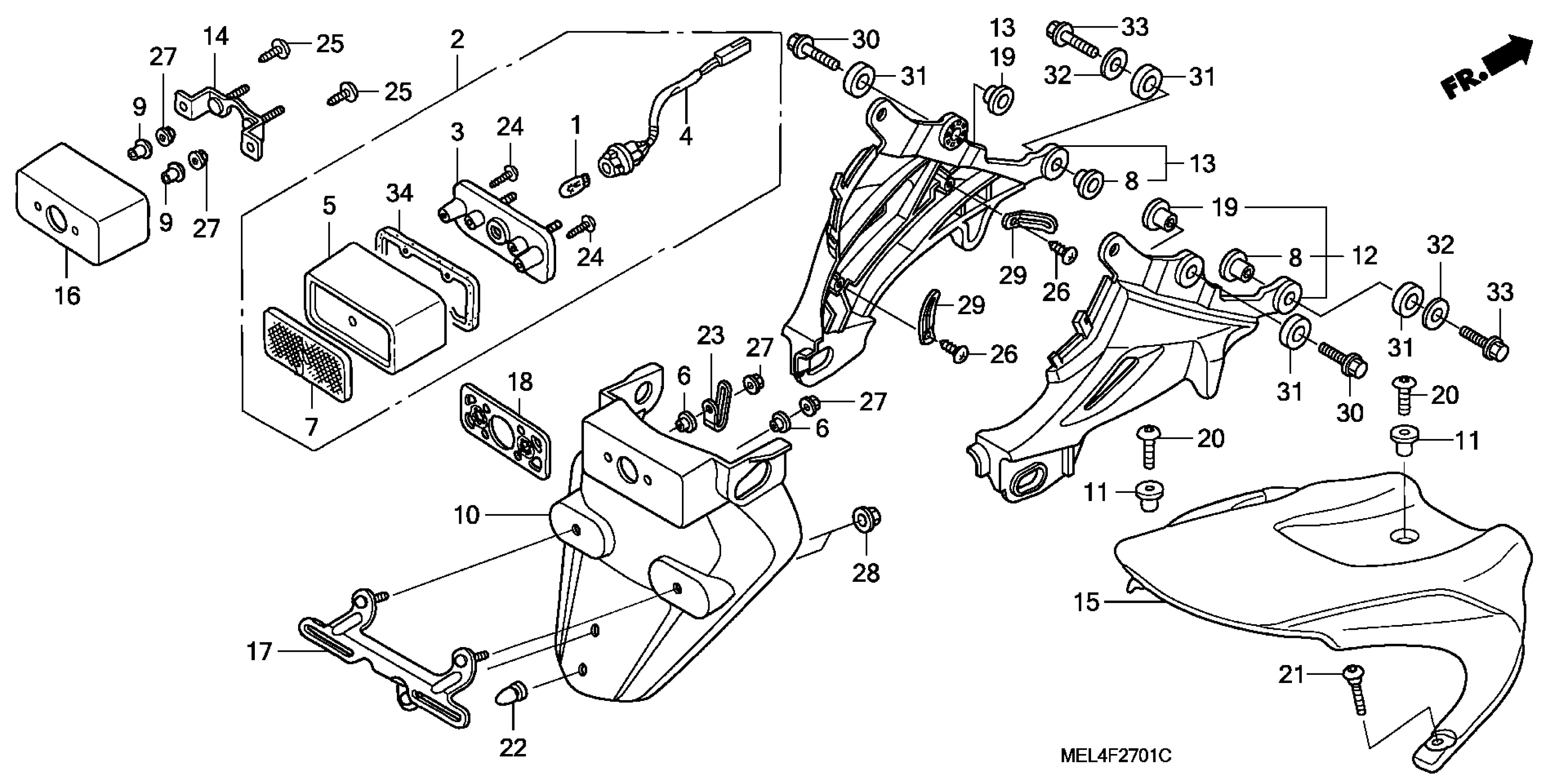

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 REAR FENDER (2) Diagram

#

Description
Price

1

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

2

LIGHT ASSY., LICENSE (12V5W)

33720-MEL-D20

Unavailable

3

BASE, LICENSE

33721-MEE-003

Unavailable

4

SOCKET, LICENSE

33722-MEL-D20

Unavailable

5

COVER, LICENSE

33723-MEE-003

$40.05

6

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.39

7

REFLECTOR, REFLEX

33741-MZ7-003

$21.30

8

COLLAR, CHAIN GUARD

52157-GC5-000

$4.48

9

COLLAR, RIVETING

61102-329-300

$2.92

10

FENDER A, RR.

80100-MEE-A00

$25.92

11

COLLAR, FENDER SETTING

80103-MCJ-750

$2.57

12

STAY, R. FENDER A

80115-MEL-A20

Unavailable

13

STAY, L. FENDER A

80116-MEL-A20

$39.59

14

STAY, LICENSE LIGHT BRACKET

80118-MEL-670

$7.03

15

FENDER C, RR.

80120-MEL-000

$20.48

16

BRACKET, LICENSE LIGHT

80201-MEE-A00

$7.10

17

BRACKET, NUMBER PLATE

84700-MEE-670

Unavailable

18

RUBBER, LICENSE LIGHT

84703-MEE-D00

Unavailable

19

COLLAR, RR. FENDER STAY

80123-MEL-A20

$5.87

20

SCREW, PAN (5X20)

90103-MBG-000

$2.02

21

SCREW, PAN (5X21)

90108-MAT-000

$4.85

22

PLUG, CONE

90899-KL8-000

$3.26

23

CLIP (2X60)

91410-679-000

$10.06

24

SCREW, TAPPING (4X16)

93901-34410

$1.49

25

SCREW, TAPPING (4X10)

93913-14120

$1.49

26

SCREW, TAPPING (4X10)

93903-24280

$1.49

27

NUT, FLANGE (5MM)

94050-05000

$1.49

28

NUT, FLANGE (6MM)

94050-06070

$1.49

29

CLIP, WIRE (2X40)

94591-24000

$2.16

30

BOLT, FLANGE (6X25)

96300-06025-00

$1.49

31

RUBBER, SEAT HINGE

77218-GB2-720

$2.67

32

WASHER, PLAIN (6MM)

90525-428-900

$1.92

33

BOLT, FLANGE (6X25)

96300-06025-00

$1.49

34

GASKET, LENS

33729-MEE-003

Unavailable
