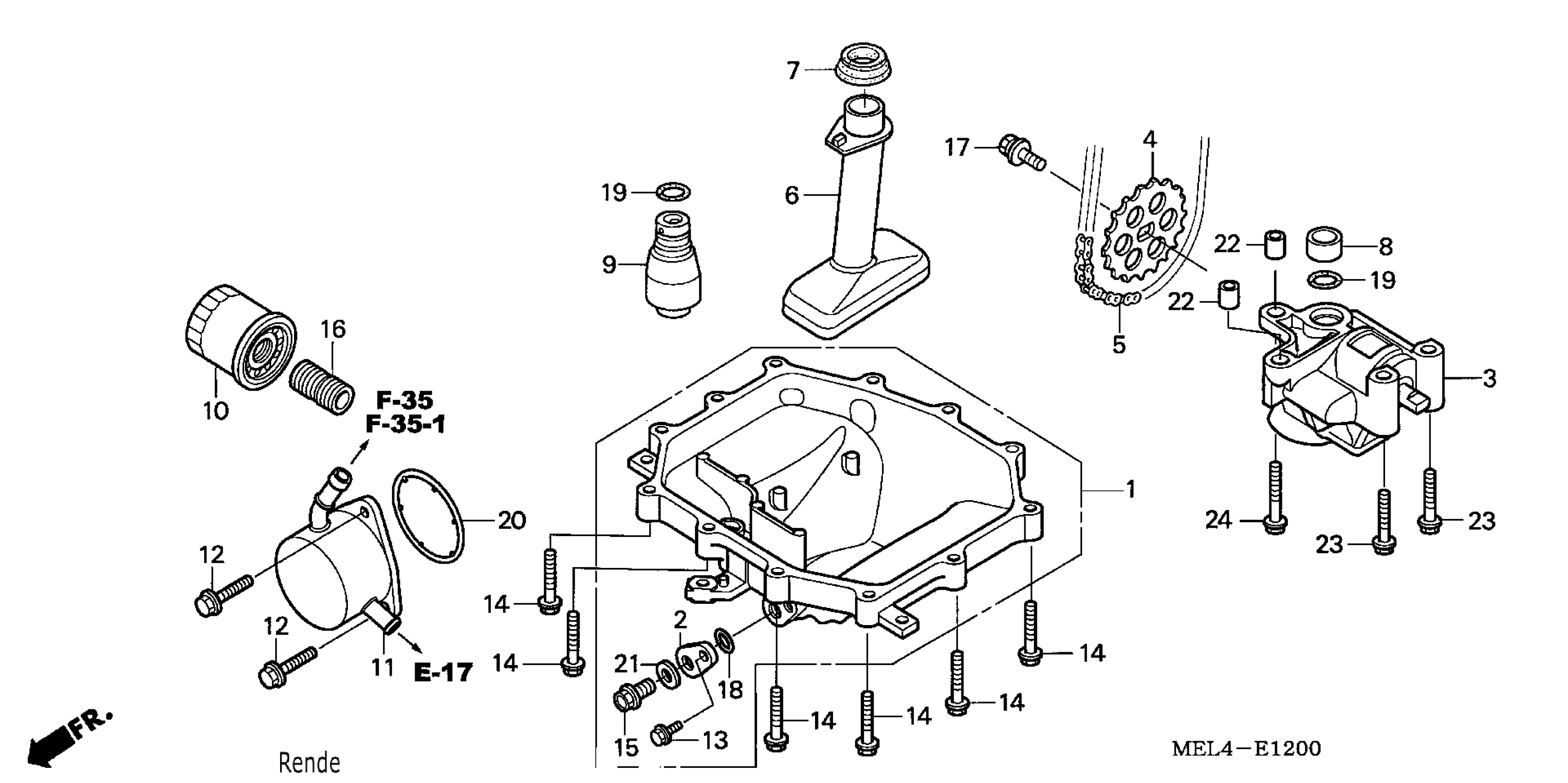

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 OIL PAN + OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11210-MEL-000

$367.28

2

BASE, OIL PAN DRAIN

11212-MEL-300

$22.92

3

PUMP ASSY., OIL

15100-MEL-000

$203.11

4

SPROCKET, OIL PUMP DRIVEN (25T)

15134-MEL-000

$46.30

5

CHAIN, OIL PUMP (68L) (BORG WARNER)

15141-MEL-003

$18.52

6

STRAINER, OIL

15150-MEL-000

Unavailable

7

GASKET, OIL STRAINER

15154-MAT-000

$6.16

8

COLLAR, O-RING

15155-MEL-000

$3.75

9

VALVE ASSY., RELIEF

15220-MEL-D20

Unavailable

10

FILTER, OIL (WAKO FILTER) | Use up to Engine SN 2313883 This part replaces 15410-MCJ-003.

15410-MFJ-D02

$15.84

10

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$15.84

11

COOLER, OIL

15700-MEL-000

Unavailable

12

BOLT, FLANGE (6X18) (NSHF)

90006-GHB-640

$1.79

13

BOLT, FLANGE (6X16) (NSHF)

90006-GHB-630

$1.80

14

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.92

15

BOLT, DRAIN PLUG (12MM)

90012-MEL-000

$3.47

16

BOSS, OIL FILTER

90019-MB0-000

$8.61

17

BOLT-WASHER (6X12)

90021-MM5-000

$5.12

18

O-RING (21.9X1.8)

91306-MEL-003

$2.66

19

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.67

19

O-RING (14.8X2.2)

91313-MG7-004

$3.67

20

O-RING, OIL COOLER

91354-MCT-003

$7.93

21

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

22

PIN, DOWEL (8X14)

94301-08140

$2.25

23

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

24

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

25

FILTER SET, OIL | (Optional). Use up to Engine SN 2313883 This part replaces 15010-MCE-H50.

15010-MKR-305

$20.30

25

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$20.30
