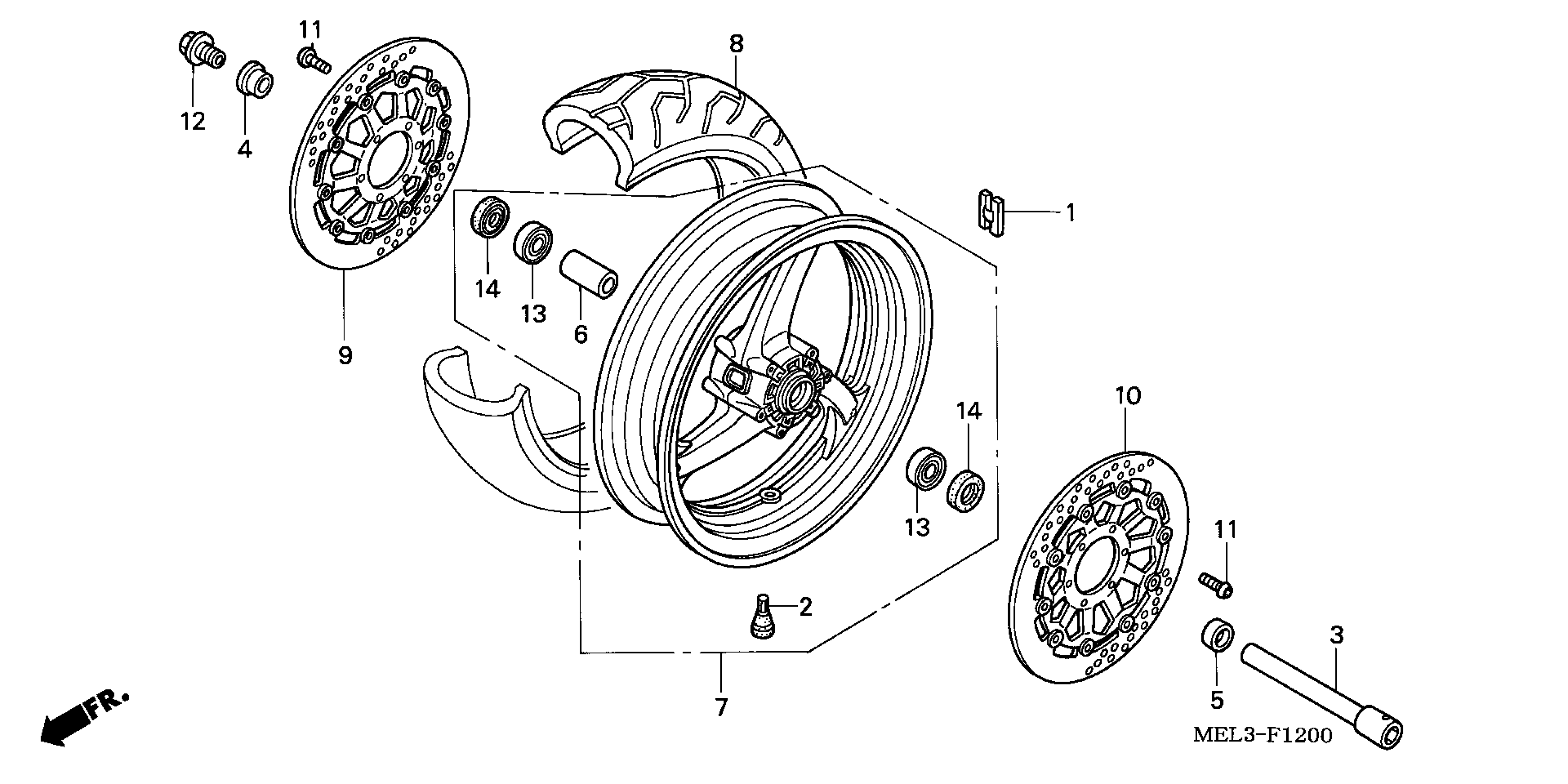

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 FRONT WHEEL Diagram

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

VALVE, RIM (PIRELLI)

42753-MCF-008

$7.28

VALVE, RIM (BS)

42753-ML7-003

$12.74

AXLE, FR. WHEEL

44301-MCJ-000

$91.64

COLLAR, R. FR. WHEEL SIDE

44311-MEL-D20

$12.19

COLLAR, L. FR. WHEEL SIDE

44312-MCJ-750

$8.78

COLLAR, FR. WHEEL DISTANCE

44620-MCJ-000

$21.08

WHEEL SUB-ASSY., FR. *YR250* (VIBRANT ORANGE)

44650-MEL-D10ZA

Unavailable

TIRE, FR. (120/70ZR17) (M/C 58W) (BS)

44711-MEL-D21

Unavailable

TIRE, FR. (120/70ZR17) (M/C 58W) (PIRELLI) (NOT AVAILABLE)

44711-MEL-D22

Unavailable

DISK, R. FR. BRAKE

45120-MEL-D41

$685.89

DISK, L. FR. BRAKE

45220-MEL-D41

$685.89

BOLT, DISK (6X17)

90106-MBB-000

$3.65

BOLT, FR. AXLE

90305-MEL-D20

$12.62

BEARING, RADIAL BALL (6005)

91052-MCF-003

$15.55

DUST SEAL (31X47X7)

91252-MCJ-003

$9.00
