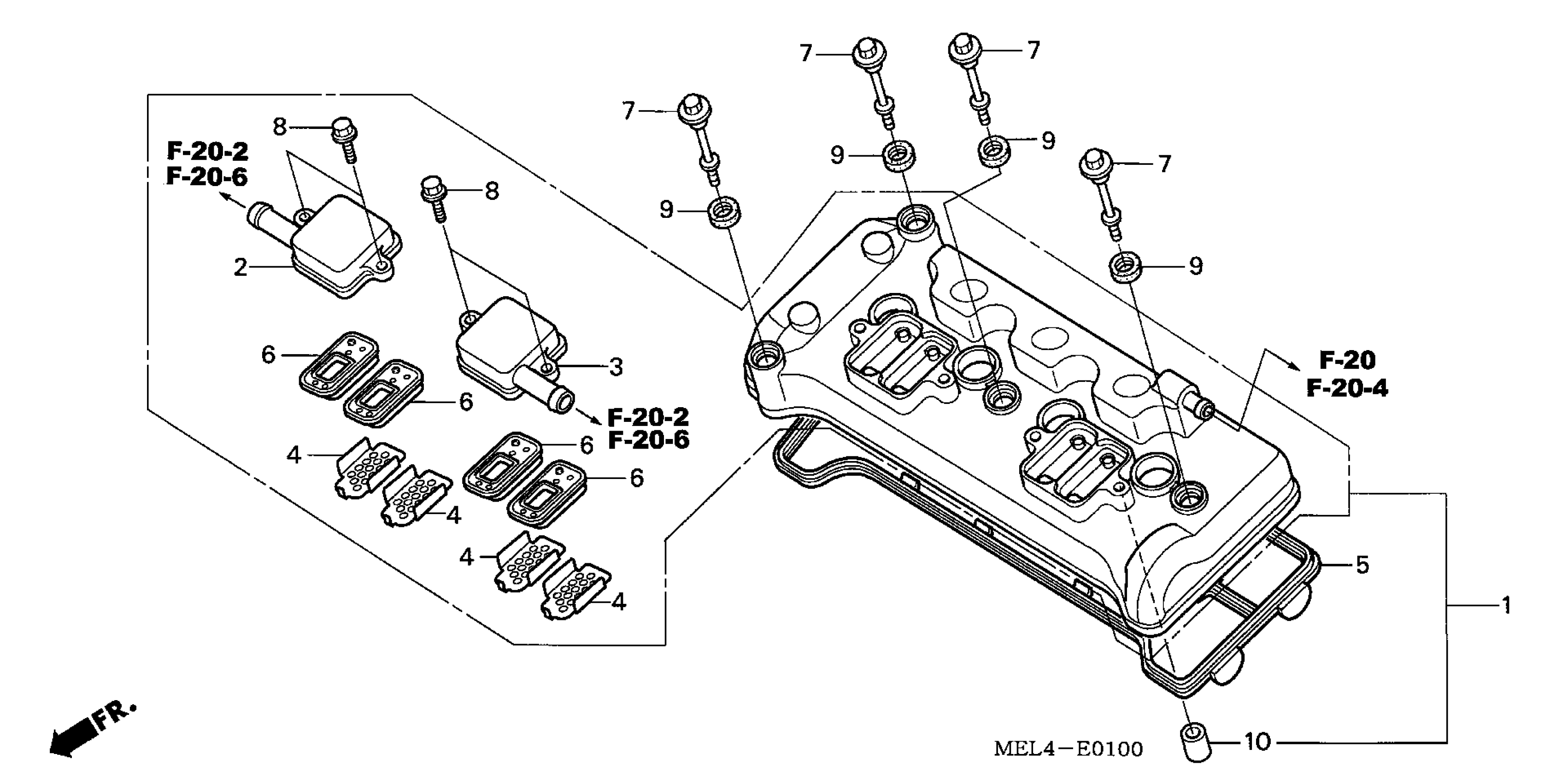

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 CYLINDER HEAD COVER Diagram

COVER ASSY., CYLINDER HEAD

12310-MEL-000

Unavailable

COVER, R. REED VALVE

12331-MEL-000

$24.88

COVER, L. REED VALVE

12332-MEL-000

Unavailable

PLATE, PORT (AI)

12341-MAT-750

$12.74

GASKET, HEAD COVER

12391-MCJ-000

$44.81

VALVE, REED This part replaces 18601-MCJ-000.

18601-MCJ-003

$13.01

VALVE, REED

18601-MCJ-003

$13.01

BOLT, HEAD COVER

90002-MY5-850

$8.51

BOLT, FLANGE (6X22) (NSHF)

90004-GHB-660

$3.52

RUBBER, MOUNTING

90543-MV9-670

$4.60

PIN, DOWEL (8X14)

94301-08140

$2.04
