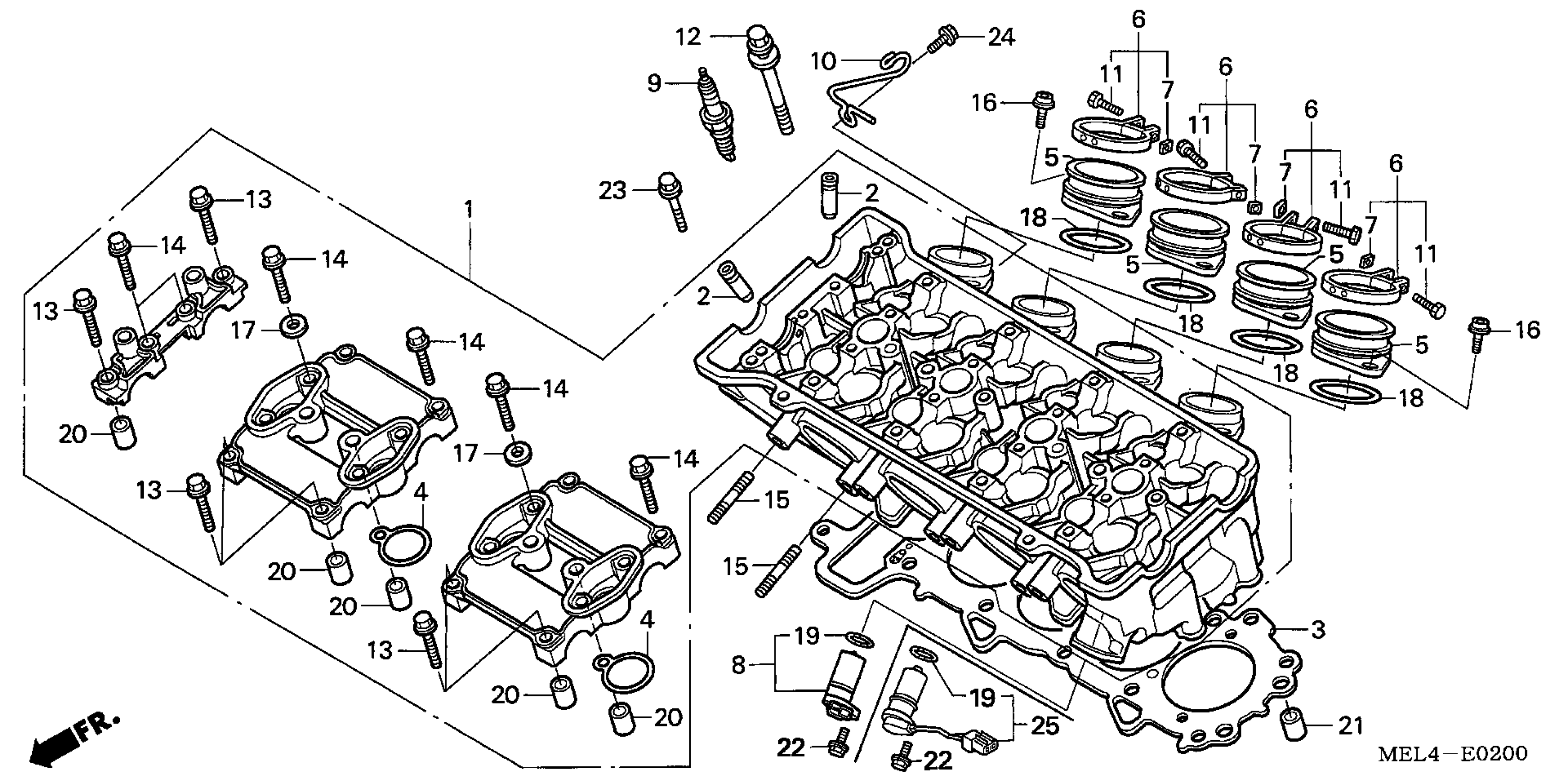

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-MEL-D20

Unavailable

GUIDE, VALVE (OVER SIZE)

12204-MEL-305

$15.17

GASKET, CYLINDER HEAD

12251-MEL-D21

$80.66

GASKET, PLUG HOLE

12395-MCJ-000

$4.94

INSULATOR, THROTTLE BODY

16210-MEL-D20

$42.31

BAND, INSULATOR

16218-MEL-000

$6.10

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

SPARK PLUG (IMR9C-9HES) (NGK)

31912-MEL-003

$17.73

SPARK PLUG (VUH27ES) (DENSO)

31922-MEL-003

$29.27

BOLT, RECESSED (5X22)

90005-MEL-000

$1.49

BOLT-WASHER (9X105)

90007-MEL-003

$4.74

BOLT, FLANGE (6X45.5)

90017-MA6-000

$3.35

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.92

BOLT, STUD (8X24)

90035-MM5-000

$5.12

BOLT, FLANGE SOCKET (6X16)

90071-MEL-000

$2.25

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

O-RING (44.3X2.5)

91301-MEL-003

$4.45

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.93

PIN, DOWEL (8X20)

94301-08200

$2.25

PIN, DOWEL (10X16)

94301-10160

$2.28

BOLT, FLANGE (6X18)

95701-06018-07

$1.55

BOLT, FLANGE (6X45)

90021-MFA-D00

$2.49

PULSER ASSY., CAM

36140-MEL-D21

$61.51
