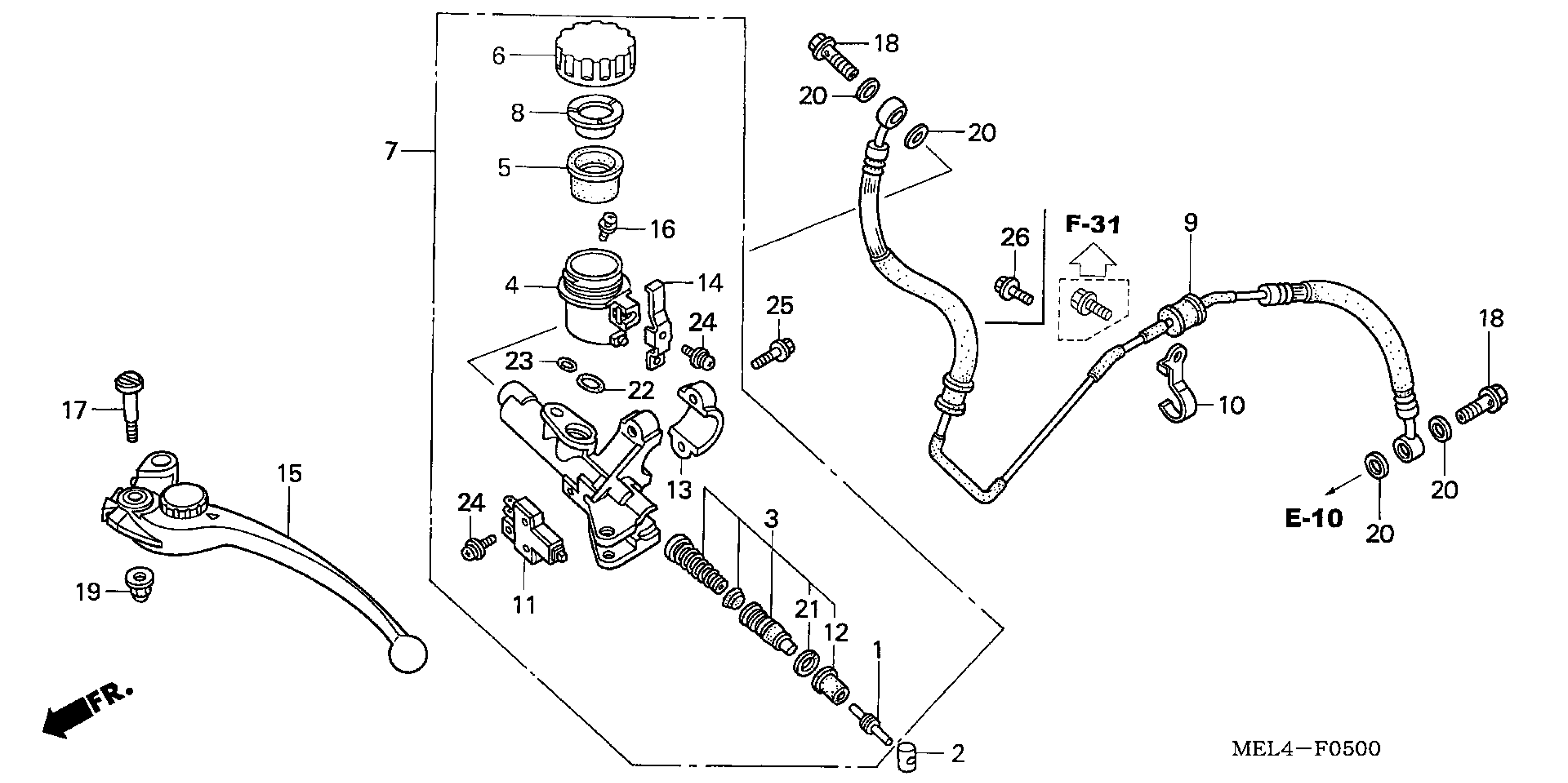

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MAT-E01

$17.39

2

BUSH

22885-MB0-006

$11.63

3

PISTON SET, MASTER CYLINDER

22886-MAT-E01

$51.22

4

CUP, OIL

22887-MBB-006

$35.76

5

DIAPHRAGM

22888-MR7-006

$13.62

6

CAP, CLUTCH OIL CUP

22889-MR7-006

$34.83

7

MASTER CYLINDER SUB-ASSY., CLUTCH

22890-MEL-016

Unavailable

8

PLATE, DIAPHRAGM

22890-MR7-006

$10.46

9

PIPE, CLUTCH

22900-MEL-000

Unavailable

10

CLAMP, RR. CLUTCH PIPE

22912-MEL-D30

Unavailable

11

SWITCH ASSY., CLUTCH

35330-MB0-003

$16.34

12

BOOT

45504-MAT-E01

$9.57

13

HOLDER, MASTER CYLINDER

45517-MEL-006

Unavailable

14

PLATE, STOP

45535-MR8-901

$5.07

15

LEVER ASSY., L. HANDLE This part replaces 53180-MEJ-006.

53180-MEJ-016

$45.68

16

SCREW, TRIPLE (4X11)

90101-MR7-006

$2.83

17

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

18

BOLT, OIL (10X22)

90145-MS9-612

$6.82

19

NUT, CAP (6MM)

90201-415-000

$1.96

20

WASHER, OIL BOLT

90545-300-000

$3.72

21

CIRCLIP

90651-MA5-671

$2.38

22

O-RING (14.8X2.4)

91212-422-006

Unavailable

23

O-RING

91355-MG9-006

Unavailable

24

SCREW-WASHER (4X12)

93893-04012-07

$1.22

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

25

BOLT, FLANGE (6X22)

96001-06022-07

$1.68

26

BOLT, FLANGE (6X10)

96001-06010-07

$1.48
