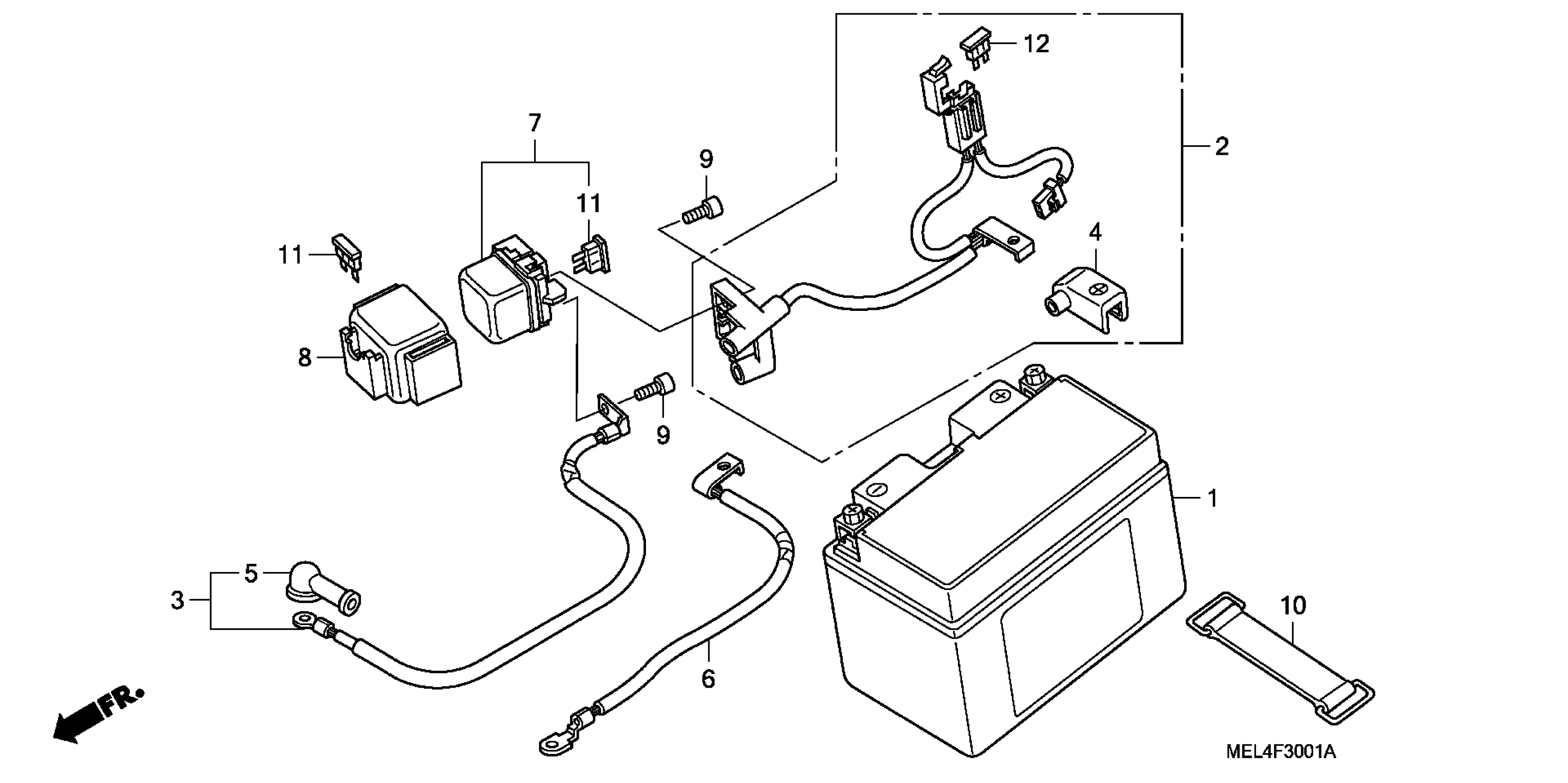

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 BATTERY (2) Diagram

#

Description

Price

1

BATTERY (YTZ10S) (YUASA) (MSDS) This part replaces 31500-MCJ-642AH.

31500-MCJ-643

$172.26

1

BATTERY (YTZ10S) This part replaces 31500-MCL-013.

31500-MCL-023

$172.26

1

BATTERY (YTZ10S) This part replaces 31500-MEE-A02.

31500-MCL-023

$172.26

2

CABLE, STARTER BATTERY

32401-MEL-D20

Unavailable

3

CABLE, STARTER MOTOR

32410-MEL-D30

Unavailable

4

COVER, BATTERY TERMINAL

32411-MEL-D20

$4.92

5

COVER, STARTER MOTOR TERMINAL

32411-230-000

$6.40

5

COVER, STARTER MOTOR TERMINAL This part replaces 32411-253-000.

32411-230-000

$6.40

6

CABLE, BATTERY GROUND

32601-MEL-D20

Unavailable

7

SWITCH ASSY., STARTER MAGNETIC

35850-MR5-007

$120.16

8

RUBBER, SHOCK

35856-KBH-000

$12.21

9

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

10

BAND B2, BATTERY

95012-13001

$5.28

11

FUSE, BLADE (30A)

98200-33000

$1.49

12

FUSE, MINI (20A)

98200-42000

$1.49
