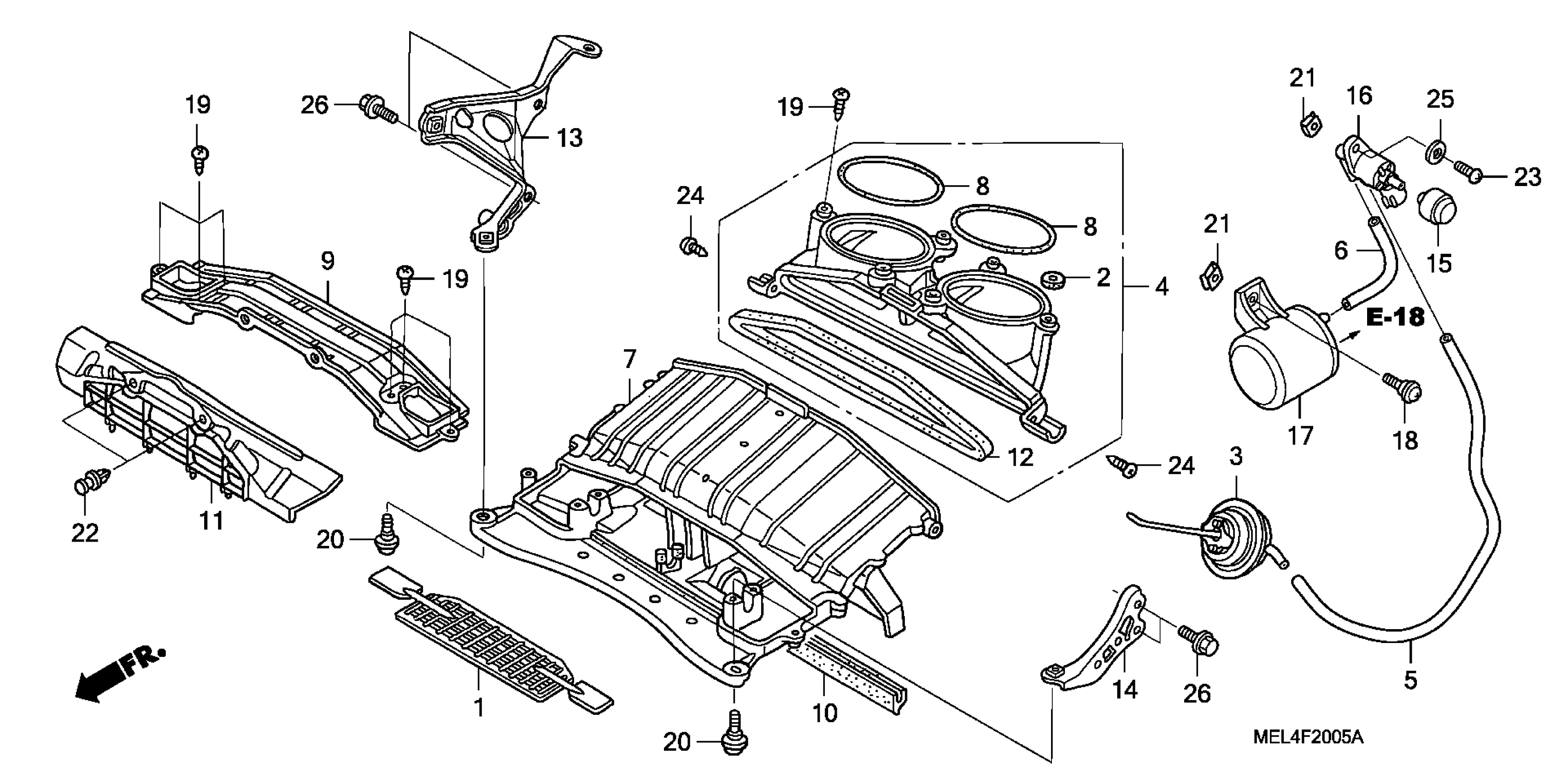

Honda CBR1000RR/R2A (07) REPSOL EDITION, JPN, VIN# JH2SC574-7M300001 AIR INTAKE DUCT + SOLENOID VALVE (2) Diagram

VALVE, AIR CONTROL

17204-MEL-000

Unavailable

SEAL B, AIR CLEANER HOUSING

17223-MEL-300

$3.78

DIAPHRAGM, CONTROL VALVE

17238-MEL-D20

Unavailable

JOINT, AIR IN.

17240-MEL-D20

Unavailable

TUBE (4.5X245)

17241-MEL-D20

Unavailable

TUBE (3.5X75)

17242-MEL-D20

Unavailable

DUCT, AIR IN.

17251-MEL-D20

Unavailable

SEAL G, AIR CLEANER

17254-MEL-300

$4.13

COVER, AIR IN. DUCT

17257-MEL-D20

Unavailable

RUBBER, SEAL

17259-MEL-300

Unavailable

GRILLE, AIR IN. DUCT

17260-MEL-D20

Unavailable

SEAL, FR. DUCT

17275-MEL-300

$16.58

STAY, R. RADIATOR (UPPER)

19160-MEL-D20

$19.30

STAY, L. RADIATOR (UPPER)

19170-MEL-D20

Unavailable

FILTER ASSY., SOLENOID VALVE

36138-PR7-A01

$34.18

VALVE ASSY., BYPASS CONTROL SOLENOID

36163-PV0-004

$294.10

TANK, VACUUM

36625-P0A-A01

$69.98

SCREW, SPECIAL (5X12)

90105-MB1-000

$2.92

SCREW, TAPPING (5X16)

90107-MEL-D20

Unavailable

BOLT, FR. DISK COVER

90114-MAC-780

$3.10

NUT, CLIP (5MM)

90312-MT3-000

$4.57

CLIP, PANEL FIXING *NH1* (BLACK)

91549-MW0-790ZA

$4.24

SCREW, PAN (5X16)

93500-05016-0G

$1.49

SCREW, TAPPING (5X16)

93903-25380

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
