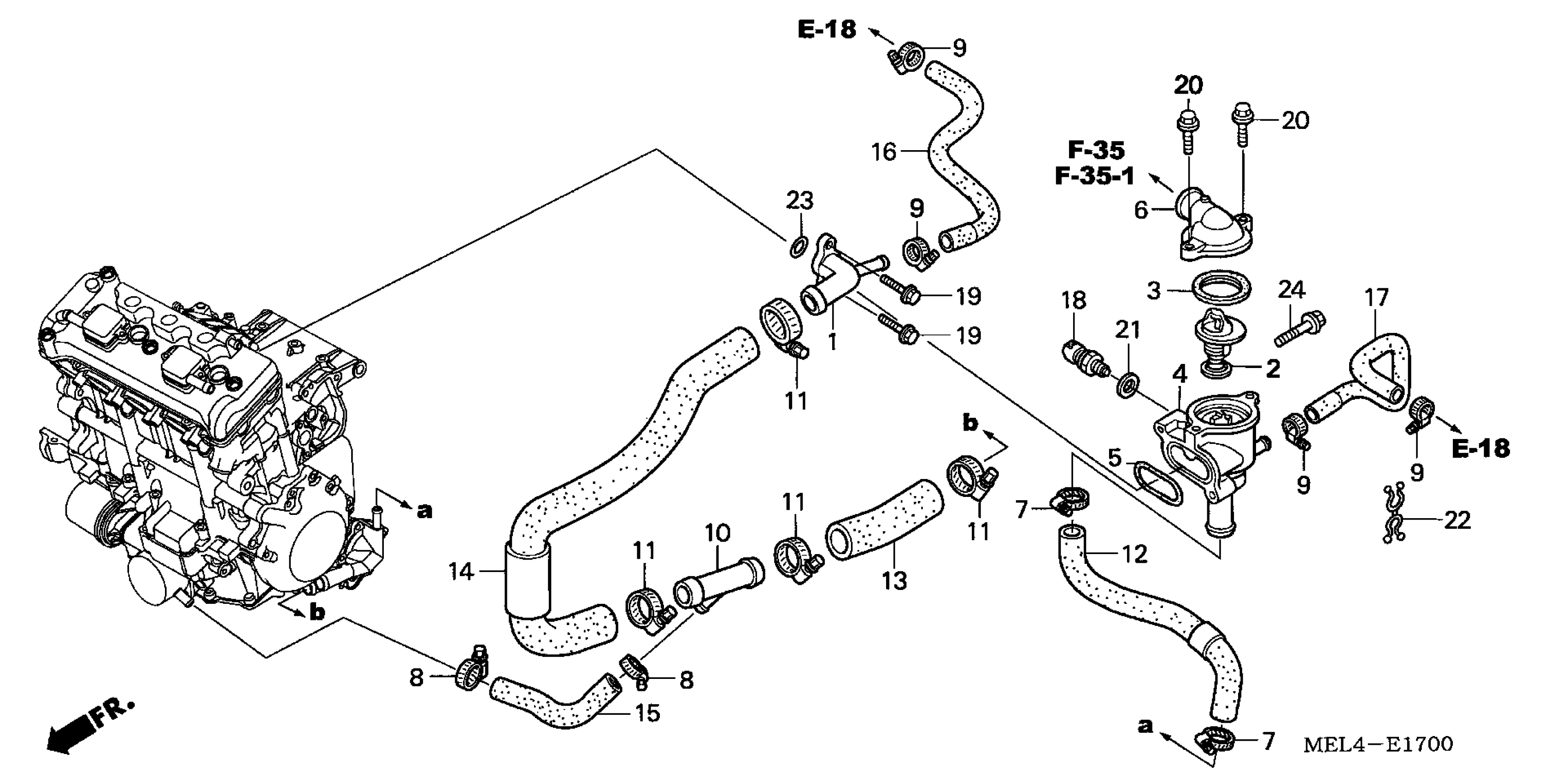

Honda CBR1000RR/R2A (05) REPSOL EDITION, JPN, VIN# JH2SC574-5M100001 TO JH2SC574-5M199999 THERMOSTAT Diagram

JOINT, WATER

19060-MEL-000

$67.99

THERMOSTAT ASSY.

19300-MCJ-003

$46.64

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

CASE, THERMOSTAT

19311-MEL-305

Unavailable

GASKET, THERMOSTAT CASE

19312-MBW-000

$3.48

COVER, THERMOSTAT

19315-MEL-000

Unavailable

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

CLAMP A, WATER HOSE

19505-KS6-700

$10.57

CLAMP, RADIATOR HOSE

19507-MAT-000

$9.66

JOINT, HOSE (THREE-WAY)

19507-MEE-000

$10.56

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.40

HOSE, BYPASS

19523-MEL-000

$18.00

HOSE A, CYLINDER BLOCK

19524-MEL-000

Unavailable

HOSE B, CYLINDER BLOCK

19525-MEL-000

$18.14

HOSE E, CYLINDER BLOCK

19526-MEL-000

Unavailable

HOSE C, WATER

19527-MEL-000

$13.32

HOSE D, WATER

19528-MEL-000

$13.32

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$27.61

BOLT, FLANGE (6X20)

90010-GHB-650

$1.41

BOLT, FLANGE (6X23) (CT200)

90018-ZE1-000

$1.59

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

CLIP, WIRE HARNESS

90658-SA0-003

$8.57

O-RING (24.5X2)

91302-MEL-003

$2.35

BOLT, FLANGE (6X35)

95701-06035-00

$1.71
