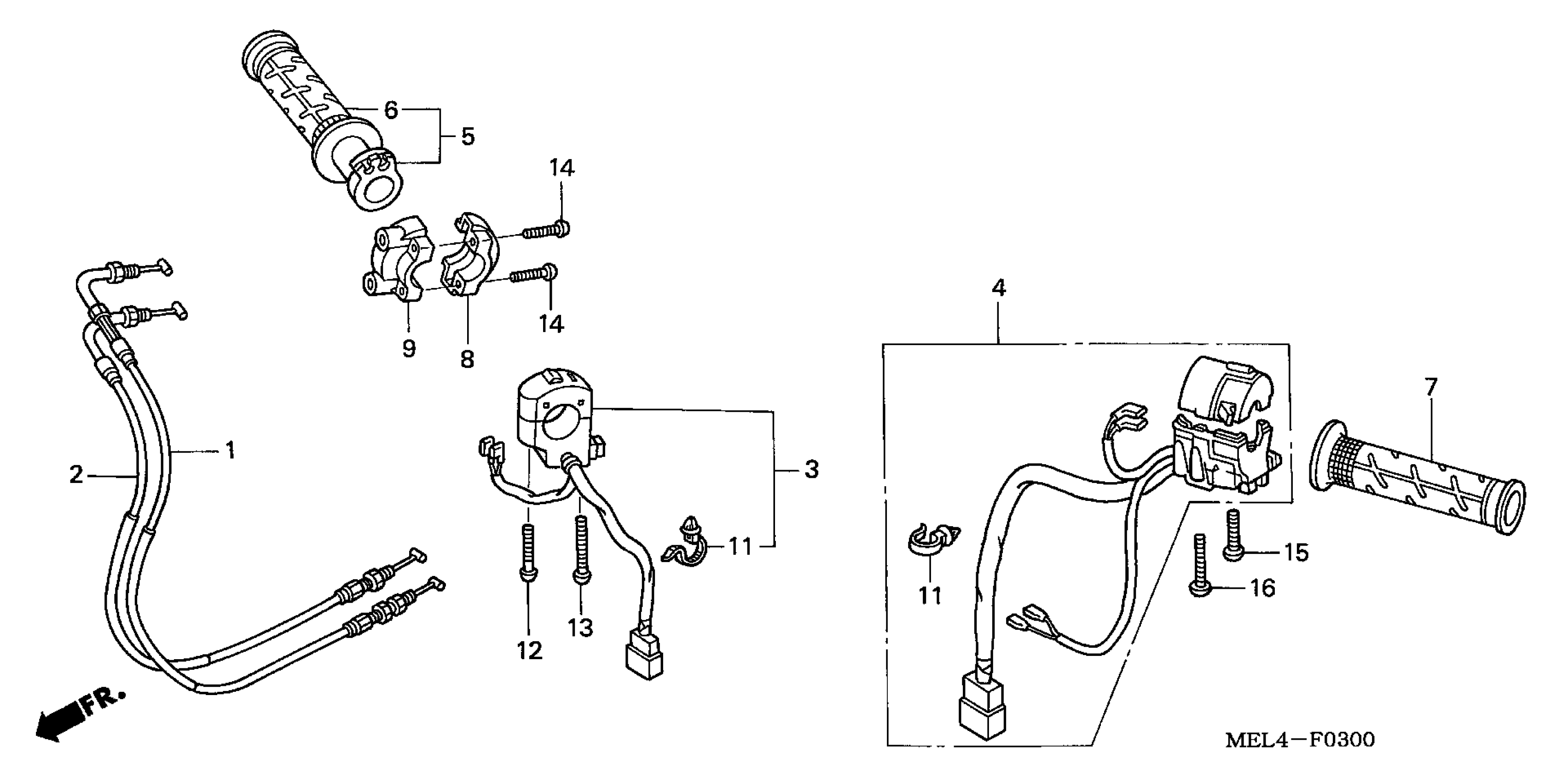

Honda CBR1000RR/R2A (05) REPSOL EDITION, JPN, VIN# JH2SC574-5M100001 TO JH2SC574-5M199999 SWITCH + CABLE Diagram

CABLE A, THROTTLE

17910-MEL-000

$24.99

CABLE B, THROTTLE

17920-MEL-000

$24.99

SWITCH ASSY., STARTER STOP This part replaces 35130-MEL-003.

35130-MEL-J00

$48.38

SWITCH ASSY., STARTER STOP

35130-MEL-J00

$48.38

SWITCH ASSY., TURN SIGNAL

35200-MEL-670

$120.76

GRIP ASSY., THROTTLE

53140-MCF-000

$30.83

GRIP, R. HANDLE

53165-MY9-890

Unavailable

GRIP, L. HANDLE

53166-MY9-890

$16.22

HOUSING, THROTTLE (UPPER)

53167-MV4-000

$33.66

HOUSING, THROTTLE (LOWER)

53168-MV4-000

$36.80

CLIP, HARNESS BAND (96.9MM) (NATURAL)

91540-S0A-003

$4.12

SCREW, PAN (4X32)

93500-04032-0G

$0.43

SCREW, PAN (4X45)

93500-04045-0G

$0.78

SCREW, PAN (5X22)

93500-05022-0G

$0.84

SCREW, PAN (5X30)

93500-05030-0G

Unavailable

SCREW, PAN (5X40)

93500-05040-0G

$0.88
