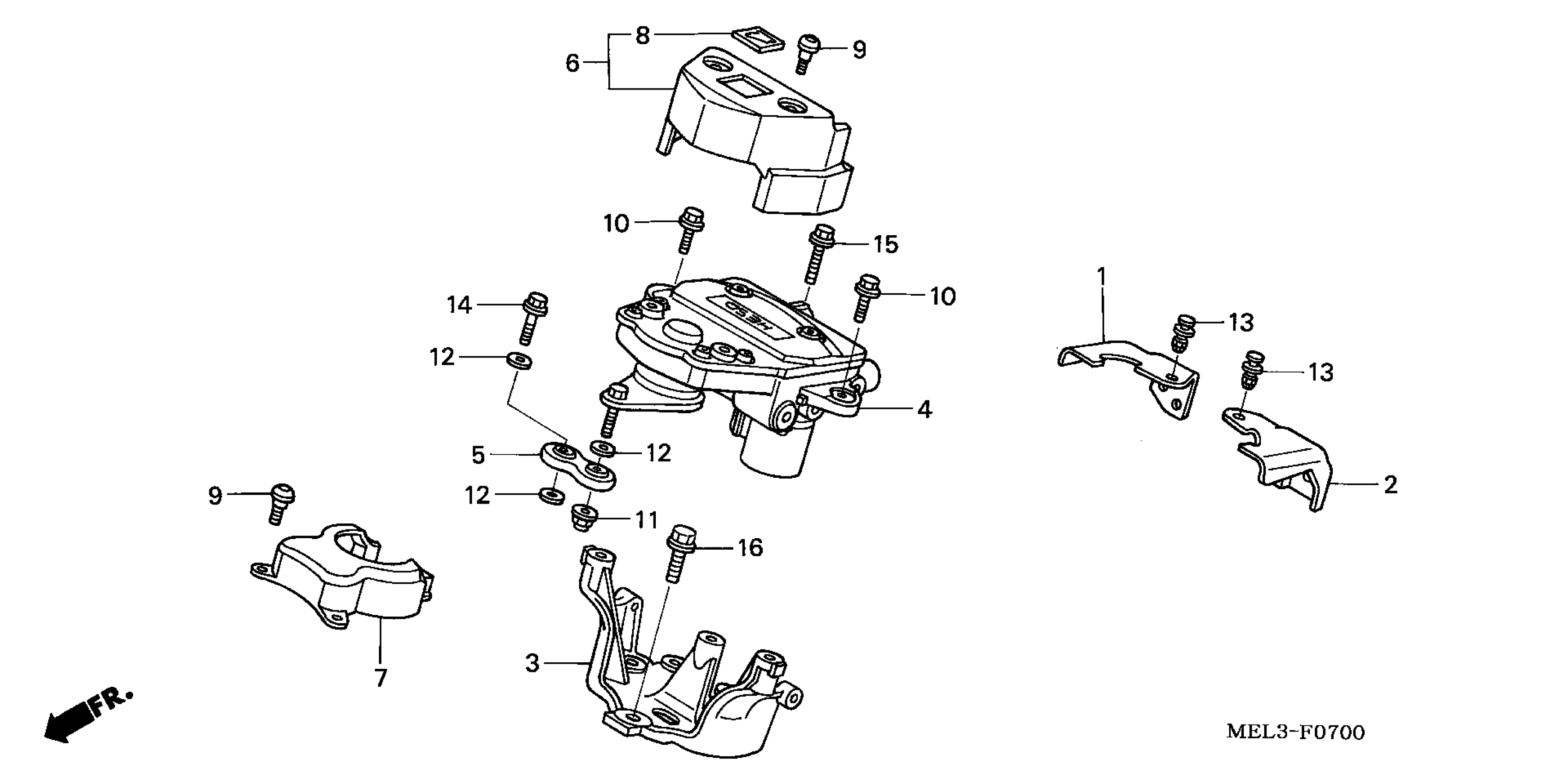

Honda CBR1000RR/R2A (05) REPSOL EDITION, JPN, VIN# JH2SC574-5M100001 TO JH2SC574-5M199999 STEERING DAMPER Diagram

GUIDE, R. HARNESS CLAMP

32108-MEL-000

Unavailable

GUIDE, L. HARNESS CLAMP

32118-MEL-000

Unavailable

STAY, STEERING DAMPER

50120-MEL-000

Unavailable

DAMPER ASSY., STEERING This part replaces 53700-MEL-013.

53700-MEL-023

$832.18

DAMPER ASSY., STEERING

53700-MEL-023

$832.18

ARM, SECOND This part replaces 53731-MEL-003.

53731-MEL-013

$40.10

COVER, STEERING DAMPER

53740-MEL-000

$13.93

TOP COVER, STEERING DAMPER

53741-MEL-000

Unavailable

EMBLEM, PRODUCT (MARUI)

86150-GFC-901

$2.80

SCREW, PAN (5X13)

90112-MBS-000

$2.24

BOLT, FLANGE (6X18)

90112-MEL-000

$1.63

NUT, U (6MM)

90301-473-003

$3.89

WASHER (6MM)

90443-MEL-000

$2.21

CLIP, PANEL FIXING

91549-MCA-000

$1.90

BOLT, FLANGE (6X20)

96001-06020-00

$1.15

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

BOLT, FLANGE (8X22)

96300-08022-00

$2.00
