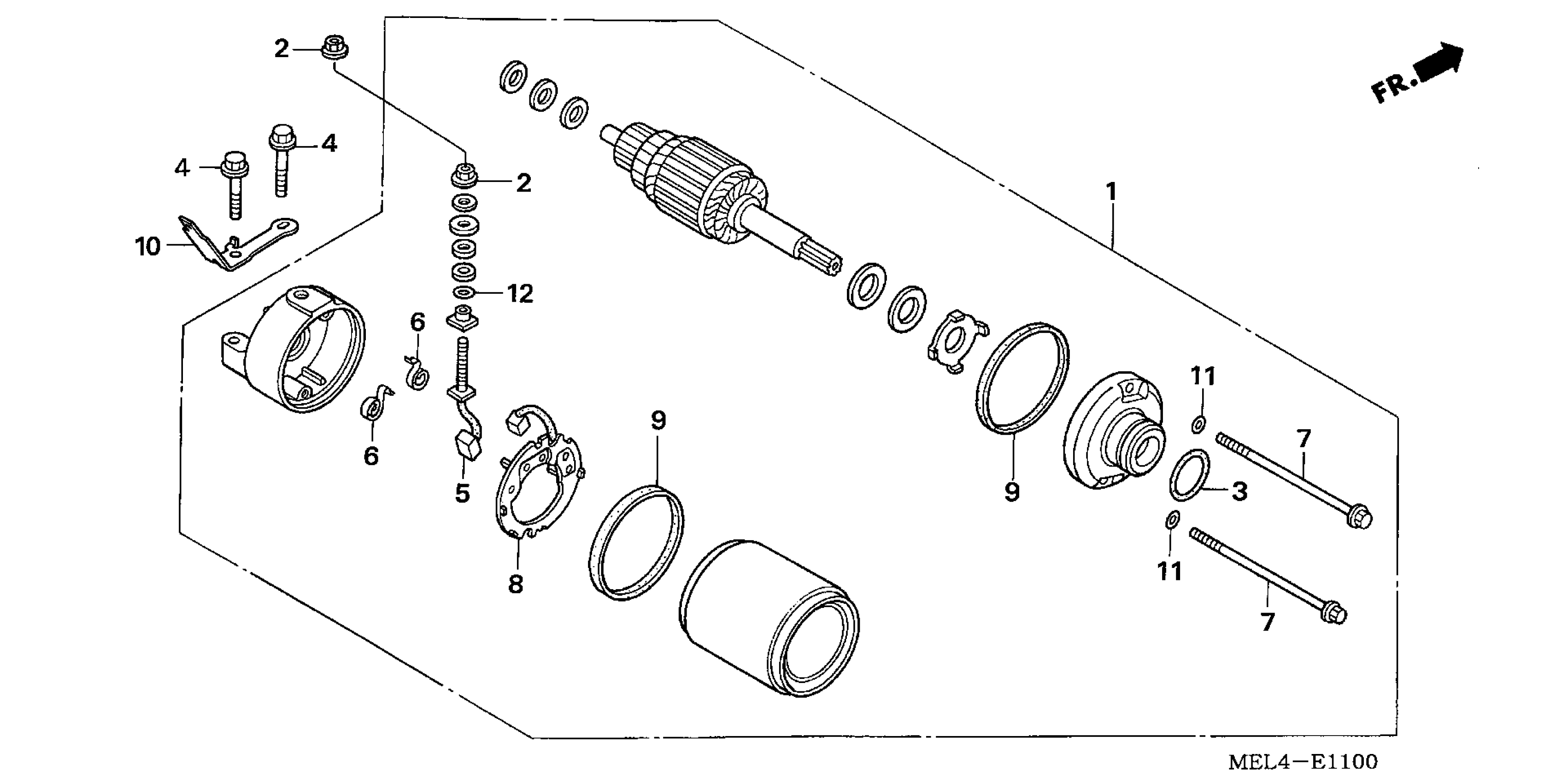

Honda CBR1000RR/R2A (05) REPSOL EDITION, JPN, VIN# JH2SC574-5M100001 TO JH2SC574-5M199999 STARTING MOTOR Diagram

#

Description

Price

1

STARTER MOTOR ASSY. This part replaces 31200-MEL-000.

31200-MEL-003

$468.30

1

STARTER MOTOR ASSY.

31200-MEL-003

$468.30

2

NUT-WASHER (6MM)

90071-MB0-000

$1.88

3

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

3

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

4

BOLT, FLANGE (6X25)

95801-06025-08

$1.64
