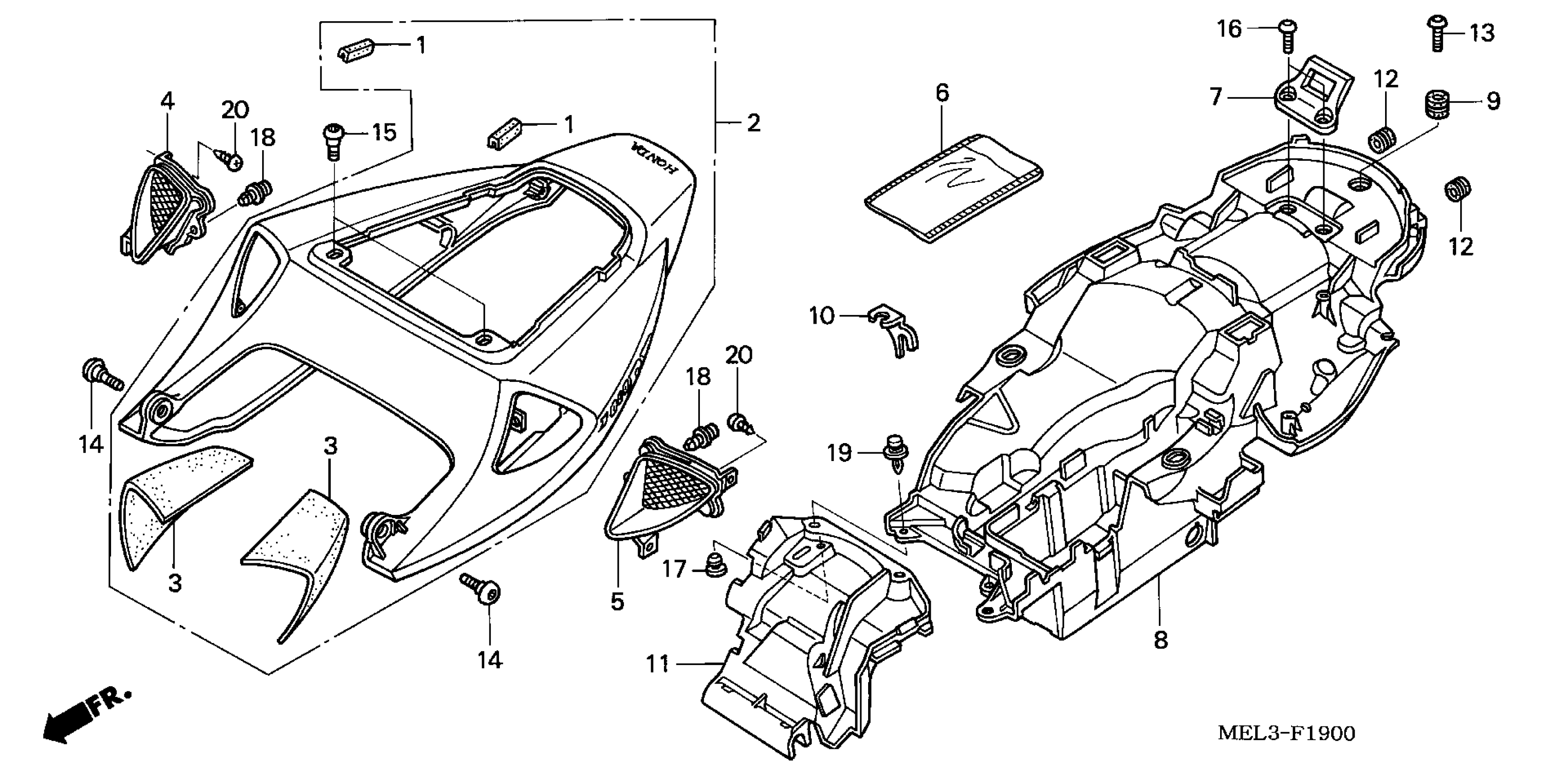

Honda CBR1000RR/R2A (05) REPSOL EDITION, JPN, VIN# JH2SC574-5M100001 TO JH2SC574-5M199999 SEAT COWL (1) Diagram

RUBBER, PROTECTOR

64121-MEL-000

$2.03

COWL SET, RR. SEAT (TYPE1) (WL)

77210-MEL-D10ZA

Unavailable

SEAL, RR. SEAT COWL

77221-MEL-300

$12.97

DUCT, R. SEAT COWL

77223-MEL-D00

$15.85

DUCT, L. SEAT COWL

77224-MEL-D00

$15.85

BAG, SERVICE BOOK

77251-GR1-000

$4.30

BRACKET, SEAT HOOK

77310-MEE-940

$12.28

FENDER B, RR.

80105-MEL-020

$162.09

RUBBER, RR. FENDER SETTING

80107-GE0-710

$3.10

STAY, LOCK CABLE

80107-MEL-D20

Unavailable

STAY, LOCK CABLE This part replaces 80107-MEL-000.

80107-MEL-D20

Unavailable

PROTECTOR, HEAT

80110-MEL-000

$29.56

GROMMET, SIDE COVER

83501-MG7-000

$2.61

BOLT, SPECIAL (6X22)

90085-KFB-000

$3.42

SCREW, SPECIAL (6MM)

90106-KCZ-000

$4.87

SCREW, PAN (6X11)

90106-KY2-701

$4.24

SCREW, PAN (6X14)

90118-MR1-000

$3.10

RUBBER, PROTECTOR

90572-MEL-000

$2.54

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

CLIP, BODY COVER

90683-GR1-003

$2.92

SCREW, TAPPING (4X10)

93903-24280

$1.49
