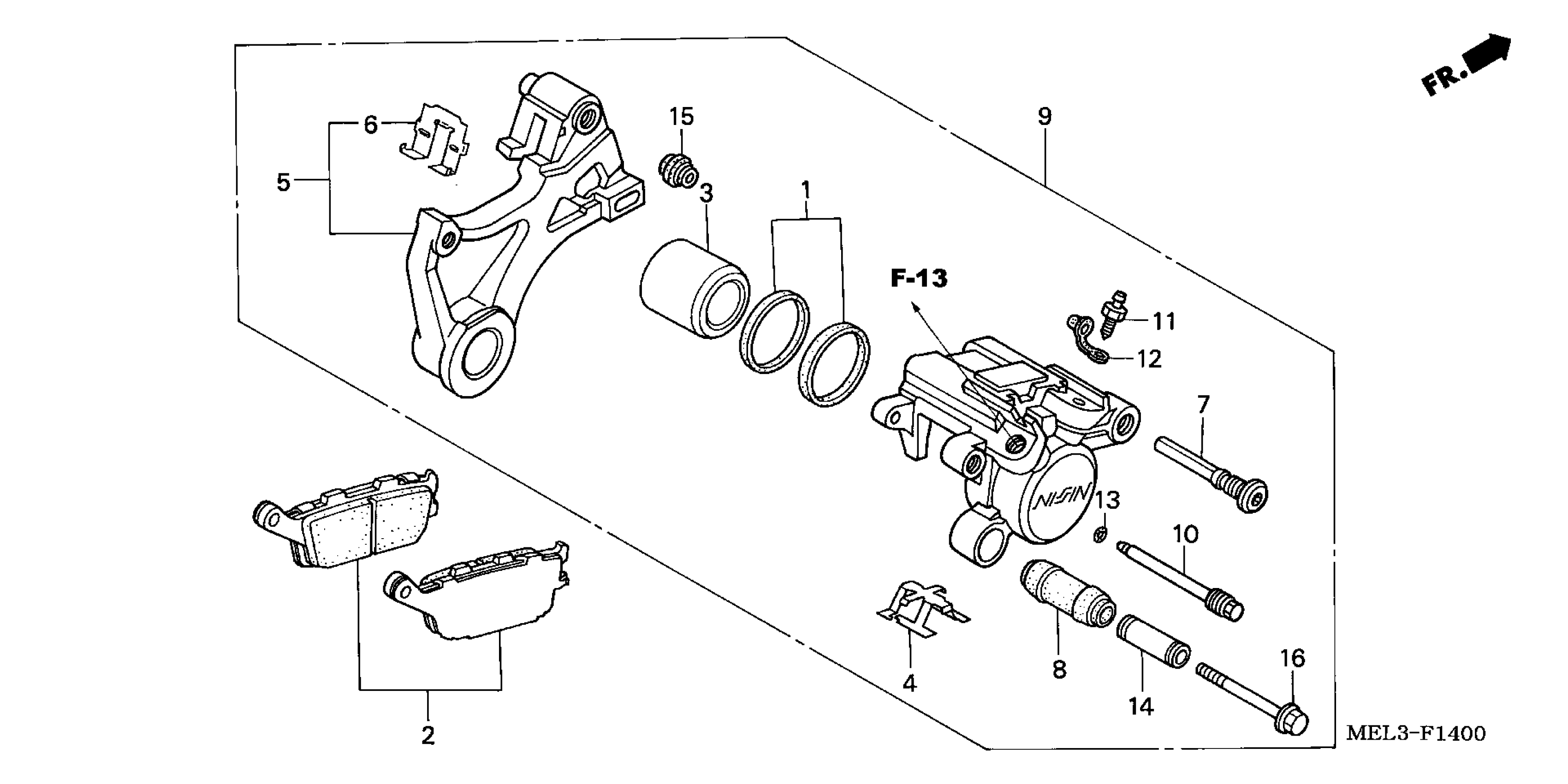

Honda CBR1000RR/R2A (05) REPSOL EDITION, JPN, VIN# JH2SC574-5M100001 TO JH2SC574-5M199999 REAR BRAKE CALIPER (1) Diagram

SEAL SET, PISTON

06451-443-405

$13.23

PAD SET, RR. This part replaces 43105-MW0-405.

43105-MW0-425

$53.45

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$53.45

PISTON

43107-MCJ-006

Unavailable

SPRING, PAD

43108-MBB-006

$6.19

BRACKET, RR. BRAKE

43110-MEL-006

Unavailable

RETAINER, RR. BRACKET

43112-MCF-006

$10.85

BOLT, PIN

43131-KW3-006

$10.29

BOOT, SLEEVE

43132-KFG-J21

Unavailable

CALIPER SUB-ASSY., RR.

43150-MEL-006

Unavailable

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

RING, STOPPER

45111-MAJ-G41

$3.80

SLEEVE

45111-MA3-006

$13.38

BOOT B

45133-MA3-006

$5.46

BOLT, FLANGE (8X49)

90180-MN8-006

$6.07
