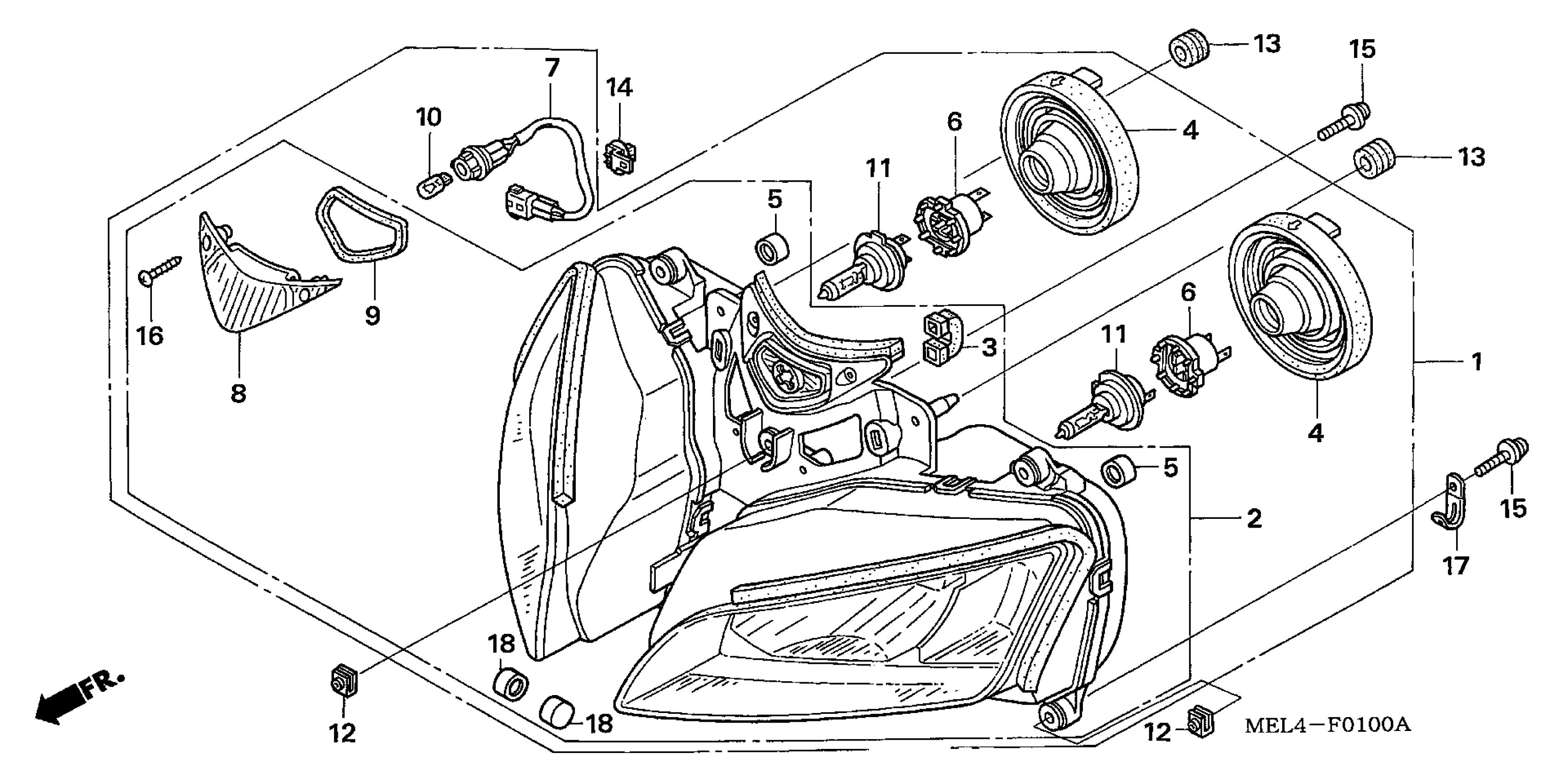

Honda CBR1000RR/R2A (05) REPSOL EDITION, JPN, VIN# JH2SC574-5M100001 TO JH2SC574-5M199999 HEADLIGHT Diagram

HEADLIGHT ASSY. (12V 55W) This part replaces 33100-MEL-671.

33100-MEL-672

Unavailable

HEADLIGHT ASSY. (12V 55W)

33100-MEL-672

Unavailable

HEADLIGHT UNIT This part replaces 33102-MEL-670.

33102-MEL-671

Unavailable

HEADLIGHT UNIT

33102-MEL-671

Unavailable

PIPE, CP

33103-MEL-000

$5.43

COVER, RUBBER

33112-KPB-003

$13.24

PIPE, CP

33113-MBW-D21

$2.64

SOCKET, HEADLIGHT

33130-MAT-611

$16.61

SOCKET

33140-MEL-640

$28.72

LENS, POSITION LIGHT

33181-MEL-000

$21.68

GASKET, SEAL

33184-MEL-000

$5.52

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

BULB, HEADLIGHT (12V 55W) (H7) (STANLEY)

34901-MAT-611

$27.40

NUT, CLIP (5MM)

90312-MT3-000

$4.57

RUBBER, CONTROL BOX

90852-898-000

$4.03

CLIP, CONNECTOR (BLACK)

91565-SEL-003

$3.67

SCREW-WASHER (5X22)

93894-05022-07

$1.49

SCREW, TAPPING (4X16)

93901-344J0

$2.21

CLIP, PULSER WIRE

32925-958-000

$2.92
