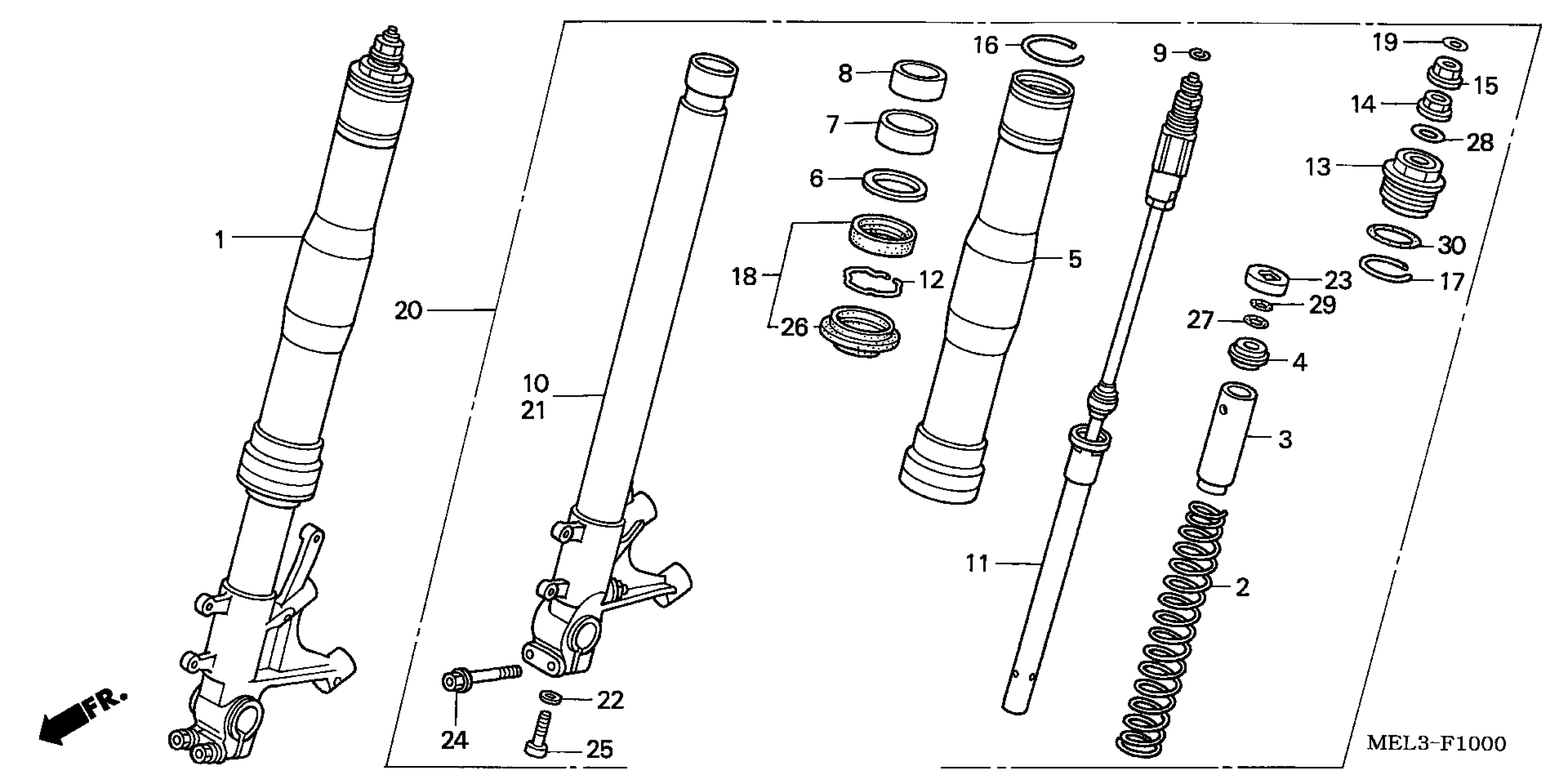

Honda CBR1000RR/R2A (05) REPSOL EDITION, JPN, VIN# JH2SC574-5M100001 TO JH2SC574-5M199999 FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR.

51400-MEL-003

Unavailable

2

SPRING, FR. FORK

51401-MEL-003

$72.74

3

COLLAR, SPRING

51403-MCF-003

$32.00

4

STOPPER, SPRING SEAT

51406-MW4-003

$7.90

5

TUBE (OUTER)

51410-MEL-003

Unavailable

6

RING, BACK-UP

51412-MEL-003

$5.58

7

BUSH, GUIDE This part replaces 51414-MAZ-003.

51414-MAZ-751

$7.14

8

BUSH, SLIDER This part replaces 51415-MAZ-003.

51415-MCF-003

$7.95

8

BUSH, SLIDER

51415-MCF-003

$7.95

9

RING B, STOPPER

51423-MCJ-751

$2.92

10

PIPE, R. SLIDE

51425-MEL-003

$373.98

11

DAMPER, FR.

51430-MEL-003

Unavailable

12

RING, OIL SEAL STOPPER

51447-KA4-711

$4.53

13

BOLT, FR. FORK

51450-MEL-003

Unavailable

14

NUT, LOCK

51451-MEL-003

$10.08

15

PLATE B, ADJUSTING

51453-MCJ-751

Unavailable

16

RING, STOPPER

51455-MW4-003

$12.19

17

RING, STOPPER

51456-MCJ-751

Unavailable

18

SEAL SET, FR. FORK

51490-MEJ-003

$22.47

19

LABEL

51496-MCJ-751

$4.78

20

FORK ASSY., L. FR.

51500-MEL-003

Unavailable

21

PIPE, L. SLIDE

51525-MEL-003

Unavailable

22

WASHER, SPECIAL (10MM)

52442-KA3-711

$2.41

23

PLATE, SPRING ADJUSTER

53702-MCJ-751

Unavailable

24

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

25

BOLT, SOCKET (10X35)

90126-MR7-003

$16.38

26

DUST SEAL This part replaces 91254-MEJ-003.

91254-MEJ-013

$12.93

27

O-RING (10.8X2.4)

91255-MCJ-751

$2.38

28

O-RING (23.3X2.4) This part replaces 91256-MCJ-751.

91356-KFG-003

$2.52

29

O-RING (9.5X1.5)

91257-MCJ-751

$1.95

30

O-RING (42.2X2.4)

91258-GF4-003

$5.90
