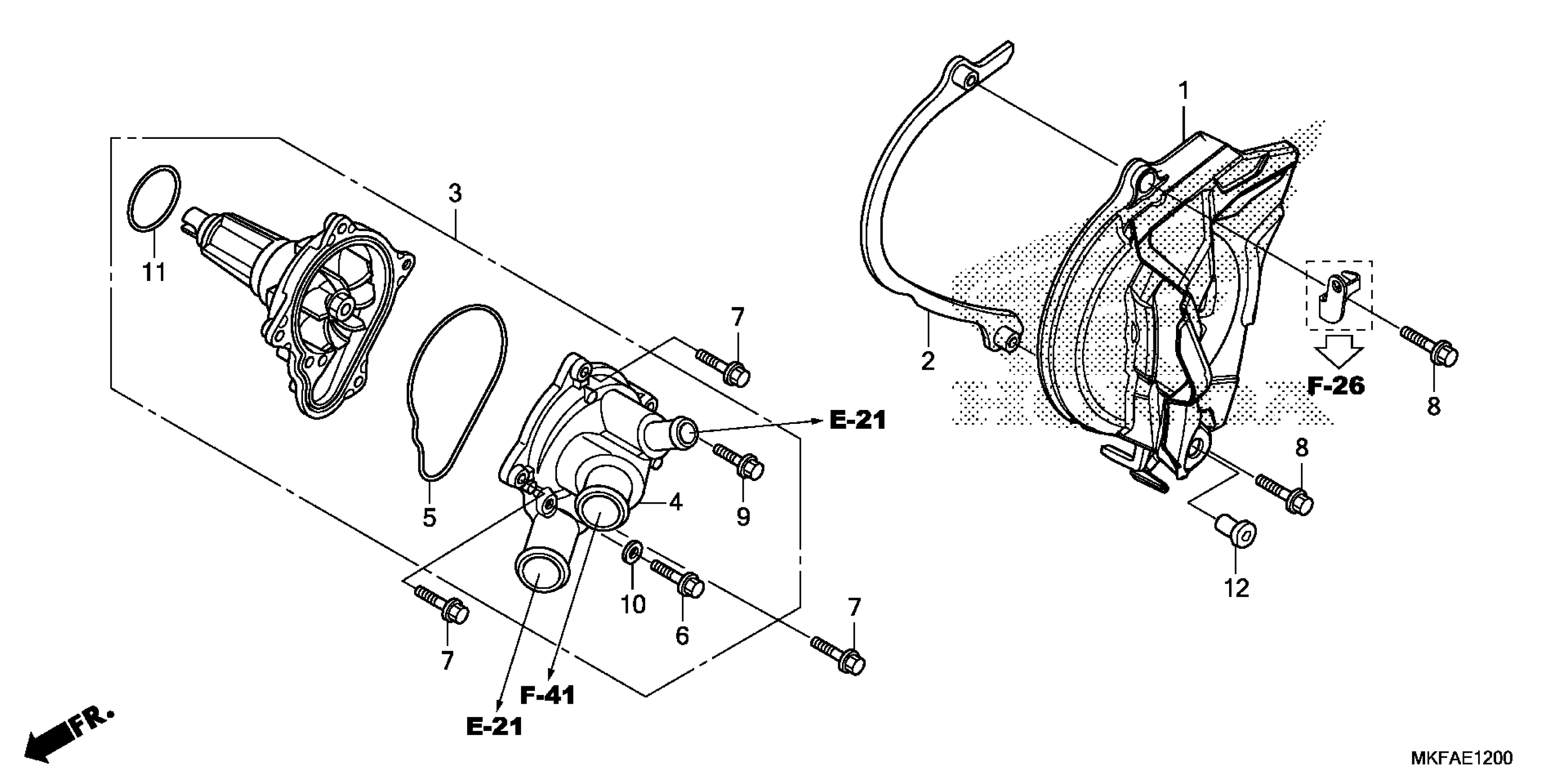

Honda CBR1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC775-KK200001 TO JH2SC775-KK299999 WATER PUMP Diagram

#

Description

Price

1

COVER, L. RR.

11350-MKF-D40

$19.74

2

PLATE, DRIVE CHAIN GUIDE

11355-MFL-000

$7.50

3

WATER PUMP ASSY. This part replaces 19200-MFL-305.

19200-MFL-315

$177.40

4

COVER, WATER PUMP

19220-MFL-000

$97.28

5

GASKET, WATER PUMP COVER

19226-MFL-000

$5.96

6

BOLT, FLANGE (6X30) (CT200)

90003-HN2-000

$1.49

7

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.92

8

BOLT, FLANGE (6X25)

90022-MKF-D40

$2.70

9

BOLT, FLANGE (6X25)

90121-MV9-670

$2.92

10

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.92

11

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

$2.92

12

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53
