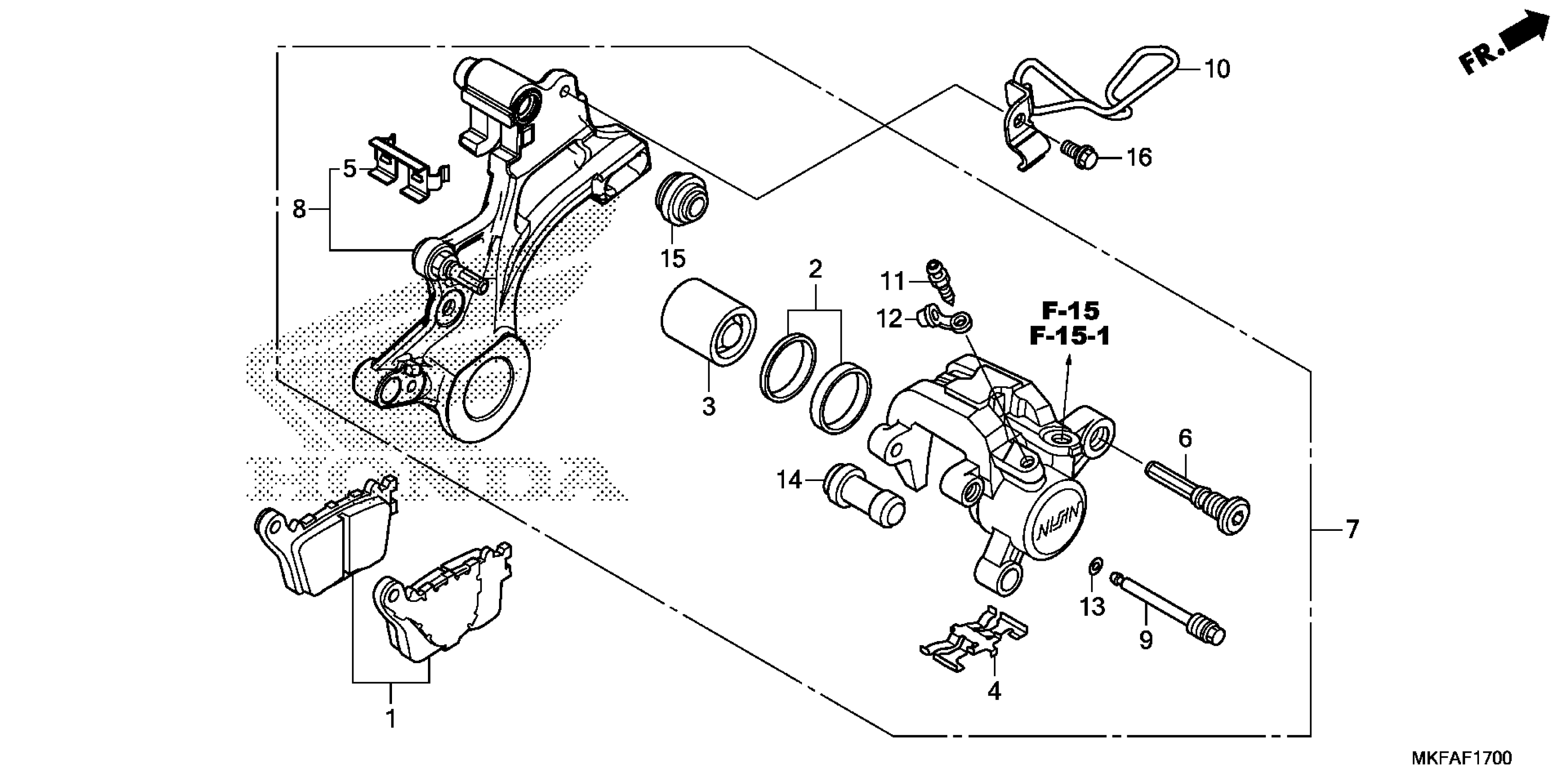

Honda CBR1000RAAC (19) MOTORCYCLE, JPN, VIN# JH2SC775-KK200001 TO JH2SC775-KK299999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MEL-D23

$51.51

SEAL SET, PISTON

06451-166-405

$11.96

PISTON

43107-MEL-D21

$21.12

SPRING, PAD

43108-MEL-D21

$3.00

RETAINER

43112-MEL-D21

$5.03

BOLT, PIN

43131-KW3-006

$9.48

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MKF-D41

$307.66

BRACKET SUB-ASSY., RR.

43190-MKF-D41

$137.63

PIN, HANGER

43215-KZ4-J41

Unavailable

GUIDE, RR. BRAKE HOSE

43319-MKF-D40

$14.00

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

BOLT, FLANGE (6X12)

90021-GHB-620

$2.06
