Description

Price

1

CLAMP, PIPE

11152-KS4-003

$6.80

2

CLAMP B, SENSOR WIRE

38514-MEJ-J00

$2.09

4

SENSOR, FR. WHEEL SPEED

38520-MFL-D01

$169.01

6

GUIDE, FR. SENSOR WIRE

38525-MFJ-A50

$11.87

7

VALVE ASSY., CLAMP IN

42755-MKA-D81

$15.22

8

O-RING

42758-MKA-D81

$1.41

9

AXLE, FR. WHEEL

44301-MCJ-000

$84.68

10

COLLAR, R. FR. WHEEL SIDE

44311-MFL-000

$9.89

11

COLLAR, L. FR. WHEEL SIDE

44312-MFL-000

$7.49

12

RING, FR. PULSER (TYPE2)

44515-MKF-D40ZB

$28.38

14

COLLAR, FR. WHEEL DISTANCE

44620-MCJ-000

$19.35

15

WHEEL SUB-ASSY., FR. (TYPE2)

44650-MKF-D40ZD

$877.04

16

TIRE (120/70ZR17) This part replaces 44711-MKF-D41.

44711-MKF-D45

$235.31

16

TIRE (120/70ZR17) This part replaces 44711-MKF-D42.

44711-MKF-D44

Unavailable

17

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.28

17

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.93

17

WEIGHT, BALANCE (20G)

44723-MGH-H21

$3.75

18

DISK, R. FR. BRAKE

45120-MKF-D41

$561.15

20

DISK, L. FR. BRAKE

45220-MKF-D41

$561.15

22

BOLT, FLANGE (6X14)

90013-GHB-620

$2.15

23

BOLT, BRAKE DISK (6X17)

90106-MFL-D20

$2.29

24

BOLT, TORX (5X10)

90131-KFK-630

$2.80

25

BOLT, FR. AXLE

90306-MFL-D00

$14.01

27

BEARING, RADIAL BALL (6005)

91052-MCF-003

$13.38

28

DUST SEAL (31X47X7)

91253-MFL-003

$6.05

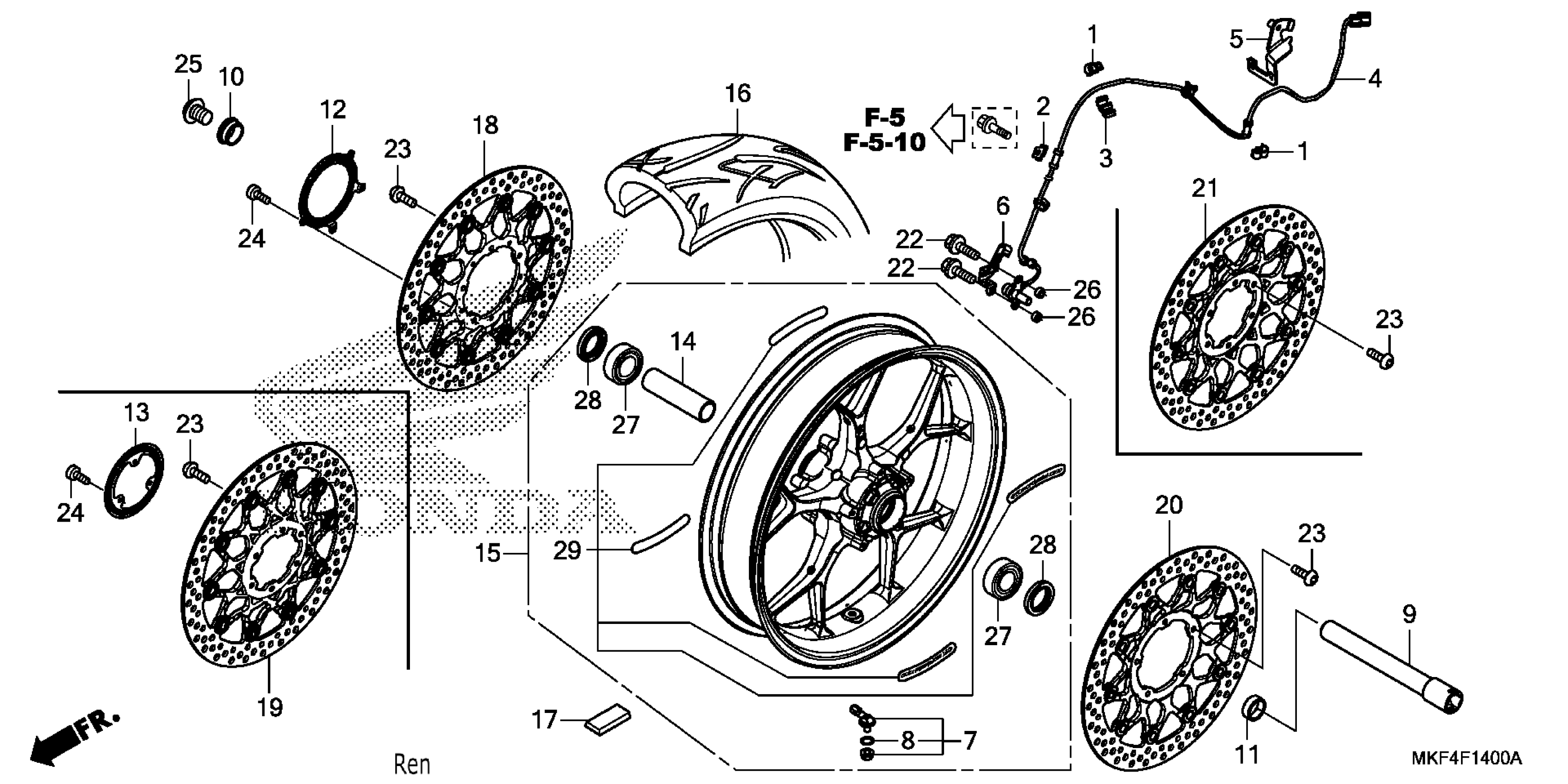

Honda CBR1000RAAC (18) MOTORCYCLE, JPM, VIN# JH2SC775-JK100001 FRONT WHEEL Diagram
