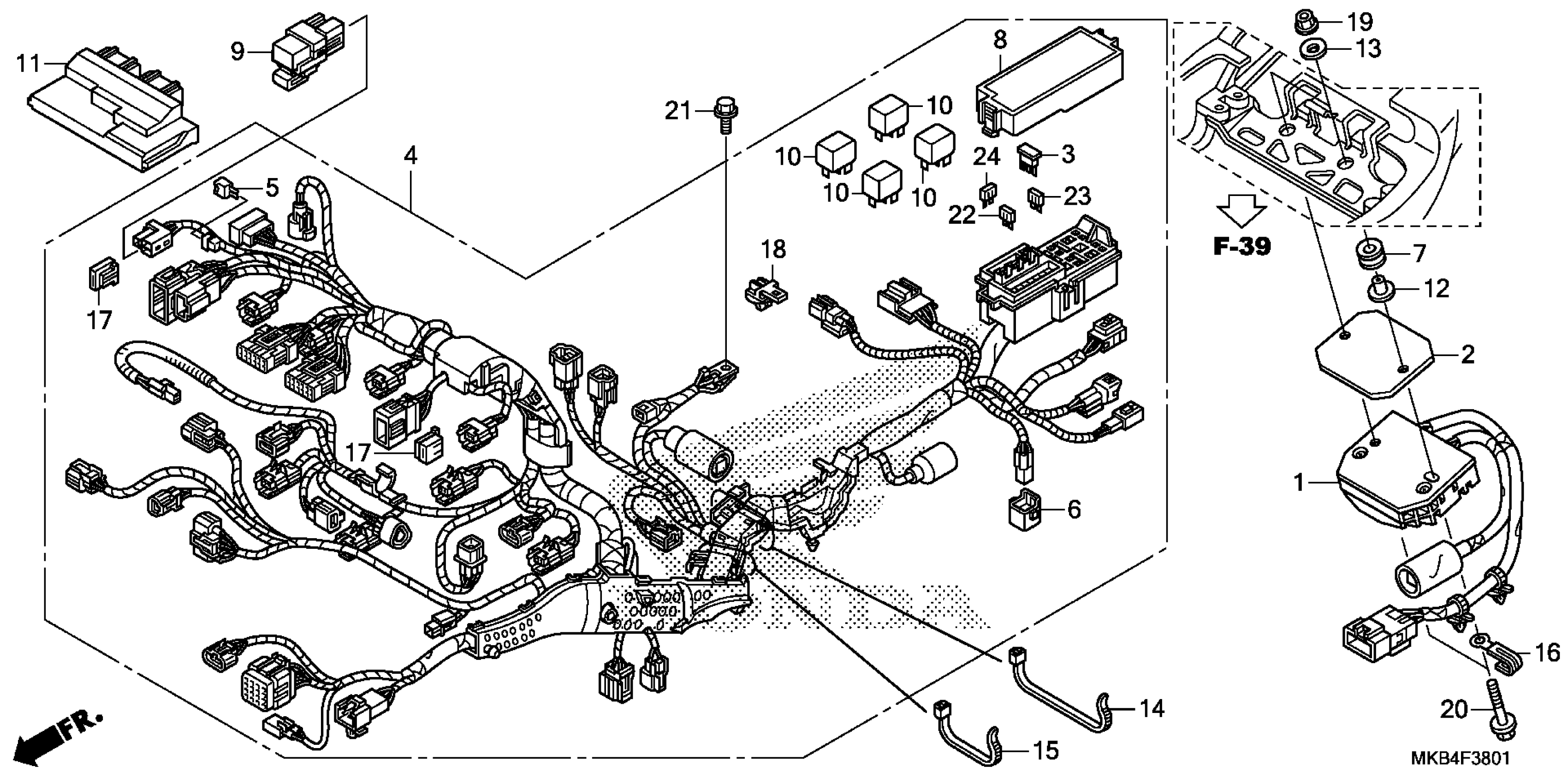

Honda CBR1000RAAC (16) MOTORCYCLE, JPN, VIN# JH2SC598-GK700001 WIRE HARNESS (2) Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MFL-D01

Unavailable

2

SPACER, REGULATOR RECTIFIER

31605-MCR-D00

$9.99

3

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

4

WIRE HARNESS

32100-MGP-940

$1,350.31

5

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$14.77

6

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.18

7

GROMMET A, TUBE

36037-657-000

$6.18

8

COVER (UPPER)

38252-MFJ-D01

$10.32

9

RELAY ASSY., POWER (MICRO ISO 5P) (OMRON)

38500-MGP-D01

$20.10

10

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.45

11

PGM-FI UNIT

38770-MGP-L82

$1,073.43

12

COLLAR, RR. EX. PROTECTOR

50609-MFF-D00

$4.44

13

WASHER (18MM) This part replaces 90482-567-000.

90581-831-650

$1.72

13

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.72

13

WASHER (18MM)

90581-831-650

$1.72

14

BAND, WIRE HARNESS

90620-SB2-003

$25.84

15

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

16

CLIP (2X70)

91413-679-000

$8.51

17

HOLDER, BRACKET (RED)

91554-SM4-003

$7.75

18

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.35

19

NUT, FLANGE (6MM)

94050-06000

$0.60

20

BOLT, FLANGE (6X35)

95701-06035-00

$1.88

21

BOLT, FLANGE (6X12)

96300-06012-00

Unavailable

22

FUSE, MINI (10A)

98200-41000

$1.22

23

FUSE, MINI (20A)

98200-42000

$1.12

24

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
