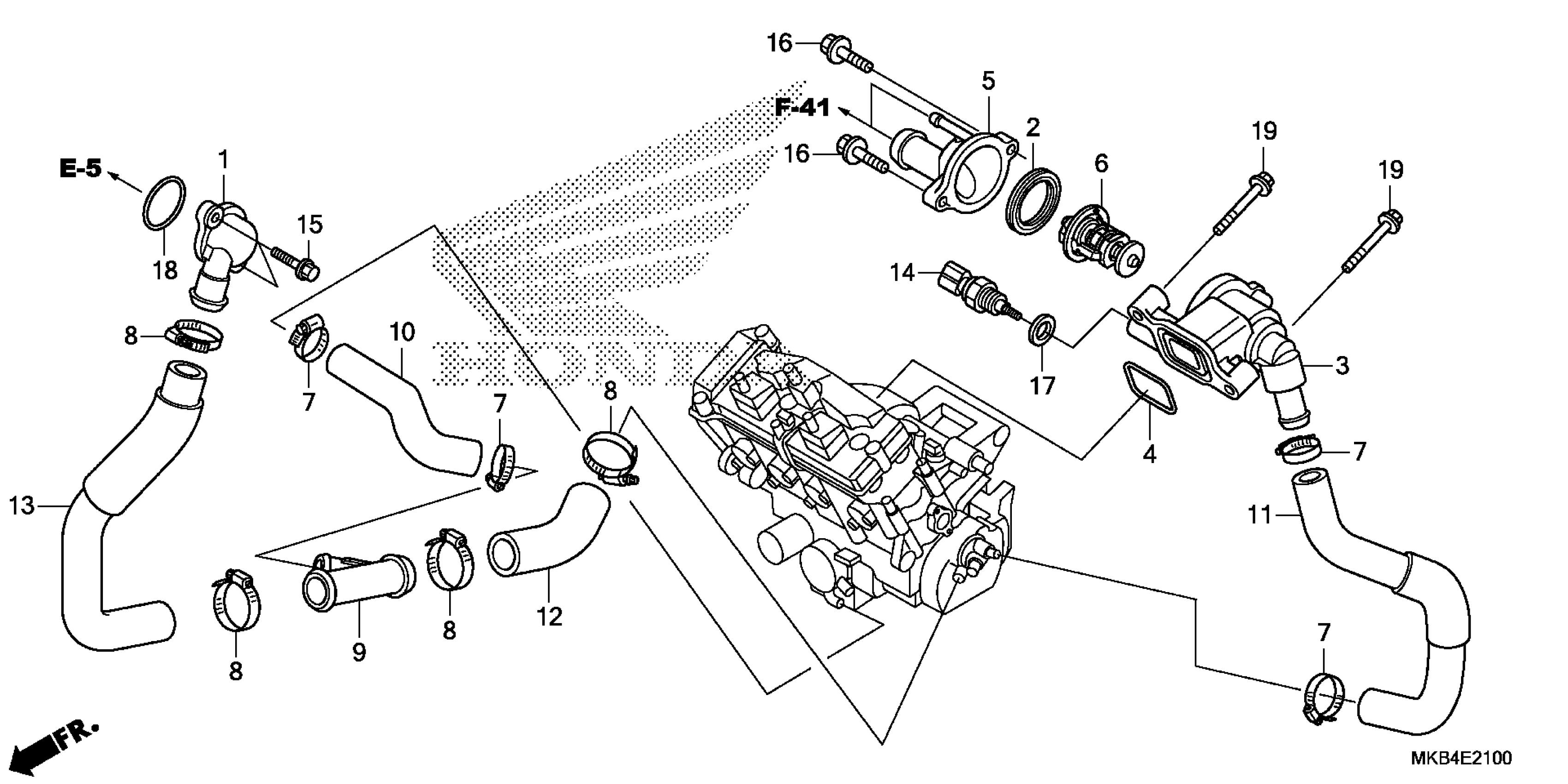

Honda CBR1000RAAC (16) MOTORCYCLE, JPN, VIN# JH2SC598-GK700001 THERMOSTAT Diagram

JOINT, WATER

19060-MFL-000

$35.59

RUBBER, THERMOSTAT

19305-KV3-010

$5.64

CASE, THERMOSTAT

19310-MFL-305

$41.74

GASKET, THERMOSTAT CASE

19312-MFG-D00

$2.85

COVER, THERMOSTAT

19315-MFL-000

$43.39

THERMOSTAT

19320-MFJ-D01

$30.94

CLAMP, WATER HOSE (25MM)

19504-KY1-003

Unavailable

CLAMP, WATER HOSE (35MM)

19504-MGP-000

$8.57

JOINT, HOSE (THREE-WAY)

19514-MFJ-D00

$11.18

HOSE, OIL COOLER

19526-MFL-000

$4.96

HOSE, BYPASS

19531-MGP-D60

$20.93

HOSE A, CYLINDER

19541-MFL-000

$8.12

HOSE B, CYLINDER

19542-MGP-D60

$20.52

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$27.61

BOLT, FLANGE (6X20)

90010-GHB-650

$1.41

BOLT, FLANGE (6X23) (CT200)

90018-ZE1-000

$1.59

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.38

O-RING (34X2)

91301-MFL-000

$2.16

BOLT, FLANGE (6X35)

95701-06035-00

$1.71
