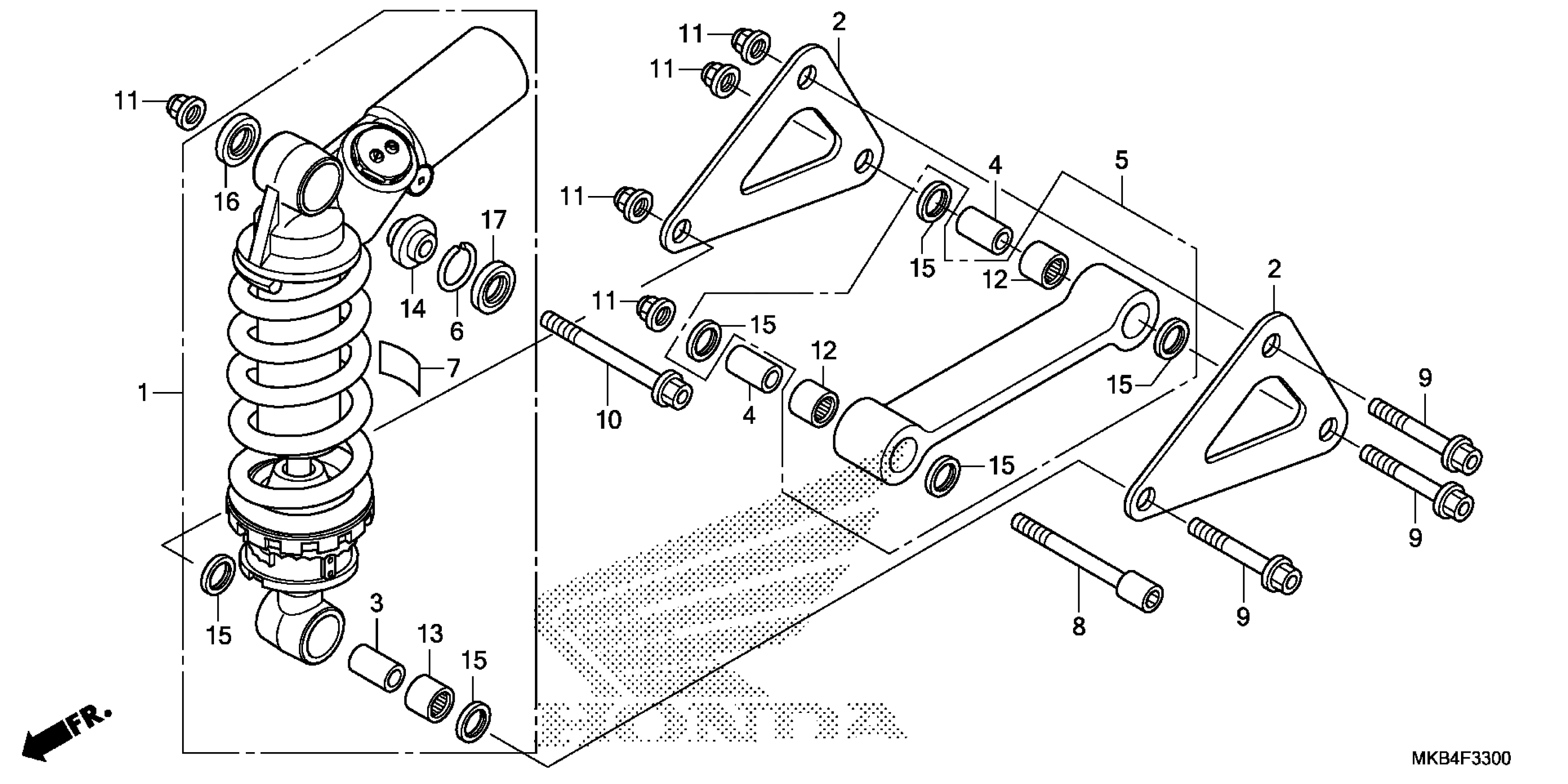

Honda CBR1000RAAC (16) MOTORCYCLE, JPN, VIN# JH2SC598-GK700001 REAR SHOCK ABSORBER (1) Diagram

CUSHION ASSY., RR. (COO) (SHOWA)

52400-MGP-306

$1,657.59

PLATE, CUSHION ARM

52461-MFL-000

$21.05

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

COLLAR, CUSHION CONNECTING ROD

52463-MAL-G00

$11.67

ROD SUB-ASSY., CUSHION CONNECTING

52475-MFL-000

$99.36

RING, STOPPER (SHOWA)

52487-KA4-831

$3.92

LABEL, RR. DAMPER

87516-MBL-610

$4.31

BOLT, SOCKET (10X70)

90107-MFJ-D00

$8.05

BOLT, FLANGE (10X62)

90121-MFL-000

$4.11

BOLT, FLANGE (10X75)

90132-MEL-000

$6.96

NUT, U (10MM) NUT, SELF-LOCK (10MM)

90304-GE8-003

$3.67

BEARING, NEEDLE (KOYO)

91071-KV3-005

$24.88

BEARING, NEEDLE (17X24X20) (NTN)

91072-KT7-003

$20.20

BEARING, SPHERICAL (10)

91074-MBR-722

$21.61

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21

DUST SEAL, RR. CUSHION PIVOT

91351-KZ3-731

$4.87

DUST SEAL, SHOCK (16X26X3)

91351-MAC-671

$5.78
