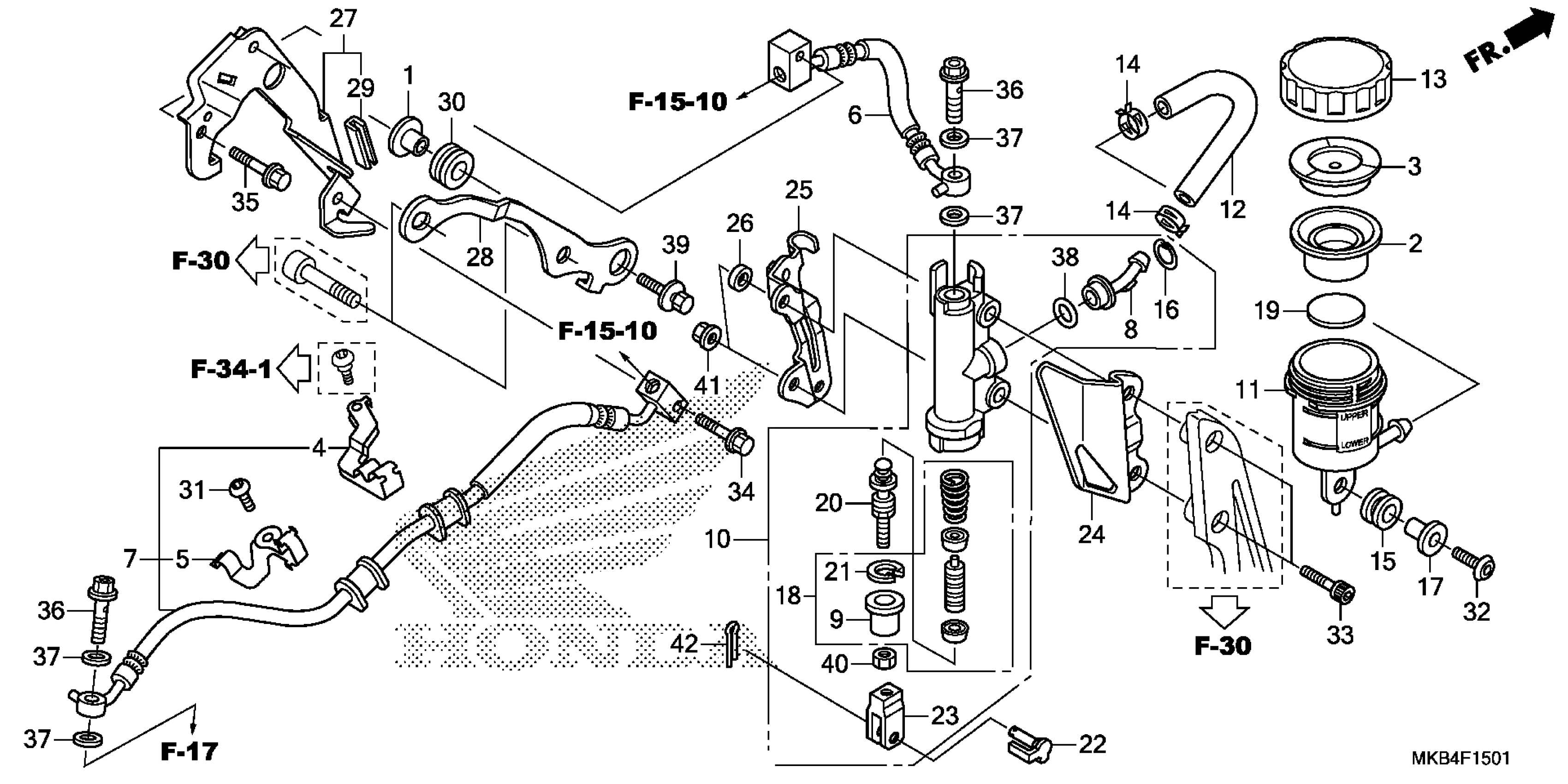

Honda CBR1000RAAC (16) MOTORCYCLE, JPN, VIN# JH2SC598-GK700001 REAR BRAKE MASTER CYLINDER (2) Diagram

COLLAR, FUEL TANK SETTING

17626-KA4-700

$6.71

DIAPHRAGM (NISSIN)

22888-MR7-006

$15.17

PLATE, DIAPHRAGM (NISSIN)

22890-MR7-006

$11.64

CLAMP, RR. BRAKE HOSE

43155-MFL-D00

$8.84

CLAMP B, RR. BRAKE HOSE

43157-MFL-D00

$5.75

HOSE A, RR. BRAKE

43310-MFL-D01

$39.34

HOSE B, RR. BRAKE

43313-MFL-D01

$61.07

CONNECTOR, MASTER CYLINDER

43503-MFL-006

$6.23

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)

43510-MFL-305

$185.05

CUP, OIL

43511-MFL-D01

$20.92

HOSE, RR. MASTER CYLINDER

43512-MFL-006

$11.08

CAP, OIL CUP

43513-MFL-671

$39.79

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

RUBBER, OIL CUP MOUNTING

43516-HA2-000

$4.48

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.81

COLLAR (6.3X14)

43517-MFL-880

$3.67

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$46.51

FLOAT

43523-MFL-006

$3.13

ROD, PUSH

43530-MM5-006

$27.69

CIRCLIP

46182-MEL-D21

$1.93

PIN, BRAKE ROD

46503-MFL-000

$13.26

JOINT, BRAKE ROD

46504-MFL-000

$13.13

GUARD, R. STEP

50607-MFL-000

$29.79

STAY, STEP HEAT GUARD

50608-MFL-000

$11.51

COLLAR (6.5X11X3)

50618-KE8-000

$2.75

STAY A, RR. BRAKE PIPE

57417-MFL-D00

$14.72

STAY B, RR. BRAKE PIPE

57418-MFL-D00

$4.67

RUBBER, PROTECTOR

64121-MER-D00

$1.49

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

SCREW, PAN (5X15)

90113-MCJ-000

$2.23

BOLT, SPECIAL (6X25)

90115-KTB-000

$2.23

BOLT, SOCKET (6X32)

90128-MFL-000

$2.11

BOLT, FLANGE (6X25)

90141-MFL-D00

$2.49

BOLT, FLANGE (6X20)

90142-MFL-D00

$2.33

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

O-RING (14.8X2.4)

91212-422-006

$2.56

BOLT-WASHER (6X20)

93404-06020-07

$1.55

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49
