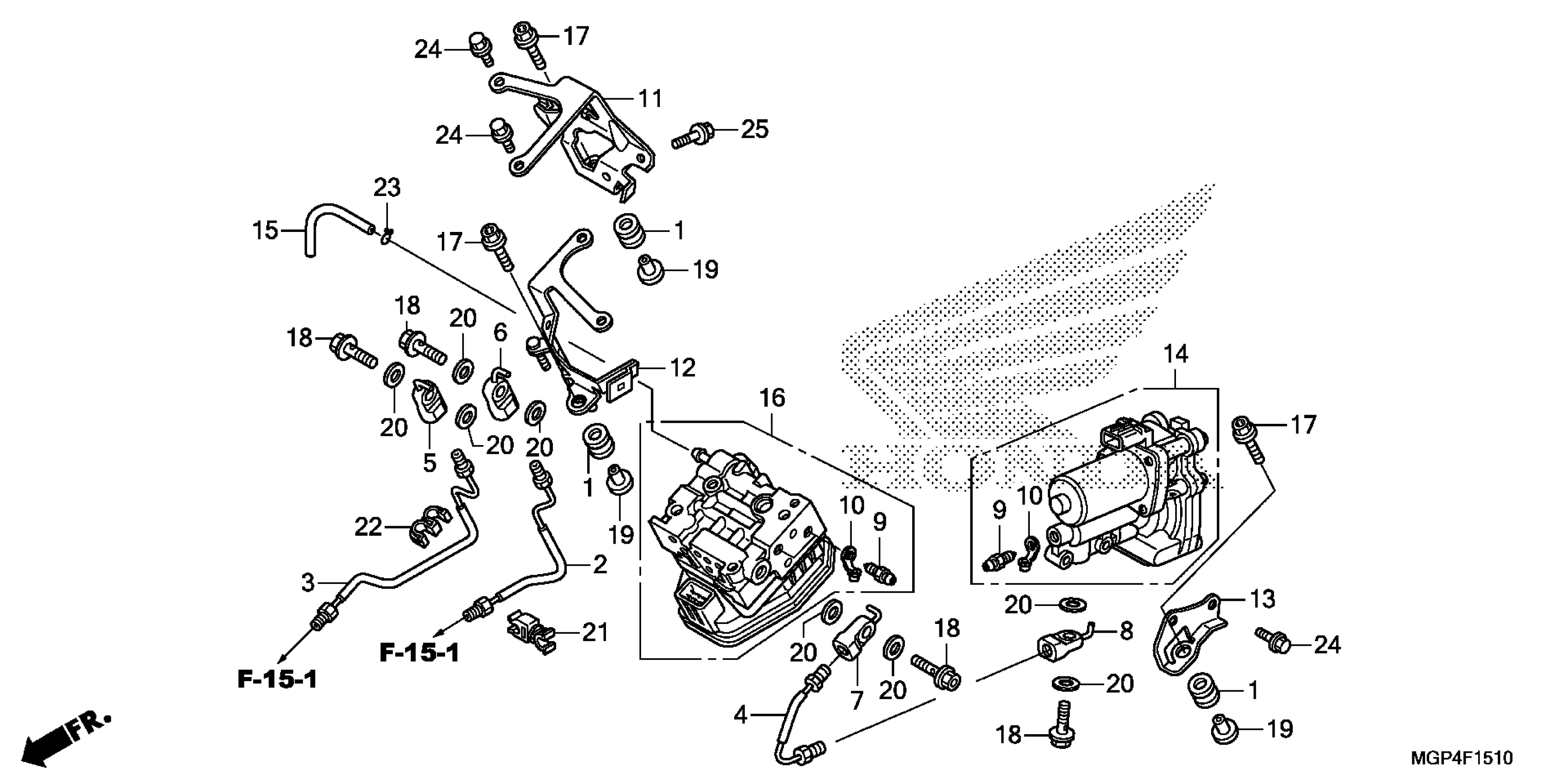

Honda CBR1000RAAC (12) CBR1000RA, JPN, VIN# JH2SC598-CK300001 TO JH2SC598-CK399999 REAR POWER UNIT@REAR VALVE UNIT Diagram

RUBBER A, PROTECTOR

18320-196-000

$2.43

PIPE A, RR. BRAKE

43311-MFL-D00

$8.12

PIPE B, RR. BRAKE

43312-MFL-D00

$11.42

PIPE C, RR. BRAKE

43314-MFL-D00

$10.42

JOINT, BRAKE PIPE

43321-MFL-D01

$27.59

JOINT B, RR. BRAKE PIPE

43322-MFJ-A51

$19.48

JOINT, BRAKE PIPE

43322-MFL-D01

$27.59

JOINT, BRAKE PIPE

43323-MFL-D01

$27.58

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

STAY A, RR. VALVE UNIT

50406-MFL-D00

$22.84

STAY B, RR. VALVE UNIT

50407-MFL-D00

$27.25

STAY, RR. POWER UNIT

50408-MFL-D00

$5.26

MODULATOR ASSY., POWER UNIT

57100-MFJ-A51

$1,443.80

TUBE A, DRAIN

57585-MGP-D10

$2.99

MODULATOR ASSY., RR. VALVE UNIT

57600-MFJ-A51

$1,151.80

BOLT, SOCKET (6X20)

90003-KN8-730

$3.01

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

COLLAR, HEAD SIDE COVER

90502-KGB-610

$1.93

WASHER, OIL BOLT

90545-300-000

$3.72

CLAMP, BRAKE PIPE

90651-MFL-D01

$2.88

CLAMP, BRAKE PIPE

90661-MCA-003

$1.96

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.59

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

BOLT, FLANGE (6X18)

96001-06018-00

$1.64
