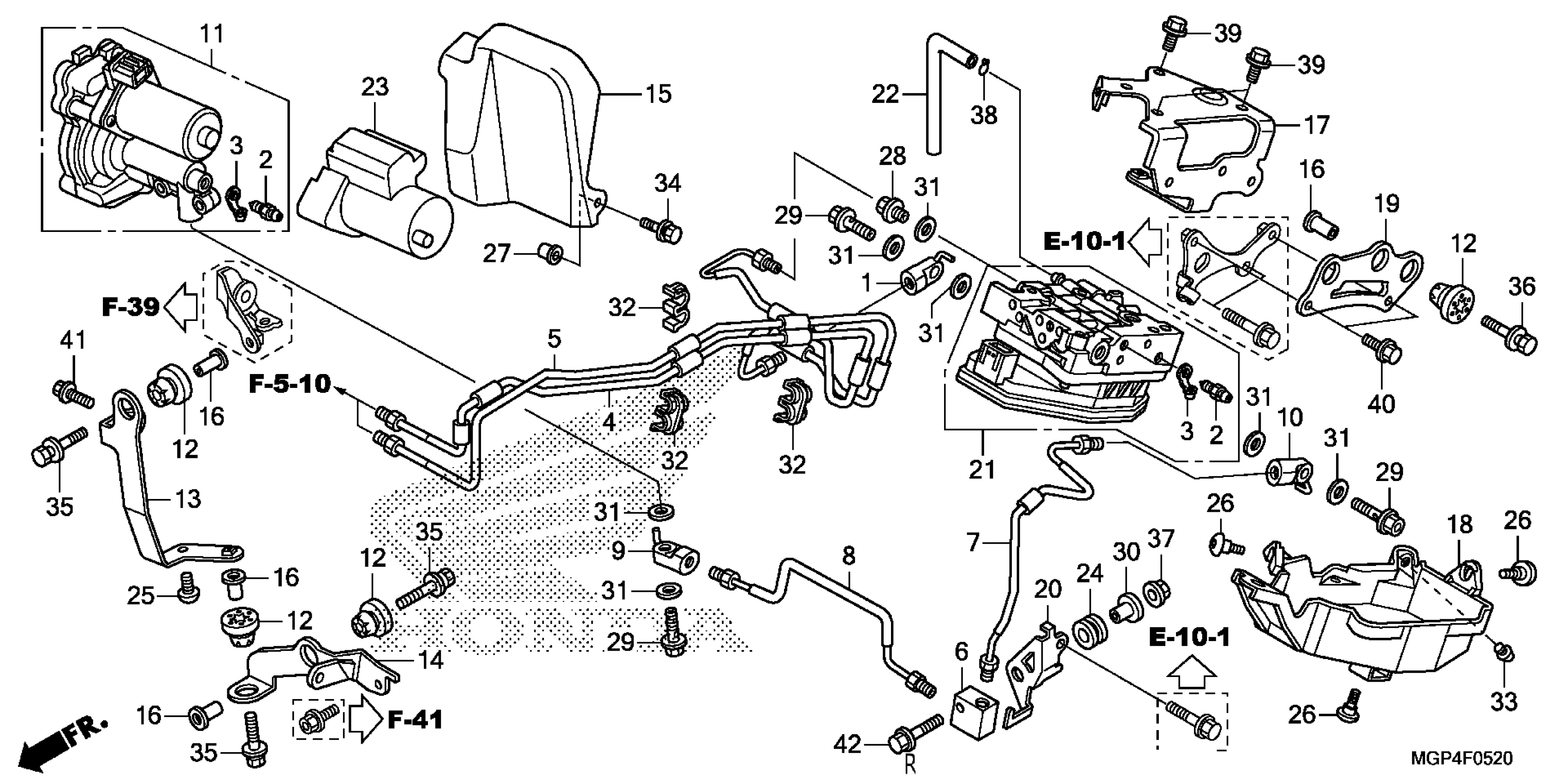

Honda CBR1000RAAC (12) CBR1000RA, JPN, VIN# JH2SC598-CK300001 TO JH2SC598-CK399999 FRONT POWER UNIT@FRONT VALVE UNIT Diagram

JOINT, BRAKE PIPE

43322-MFL-D01

$30.30

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PIPE A, FR. BRAKE

45125-MGP-D10

$53.30

PIPE B, FR. BRAKE

45126-MGP-D10

$47.95

JOINT, PIPE (TWO-WAY)

45128-MEJ-D01

$12.48

PIPE C, FR. BRAKE

45128-MFL-D00

$18.38

PIPE D, FR. BRAKE

45129-MFL-D00

$15.21

JOINT A, FR. BRAKE PIPE

45321-MFJ-A51

$21.39

JOINT B, FR. BRAKE PIPE

45322-MFJ-A51

$21.39

MODULATOR ASSY., POWER UNIT

57100-MFJ-A51

$1,585.59

RUBBER, MOUNT

57101-SJA-003

$8.72

STAY, FR. POWER UNIT MIDDLE

57402-MFL-D00

$18.44

STAY, FR. POWER UNIT (LOWER)

57403-MFL-D00

$11.34

PROTECTOR, POWER UNIT

57405-MFL-D00

$62.34

COLLAR, FR. POWER UNIT MOUNTING

57409-MFJ-A50

$3.36

STAY A, VALVE UNIT

57414-MFL-D00

$18.97

COVER, VALVE UNIT

57415-MFL-D00

$15.10

STAY B, VALVE UNIT

57416-MFL-D00

$6.05

STAY, FR. BRAKE PIPE JOINT

57419-MFL-D00

$5.00

MODULATOR ASSY., FR. VALVE UNIT

57500-MFJ-A51

$1,264.95

TUBE A, DRAIN

57585-MGP-D10

$3.28

COVER, MODULATOR MOTOR ASSY.

57801-MFL-D00

$26.52

RUBBER, SIDE COVER

83545-KCJ-690

$1.49

SCREW, PAN (6X10)

90105-MM4-000

$2.21

SCREW, PAN (6X14)

90106-KBV-000

$3.90

NUT, WELL (5MM)

90111-MFL-D01

$3.51

BOLT, OIL (10X10.6)

90145-MCA-971

$6.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

COLLAR, HEAD SIDE COVER

90502-KGB-610

$2.11

WASHER, OIL BOLT

90545-300-000

$3.99

CLAMP, BRAKE PIPE

90661-MCA-003

$2.15

PLUG, CONE

90899-385-000

$3.53

BOLT-WASHER (5X14)

93404-05014-00

$1.49

BOLT-WASHER (6X30)

93404-06030-00

$1.49

BOLT-WASHER (6X30)

93404-06030-07

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

CLIP, TUBE (B7) CLIP, TUBE (B6.5)

95002-02070

$1.80

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

BOLT, FLANGE (6X18)

96001-06018-00

$1.80

BOLT, FLANGE (6X32)

96001-06032-07

$1.54
