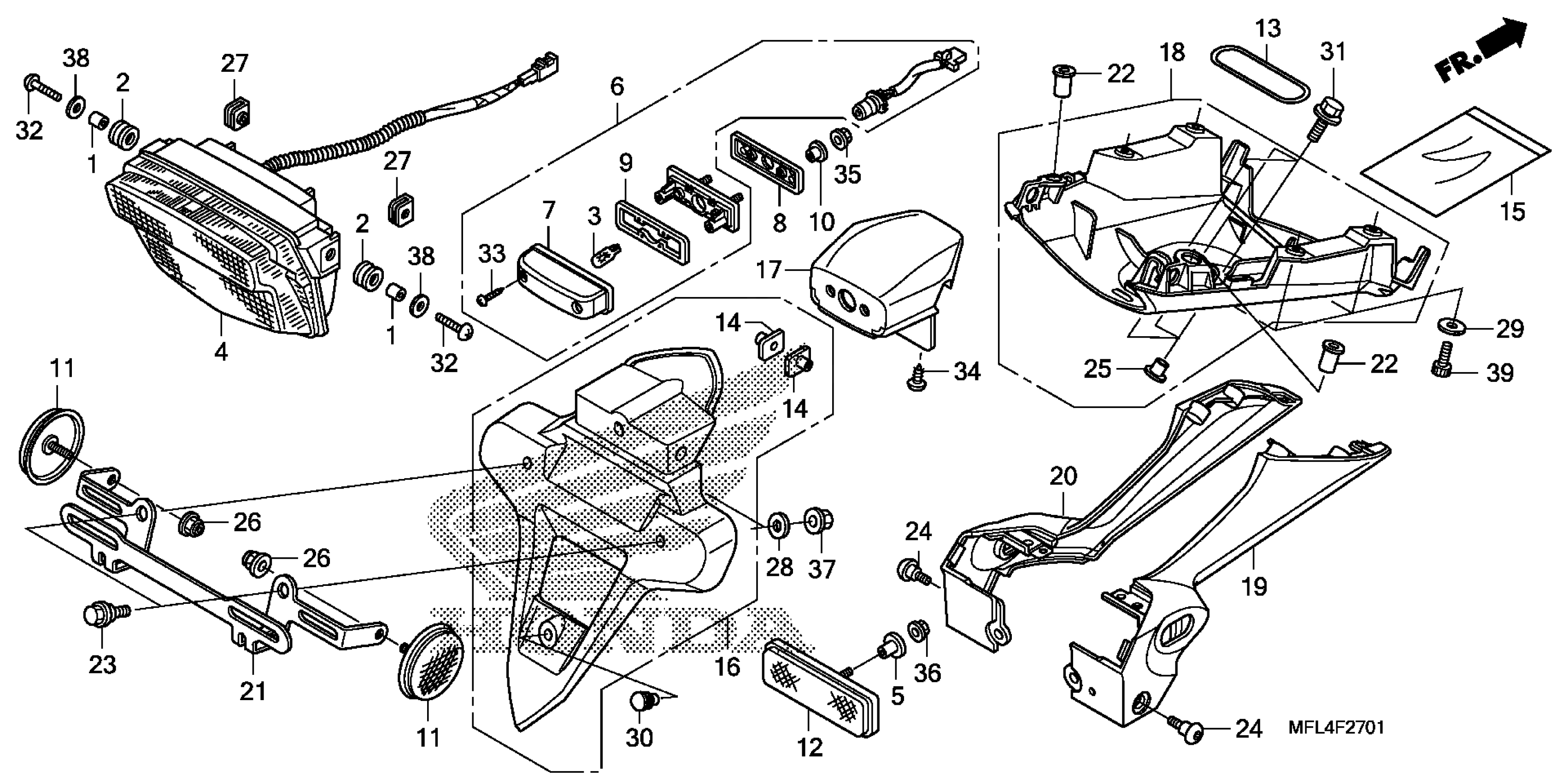

Honda CBR1000RAAC (11) MOTORCYCLE, JPN, VIN# JH2SC598-BK200001 TAILLIGHT (2) Diagram

COLLAR (5MM)

18295-GW0-920

$2.84

RUBBER, MOUNTING

19639-GBC-000

$1.49

BULB (12V 5W) (STANLEY)

33301-SA0-741

$3.80

TAILLIGHT UNIT (COO) This part replaces 33701-MFL-A21.

33701-MFL-315

$259.51

TAILLIGHT UNIT (COO) This part replaces 33701-MFL-305.

33701-MFL-315

$259.51

TAILLIGHT UNIT (COO)

33701-MFL-315

$259.51

COLLAR, TAILLIGHT SETTING

33715-MC4-610

$4.59

LIGHT ASSY., LICENSE (12V 5W) This part replaces 33720-MFL-305.

33720-MFL-641

$97.59

LIGHT ASSY., LICENSE (12V 5W)

33720-MFL-641

$97.59

COVER, LICENSE

33721-GET-671

$19.11

RUBBER, LICENSE LIGHT

33728-MFL-000

$2.97

GASKET, LENS

33729-MCZ-003

$9.48

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

$2.39

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX

33741-MCJ-G00

Unavailable

BAND, U-LOCK

50290-MZ7-000

$19.92

NUT, SPECIAL (6MM)

61304-HB3-003

$2.78

BAG, SERVICE BOOK

77251-GR1-000

$4.30

BRACKET, LICENSE LIGHT

80100-MFL-A20

$17.49

COVER, LICENSE LIGHT

80107-MFL-670

$8.74

COWL, RR. CENTER

80114-MFL-D20

$75.08

STAY, R. LICENSE LIGHT

80115-MFL-D20

$28.15

STAY, L. LICENSE LIGHT

80116-MFL-D20

$29.79

BRACKET, NUMBER PLATE

84700-MFL-670

$17.70

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

BOLT, FLANGE (6MM)

90111-187-000

$5.59

SCREW, PAN (6X14)

90117-MFL-D20

$2.05

COLLAR (6X4)

90127-KF0-770

$3.42

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

NUT, CLIP (5MM)

90312-MT3-000

$4.57

WASHER (6MM)

90485-MB2-000

$1.91

WASHER, PLAIN (6MM)

90525-428-900

$1.92

PLUG, CONE

90899-MFJ-A00

$3.24

BOLT-WASHER (6X16)

93404-06016-00

$1.55

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

SCREW, TAPPING (4X16)

93901-24480

$1.49

SCREW, TAPPING (4X10)

93903-24280

$1.49

NUT, FLANGE (5MM)

94050-05000

$1.49

NUT, FLANGE (5MM)

94050-05070

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

BOLT, SOCKET (6X18)

96600-06018-07

$1.84
