Description

Price

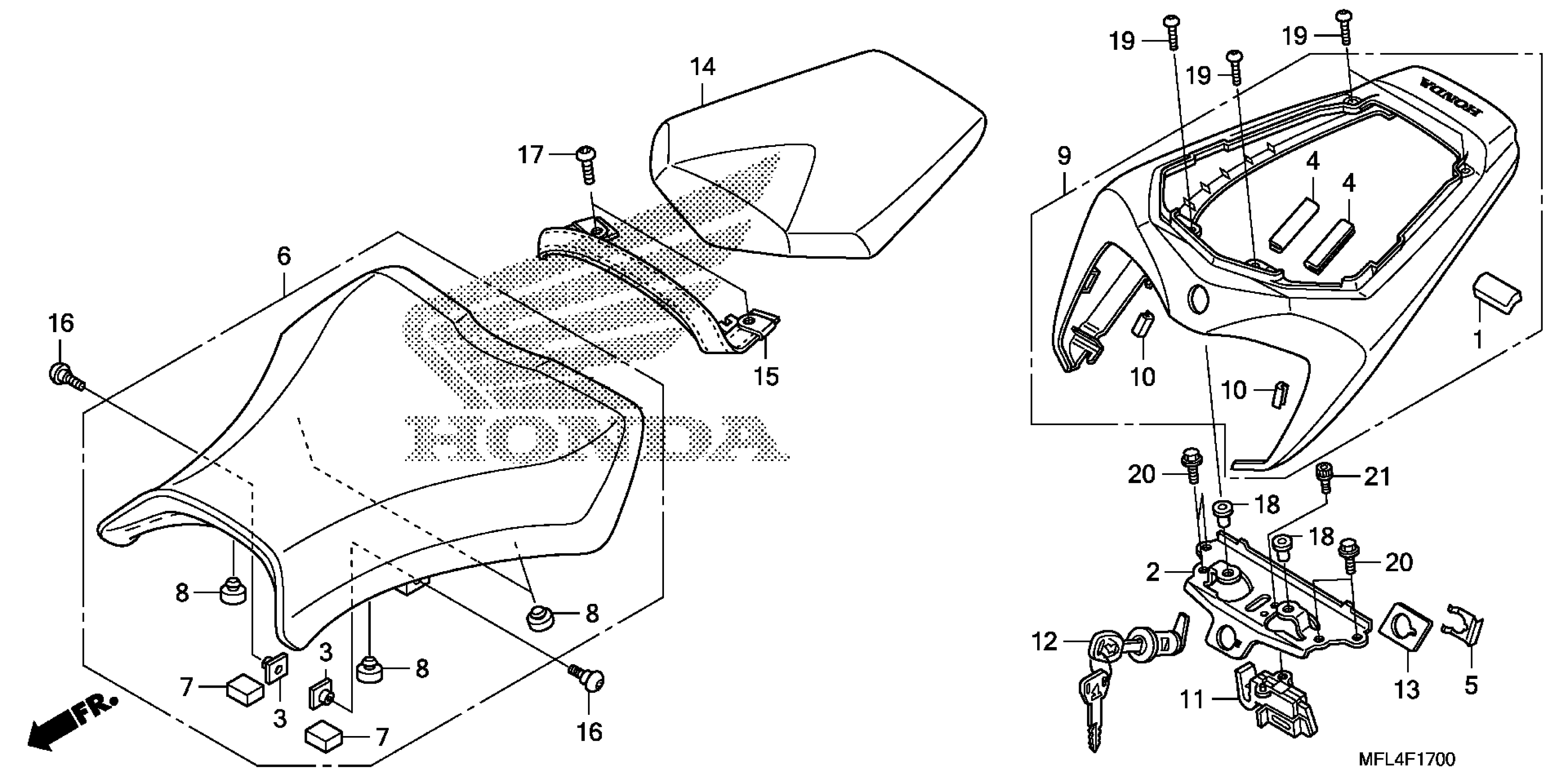

1

MAT A, L. FR. COVER

11353-KSV-J10

$2.12

2

PLATE, CROSS (UPPER)

50217-MFL-000

$28.50

3

NUT, HEADLIGHT SETTING

61304-162-013

$3.31

4

RUBBER, PROTECTOR

64122-MBB-300

$4.76

5

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.58

6

SEAT ASSY., SINGLE This part replaces 77100-MFL-003.

77100-MFL-013

$171.66

6

SEAT ASSY., SINGLE

77100-MFL-013

$171.66

7

CUSHION, SINGLE SEAT

77103-MFL-300

$1.69

8

RUBBER, SEAT CUSHION

77207-MEL-000

$3.16

9

COWL SET, RR. SEAT (TYPE3) (WL)

77210-MFL-760ZD

Unavailable

10

PROTECTOR, RUBBER

77212-MFJ-D00

$1.60

11

HOOK, SEAT CATCH

77220-MEE-D01

$30.89

12

LOCK ASSY., SEAT

77225-MFJ-D01

$35.42

13

WASHER, SEAT LOCK This part replaces 77236-GW0-000.

77236-GZ5-000

$2.80

13

WASHER, SEAT LOCK

77236-GZ5-000

$2.80

14

SEAT ASSY., PILLION

77300-MFL-003

$156.41

15

SEAT BELT

77310-MFL-000

$19.85

16

SCREW, SPECIAL (6X8)

90104-MJ0-660

$3.95

17

BOLT, SPECIAL (6X17)

90106-MFL-000

$1.96

18

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.31

19

SCREW, PAN (5X15)

90108-MFL-D20
