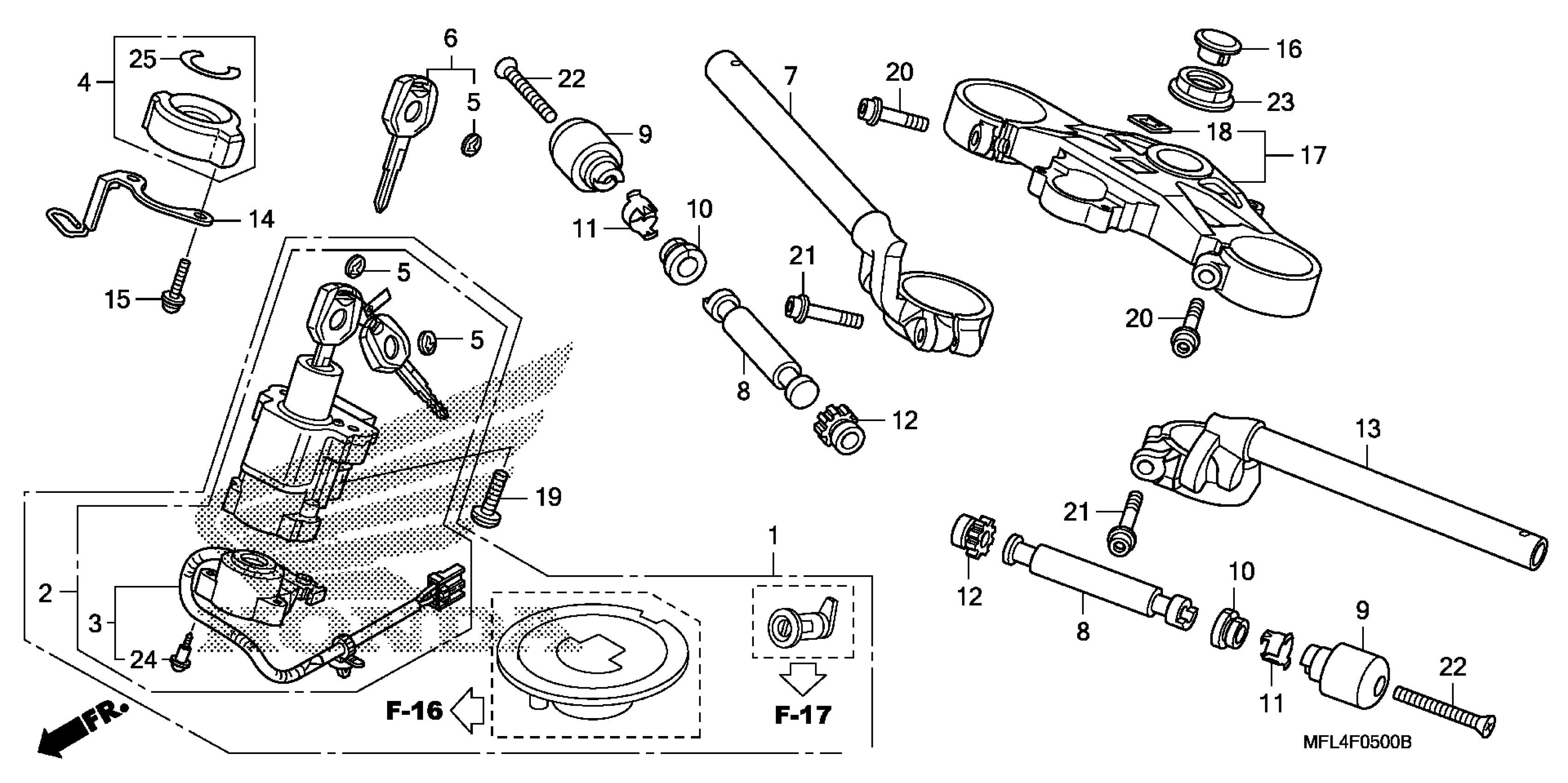

Honda CBR1000RAAC (11) MOTORCYCLE, JPN, VIN# JH2SC598-BK200001 HANDLEBAR@TOP BRIDGE Diagram

LOCK SET

35010-MFL-A00

$361.84

SWITCH ASSY., COMBINATION & LOCK

35100-MFL-A01

$170.61

BASE, CONTACT

35101-MFL-D01

$74.92

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

EMBLEM, KEY | (Optional).

35113-MFL-641

$3.90

KEY, BLANK | (Optional).

35121-MFL-670

$22.45

HANDLEBAR, R.

53100-MFL-000

$171.10

HANDLEBAR, R. This part replaces 53100-MFL-305.

53100-MFL-000

$171.10

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

WEIGHT, HANDLEBAR

53105-MEE-940

$17.82

RUBBER, HANDLE WEIGHT (B)

53107-MJ0-000

$3.77

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$5.14

RUBBER B, HANDLE WEIGHT

53109-MM5-000

$3.72

HANDLEBAR, L.

53150-MFL-000

$171.10

HANDLEBAR, L. This part replaces 53150-MFL-305.

53150-MFL-000

$171.10

STAY, CLUTCH CABLE

53191-MFL-000

$10.10

SCREW-WASHER (5X25)

53192-MFL-000

$1.85

CAP, STEERING NUT

53232-MFL-010

$2.38

BRIDGE, FORK TOP

53300-MFL-000

$227.36

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.62

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

BOLT, FLANGE SOCKET (8X40)

90124-MFL-000

$3.57

BOLT, FLANGE SOCKET (8X40)

90140-MCJ-750

$3.24

SCREW, OVAL (6X60)

90191-KT7-750

$4.74

NUT, STEERING STEM

90304-MFL-000

$14.42

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84
