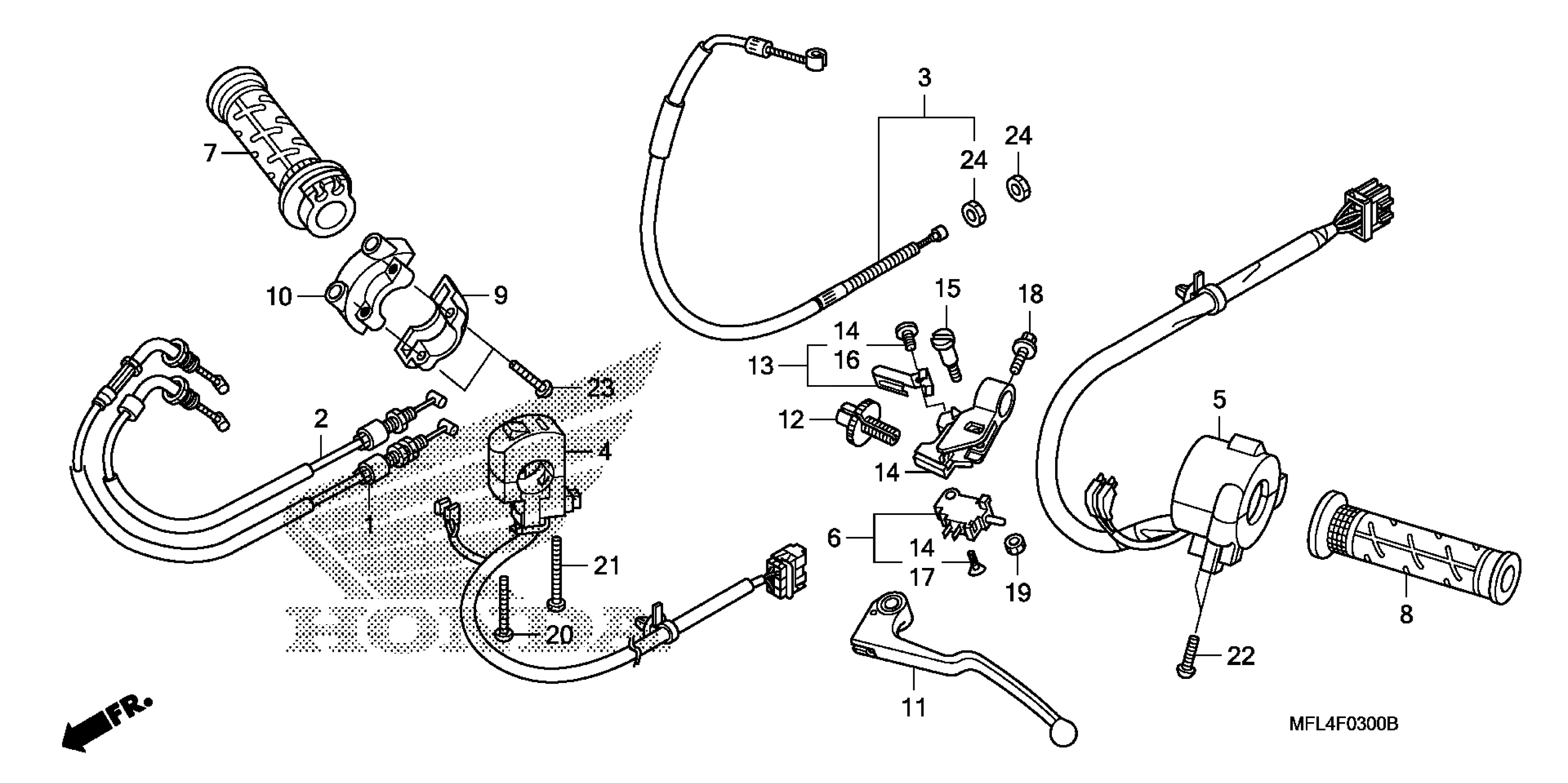

Honda CBR1000RAAC (11) MOTORCYCLE, JPN, VIN# JH2SC598-BK200001 HANDLE LEVER@SWITCH@CABLE Diagram

#

Description
Price

1

CABLE A, THROTTLE

17910-MFL-000

$25.90

2

CABLE B, THROTTLE

17920-MFL-000

$25.90

3

CABLE, CLUTCH

22870-MFL-000

$22.92

4

SWITCH ASSY., ENGINE STOP

35130-MFL-000

$57.13

5

SWITCH ASSY., TURN SIGNAL This part replaces 35200-MFL-670.

35200-MFL-671

$119.64

5

SWITCH ASSY., TURN SIGNAL

35200-MFL-671

$119.64

6

SWITCH SET, CLUTCH

35335-MCJ-751

$14.26

7

GRIP ASSY., THROTTLE

53140-MCF-000

$34.59

7

GRIP ASSY., THROTTLE This part replaces 53140-MCF-305.

53140-MCF-000

$34.59

8

GRIP, L. HANDLE

53166-MY9-890

$18.20

8

GRIP, L. HANDLE This part replaces 53166-MGF-305.

53166-MY9-890

$18.20

8

GRIP, L. HANDLE This part replaces 53166-MY9-305.

53166-MY9-890

$18.20

9

HOUSING, THROTTLE (UPPER) (UNDER)

53167-MV4-000

$37.48

10

HOUSING, THROTTLE (LOWER) (UPPER)

53168-MV4-000

$40.99

11

LEVER, L. HANDLE

53182-MCJ-750

$23.95

11

LEVER, L. HANDLE This part replaces 53182-MCJ-305.

53182-MCJ-750

$23.95

12

BOLT, CABLE ADJUSTING

53183-MCJ-750

$7.72

13

SPRING SET, CLUTCH LEVER

53190-MCJ-751

$4.15

14

BRACKET SET, CLUTCH LEVER

53195-MCJ-751

$25.50

15

BOLT, LEVER PIVOT

90122-MCJ-750

$4.80

16

SCREW, PAN (4X10)

90123-MCJ-751

$1.49

17

SCREW, FLAT (3X16)

90124-MCJ-752

$1.49

18

BOLT, FLANGE (6X20)

90126-MCJ-750

$1.89

19

NUT, U (6MM)

90301-MCJ-750

$2.26

20

SCREW, PAN (4X32)

93500-04032-0G

$1.49

21

SCREW, PAN (4X45)

93500-04045-0G

$1.49

22

SCREW, PAN (5X20)

93500-05020-0G

$1.49

23

SCREW, PAN (5X22)

93500-05022-0G

$1.49

24

NUT, HEX. (8MM)

94002-08000-0S

$1.49
